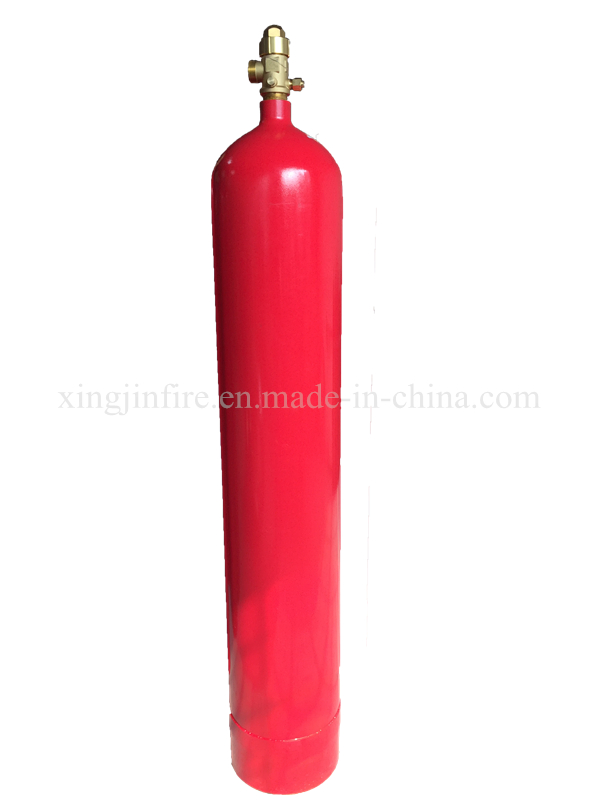

Advanced Reliable Automatic FM200 Fire Suppression System for Safety

Customization: Available
Cylinder Volume: 40L
Capacity of Gas: 38kg

Product Description

iBasic Information
Model NO.
QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2
Pattern
Enclosed Flooding
Agent
FM200
Working Pressure
4.2MPa
Discharge Time
≤10s
Power
DC24V/1.6A
Starting Mode
Automatic, Electrical Manual, Mechanical Emergency
Capacity
28000 Sets Per Week
PProduct Description

The Automatic FM200 Fire Suppression System is an innovative gas fire-fighting solution that is becoming increasingly popular worldwide. Known for being odorless, colorless, and nontoxic, it serves as the premier substitute for Halon-type systems. Most importantly, it has zero ozone depletion potential, making it an environmentally friendly choice for modern fire safety.

This equipment utilizes a "total flooding" method, making it ideal for occupied spaces requiring rapid fire suppression without leaving residue.

Specifications 4.2Mpa System 5.6Mpa System
Capacity 40L, 70L, 100L, 120L, 150L, 180L 70L, 90L, 120L
Filling Pressure 4.2Mpa 5.6Mpa
Discharge Time ≤10s
Temperature -10~50ºC
Max Coverage ≤800m² / 3600m³

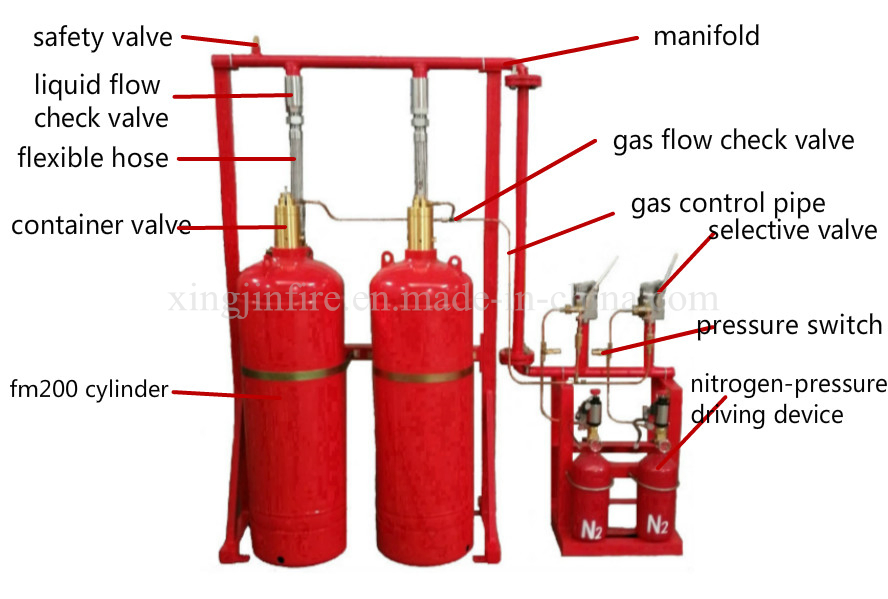

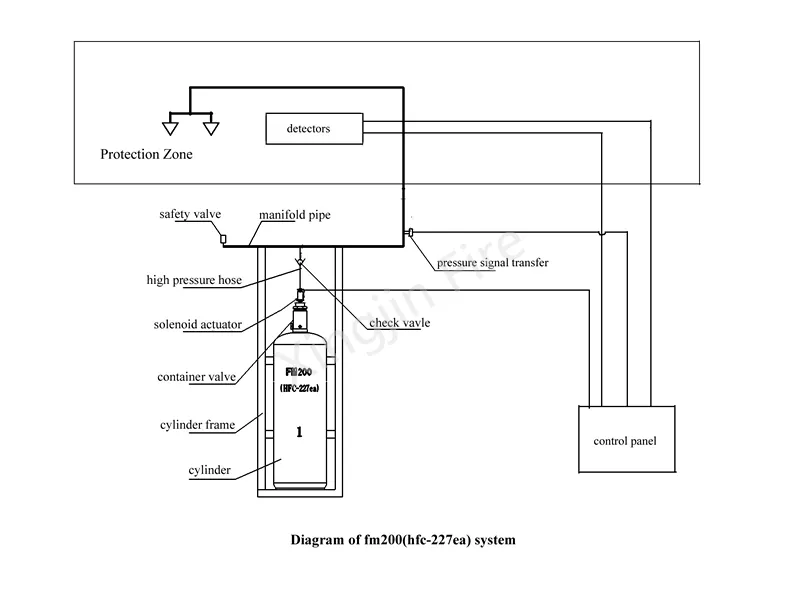

CSystem Components

The pipe network FM200 system integrates three core segments:

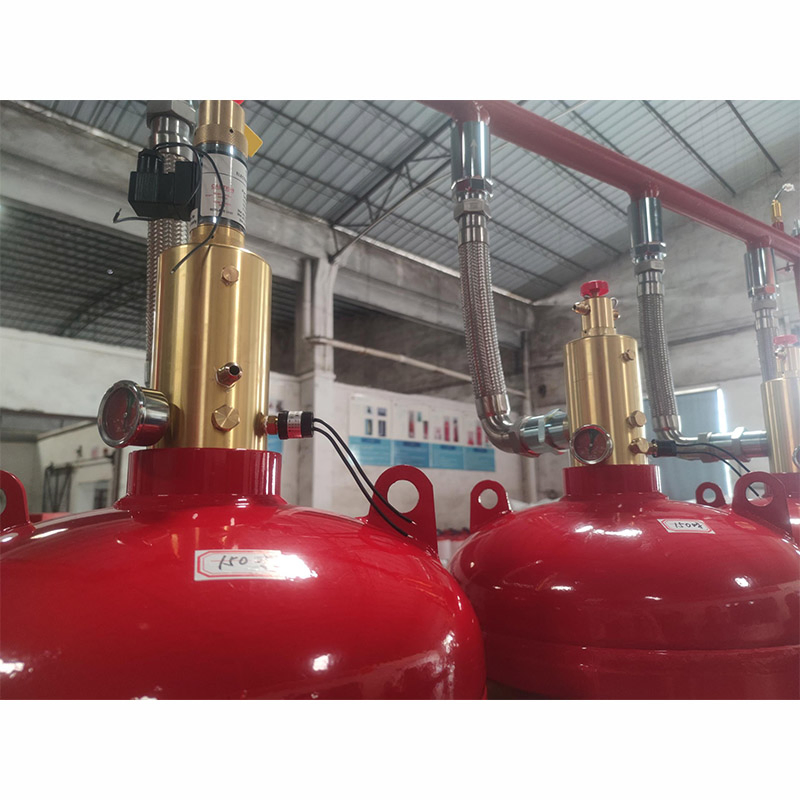

  • Fire Fighting Equipment: Cylinders, container valves, flexible hoses, liquid check valves, manifolds, safety valves, and nozzles.
  • Electrical Detection: Control panels, smoke and heat detectors, alarm bells, and manual release buttons.
  • Pipe Network: The distribution infrastructure for gas delivery.
AApplications

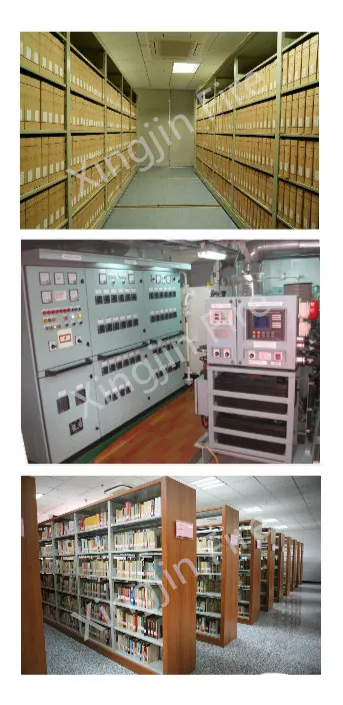

This system is perfectly suited for protecting high-value assets and critical infrastructure:

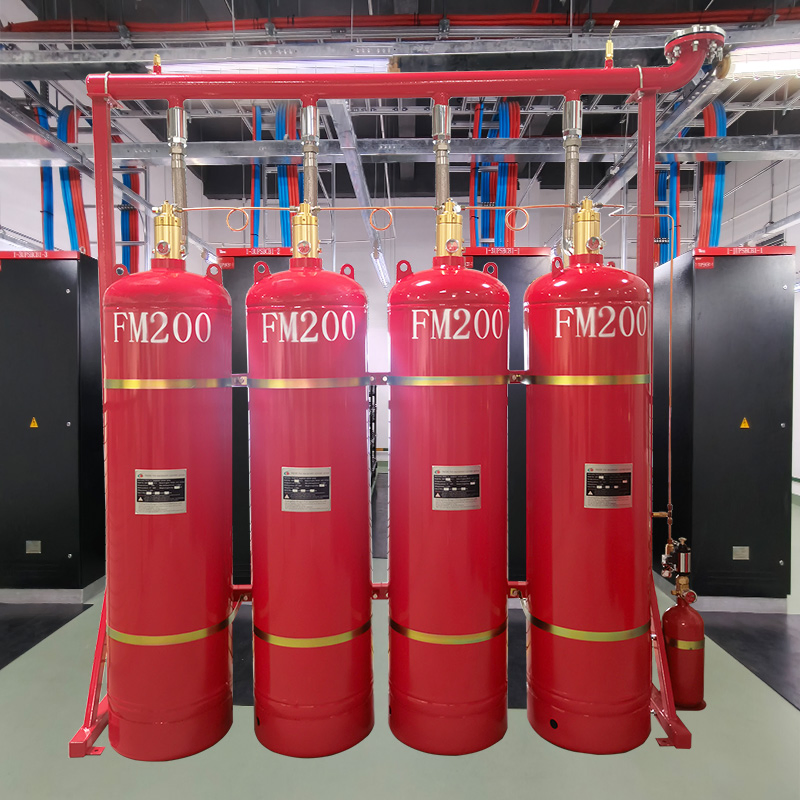

  • Data Centers & Computer Rooms
  • Telecommunication Centers
  • Switch Gear Rooms
  • High-tech Medical Facilities
  • Chemical Laboratories
  • Archives & Reference Libraries
WWhy Choose Us
  • 5 Years Quality Guarantee
  • High Efficiency Management System
  • Professional Engineering Support
  • 8×6 Hours Technical Service

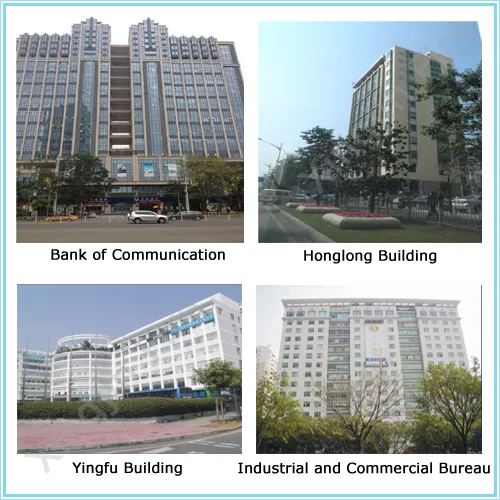

  • Proven Global Project Success
FAQ
Is the FM200 system environmentally friendly?
Yes, FM200 is considered a clean agent. It has zero ozone depletion potential (ODP) and is safe for use in occupied spaces.
How fast does the system respond to a fire?
The system is designed to discharge completely within 10 seconds or less, providing rapid suppression to minimize damage.
Can I customize the system for my specific room size?
Absolutely. We offer various cylinder capacities ranging from 40L to 180L to accommodate different room volumes up to 3600m³.
What kind of maintenance does the system require?
Regular inspections of pressure gauges, cylinder integrity, and detection sensors are required. We provide professional technical support for maintenance.
Is the system safe for electronic equipment?
Yes, as a gas-based suppression agent, it is non-conductive and leaves no residue, making it the best choice for computer rooms and data centers.
Do you support OEM requirements?
Yes, we welcome custom designs and drawings to meet specific project requirements and branding needs.
