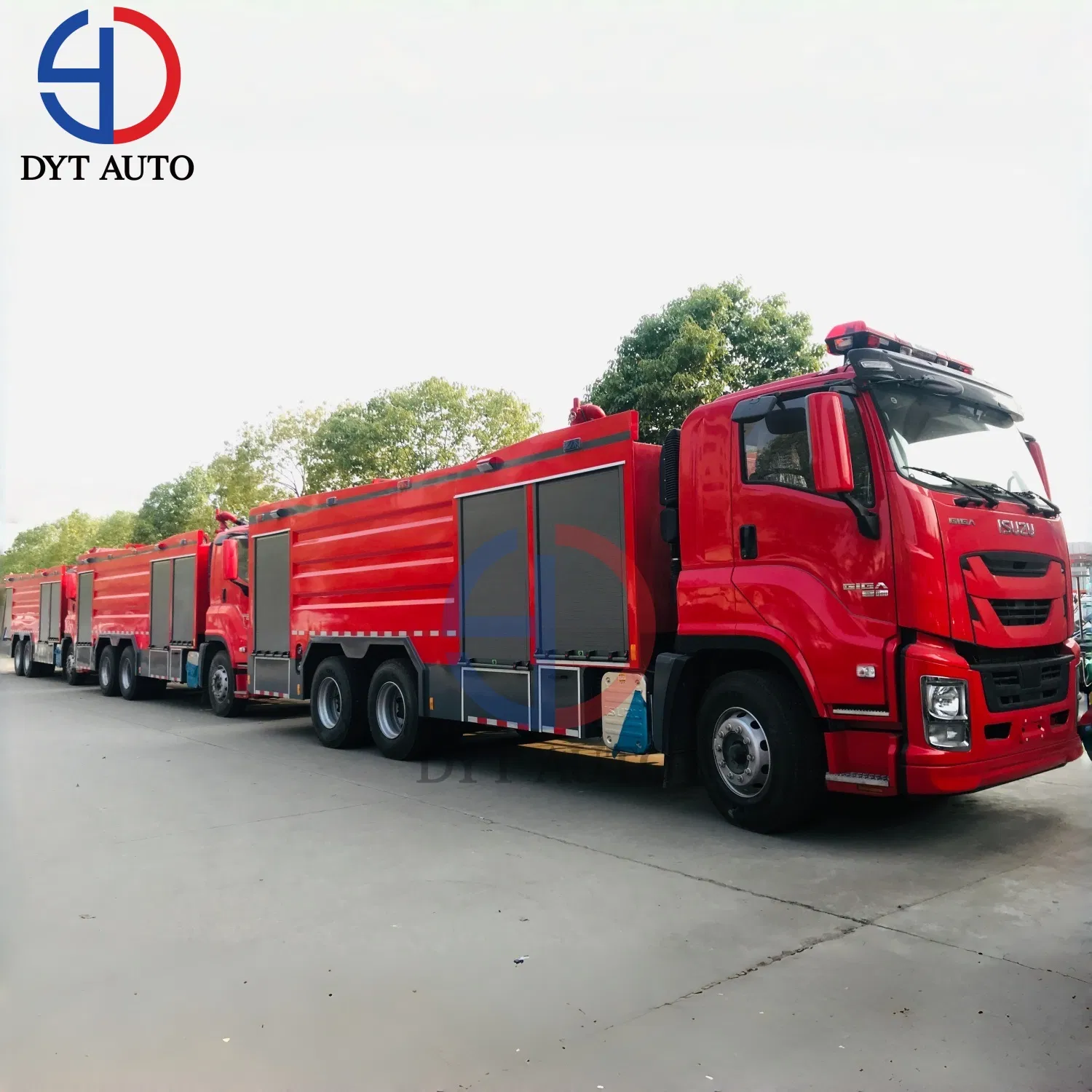

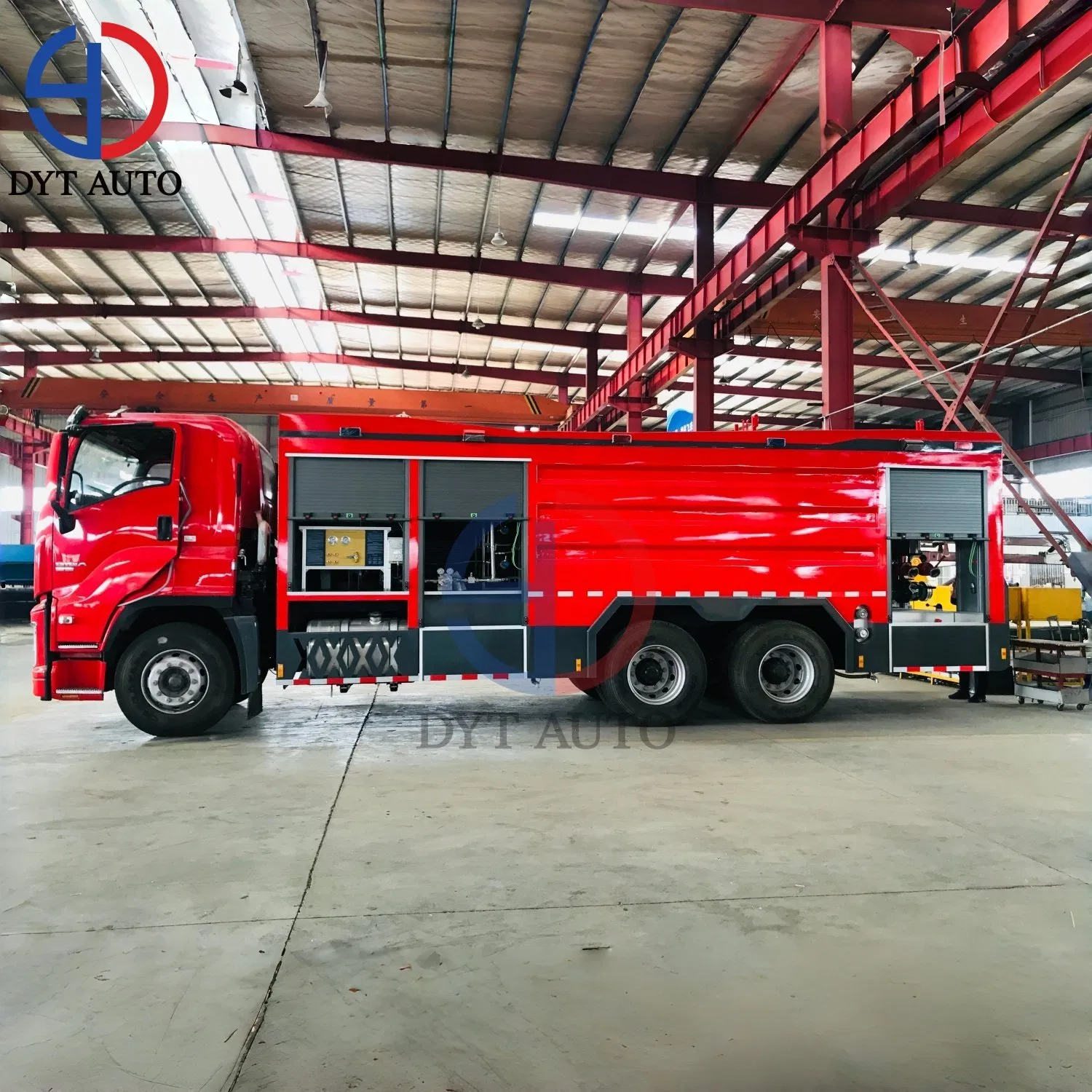

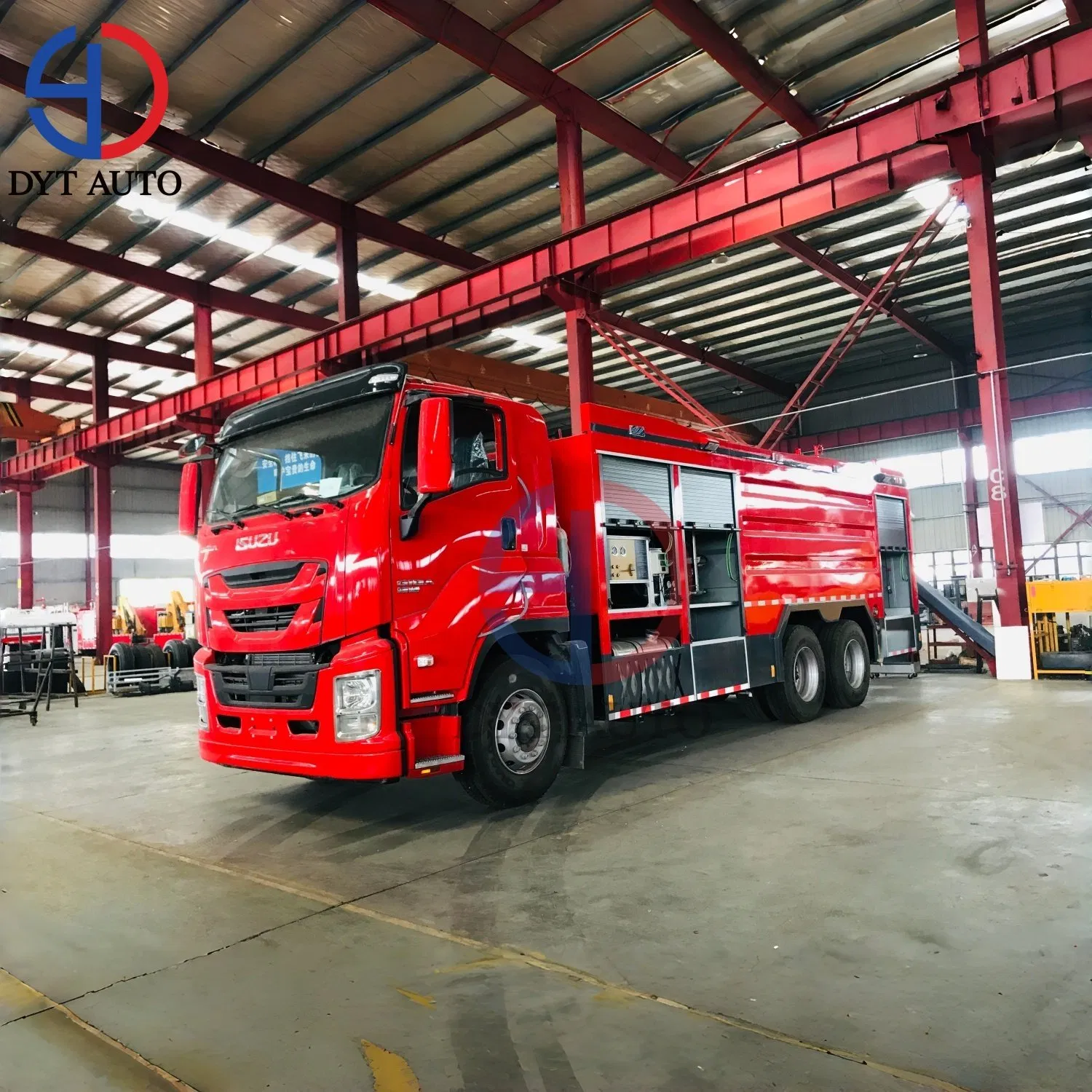

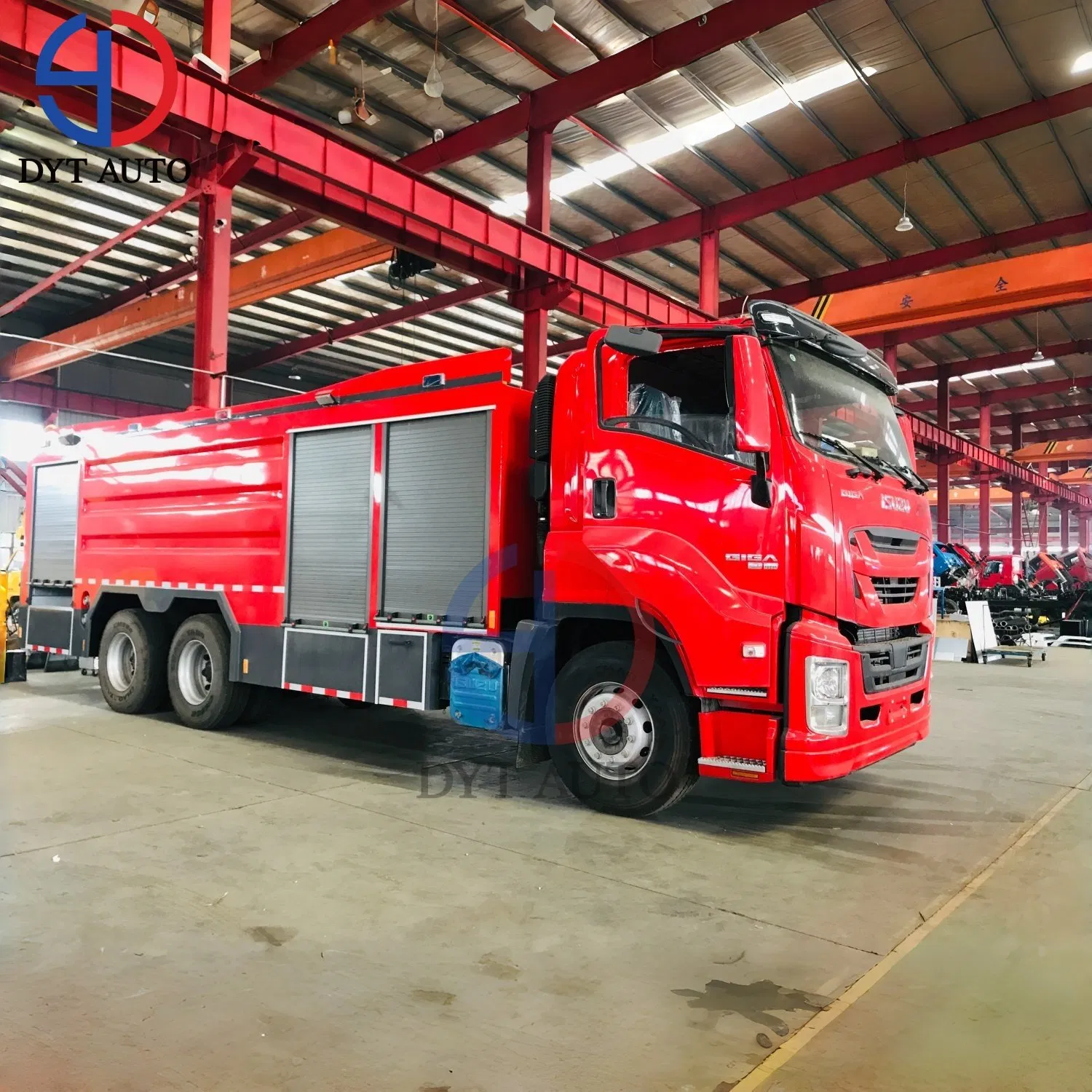

Customized Japanese Brand 1suzu 10 Wheelers 12m3 Water Foam Dry Powder Fire Fighting Trucks for Asia Fire Station
Customized Japanese Brand 1suzu 10 Wheelers 12m3 Water Foam Dry Powder Fire Fighting Trucks for Asia Fire Station
Customized Japanese Brand 1suzu 10 Wheelers 12m3 Water Foam Dry Powder Fire Fighting Trucks for Asia Fire Station
Customized Japanese Brand 1suzu 10 Wheelers 12m3 Water Foam Dry Powder Fire Fighting Trucks for Asia Fire Station
Customized Japanese Brand 1suzu 10 Wheelers 12m3 Water Foam Dry Powder Fire Fighting Trucks for Asia Fire Station
1 / 5
Customized Japanese Brand 1suzu 10 Wheelers 12m3 Water Foam Dry Powder Fire Fighting Trucks for Asia Fire Station
Customized Japanese Brand 1suzu 10 Wheelers 12m3 Water Foam Dry Powder Fire Fighting Trucks for Asia Fire Station
Customized Japanese Brand 1suzu 10 Wheelers 12m3 Water Foam Dry Powder Fire Fighting Trucks for Asia Fire Station
Customized Japanese Brand 1suzu 10 Wheelers 12m3 Water Foam Dry Powder Fire Fighting Trucks for Asia Fire Station
Customized Japanese Brand 1suzu 10 Wheelers 12m3 Water Foam Dry Powder Fire Fighting Trucks for Asia Fire Station

Customized Japanese Brand 1suzu 10 Wheelers 12m3 Water Foam Dry Powder Fire Fighting Trucks for Asia Fire Station

Customization: Available
After-sales Service: 7X24 Hours Online
Warranty: 1 Year
Send Inquiry

Product Description

Fire Fighting Truck Banner
Basic Information
Model NO.
DYF5350
Type
Tanker
Volume
12m3 / 12,000L
Drive Wheel
6×4
Horsepower
460HP
Certification
ISO9000, CCC, CE
Emission
Euro 5 & Euro 6
Material
Carbon/Stainless Steel
Product Description

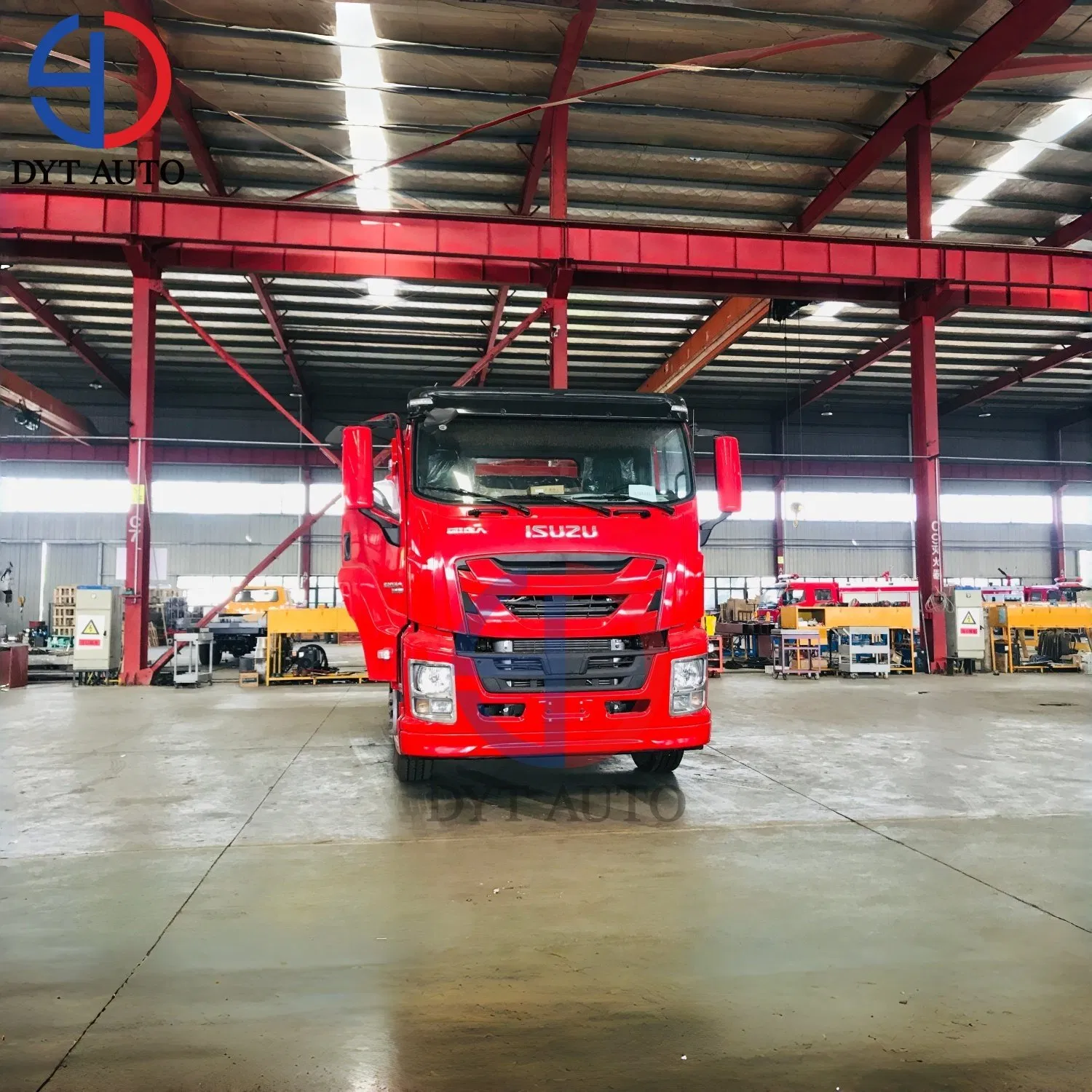

Fire Fighting Truck Front
🚛
GIGA Chassis: Adopts heavy-duty 10-wheelers fire truck chassis with original Sandwich PTO. 460HP powerful diesel engine with FAST 12 gears transmission ensures superior performance.
💧
Tank Configuration: Water tank (10m3) and foam tank (2m3) can be made of high-strength carbon steel or stainless steel. Each tank includes a manhole on top.
🛡️

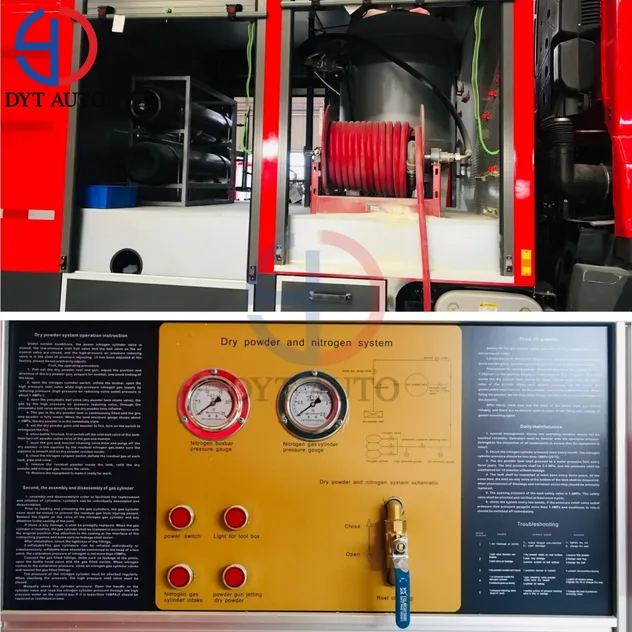

Dry Powder System: Equipped with a 500kg dry powder tank made of pressure vessel material steel, complemented by two 40L nitrogen cylinders.
Dry Powder System

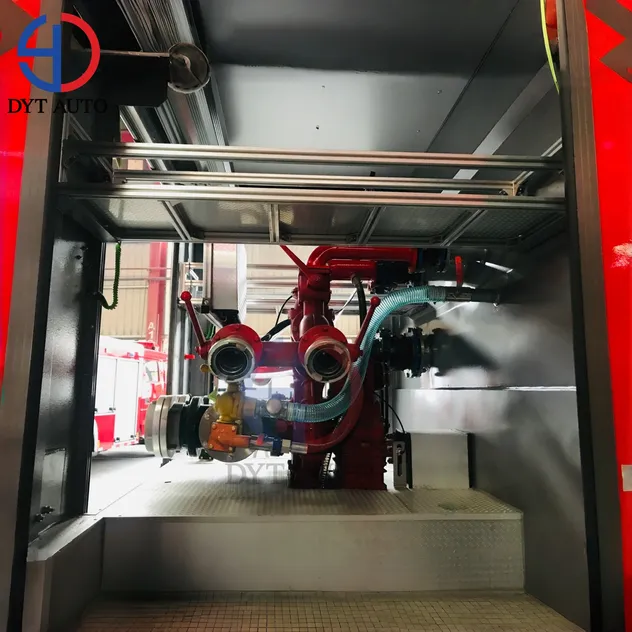

Fire Pump System
Fire Monitor
Fire Pump

Equipped with normal pressure fire pump (3600L/min). Optional high-pressure pumps available (Rongshen, Xiongzhen, or Darley).

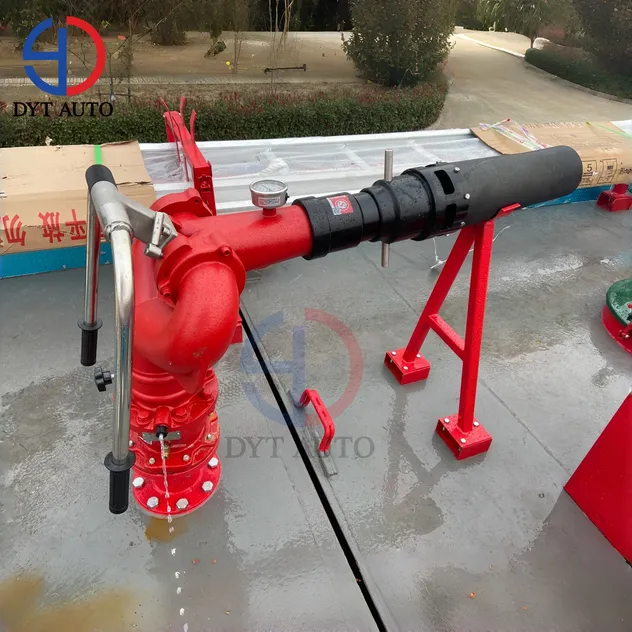

Fire Monitor

PL48 monitor with 2880L/min flow rate. Effective range of 50m to 55m. Electric remote control available as an option.

Technical Specification
Vehicle Dimensions & Weight
Overall Dimensions9775 × 2490 × 3560 mm
GVW / Payload35,000kg / 20 Tons
Engine & Transmission
Engine ModelI-SUZU 6WG1-TCG61 (460HP)
Emission StandardEuro 6
GearboxFAST 12 Forward + 2 Reverse
Fire Fighting Capacity
Water / Foam Tank10,000L / 2,000L
Dry Powder Tank500L (Pressure vessel)
Pump Flux3600 L/min @ 1.0Mpa
Suction Height7m
Other Fire Truck Types

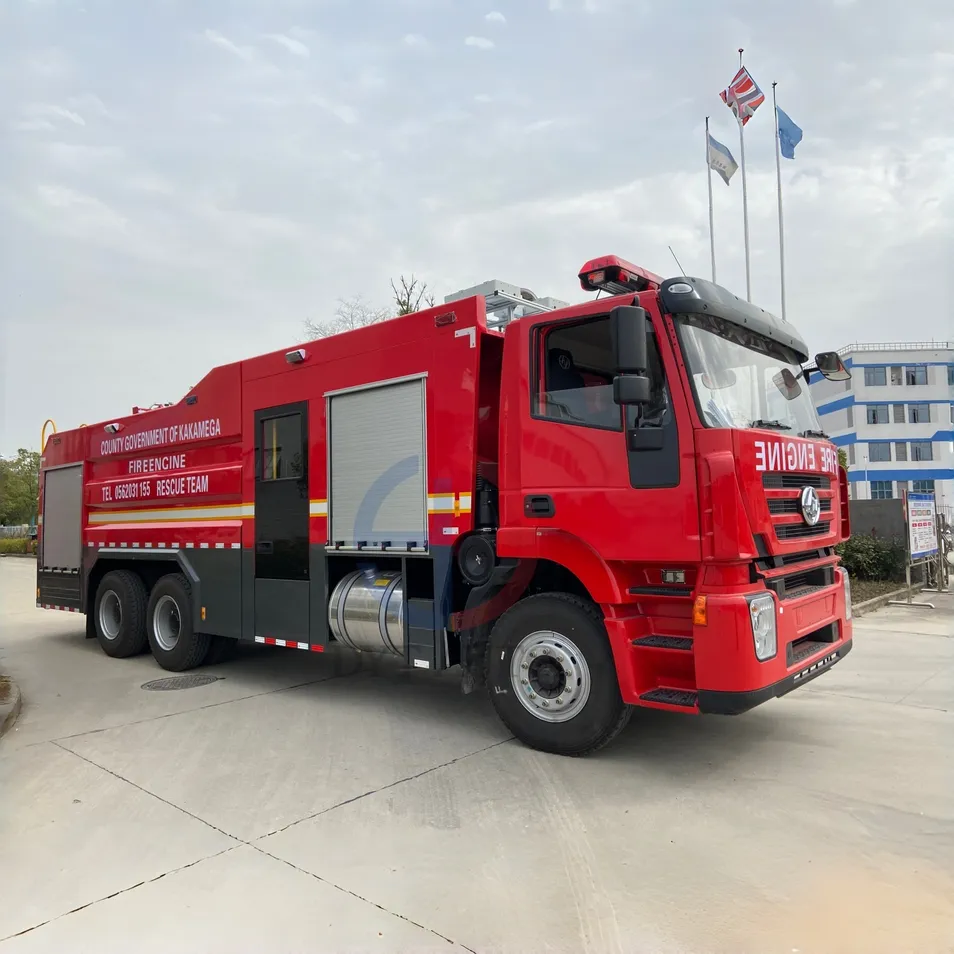

Foam Fire Truck
Foam Fire Truck

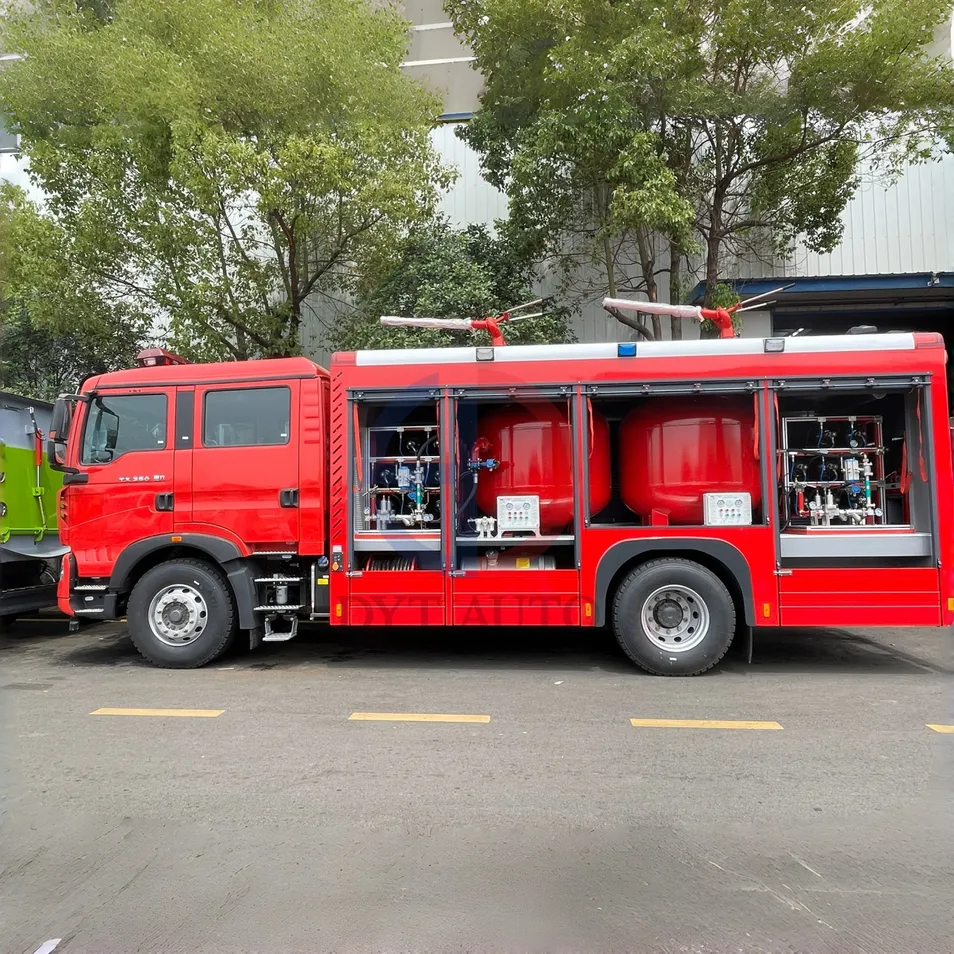

Rescue Truck
Rescue Fire Truck

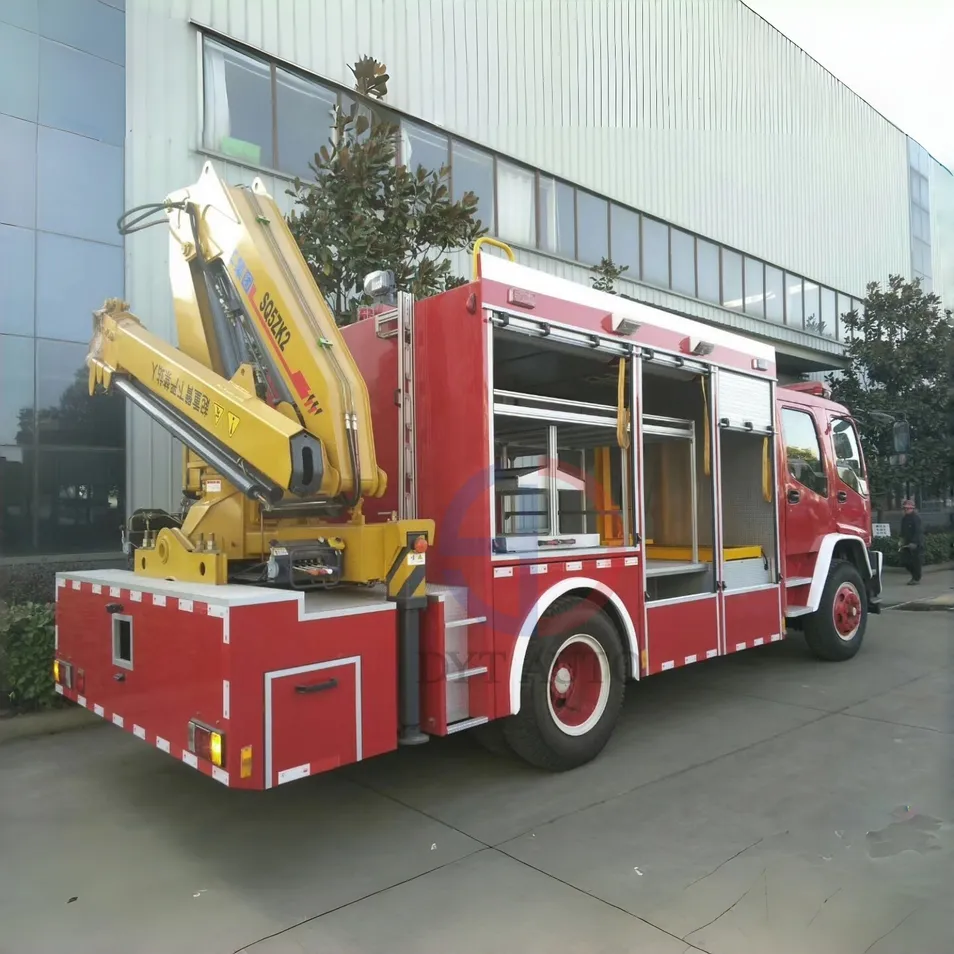

Aerial Ladder
Aerial Ladder Truck

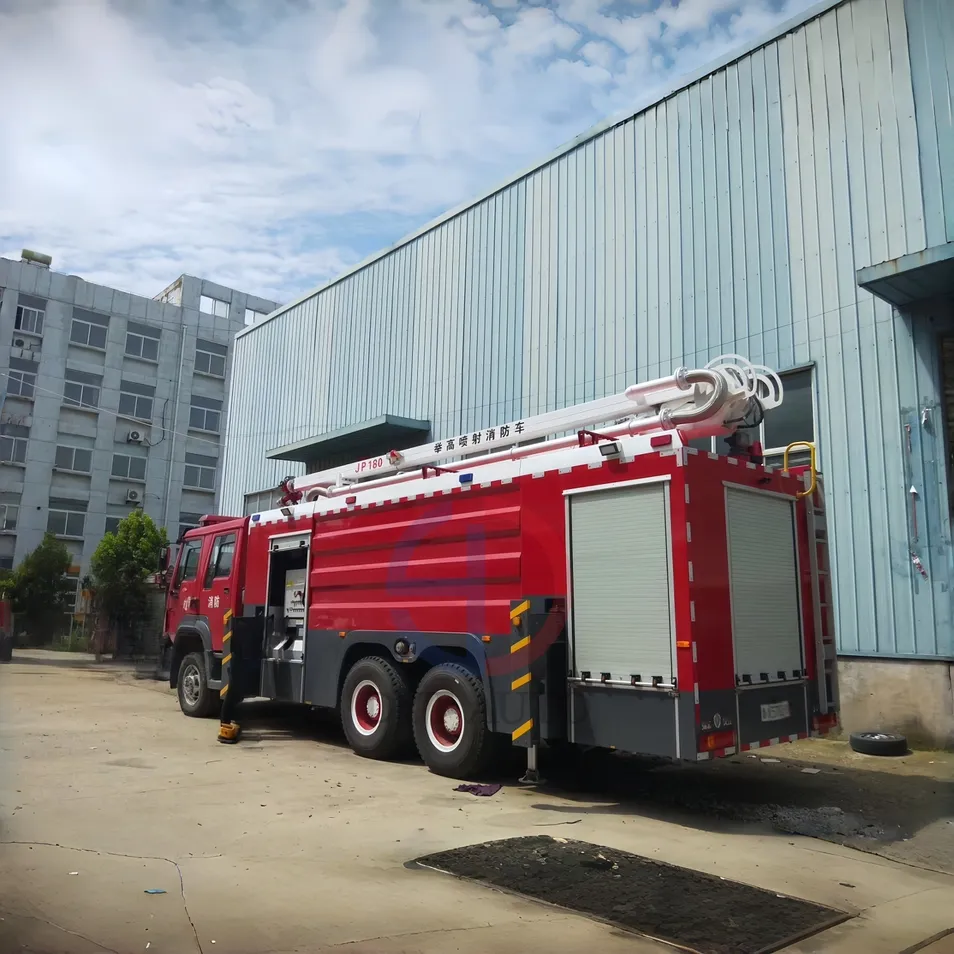

Emergency Unit
Emergency Unit
Product Details

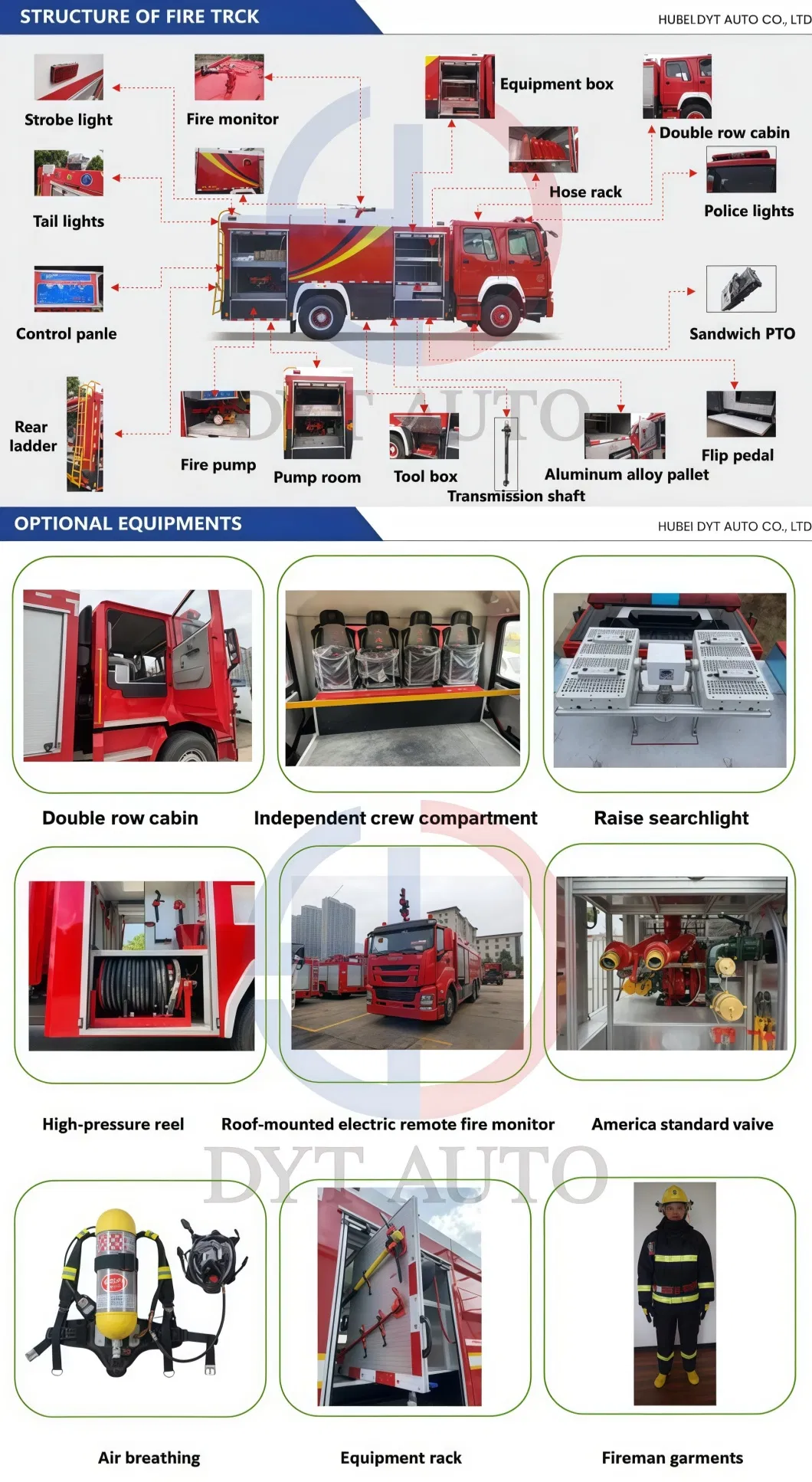

Detail 1 Detail 2 Detail 3
Frequently Asked Questions
What is the standard delivery time for the trucks?
Normally, the delivery time is around 35-55 working days. For specialized off-road type trucks, it may take between 65-90 working days depending on the configuration.
What kind of warranty is provided?
We provide a one-year warranty for the chassis core components (Engine, transmission, and frame) and a one-year warranty for the upper body main firefighting components.
How is the after-sales service handled?
We offer 7x24 hours online support. For simple issues, we provide parts and remote video tutorials. For complex technical problems, we can dispatch engineers for on-site service.
Which shipping methods are available?
Depending on the truck dimensions, we utilize RO-RO, bulk vessels, 40FR, 40OT, or standard containers (40FT/20FT) to ensure safe delivery.
What are the accepted payment terms?
We accept various payment methods including T/T (Telegraphic Transfer), L/C at sight (Letter of Credit), Western Union, and Money Gram.
Can the tank material be customized?
Yes, customers can choose between high-strength carbon steel or stainless steel for the water and foam tanks based on their specific requirements.
