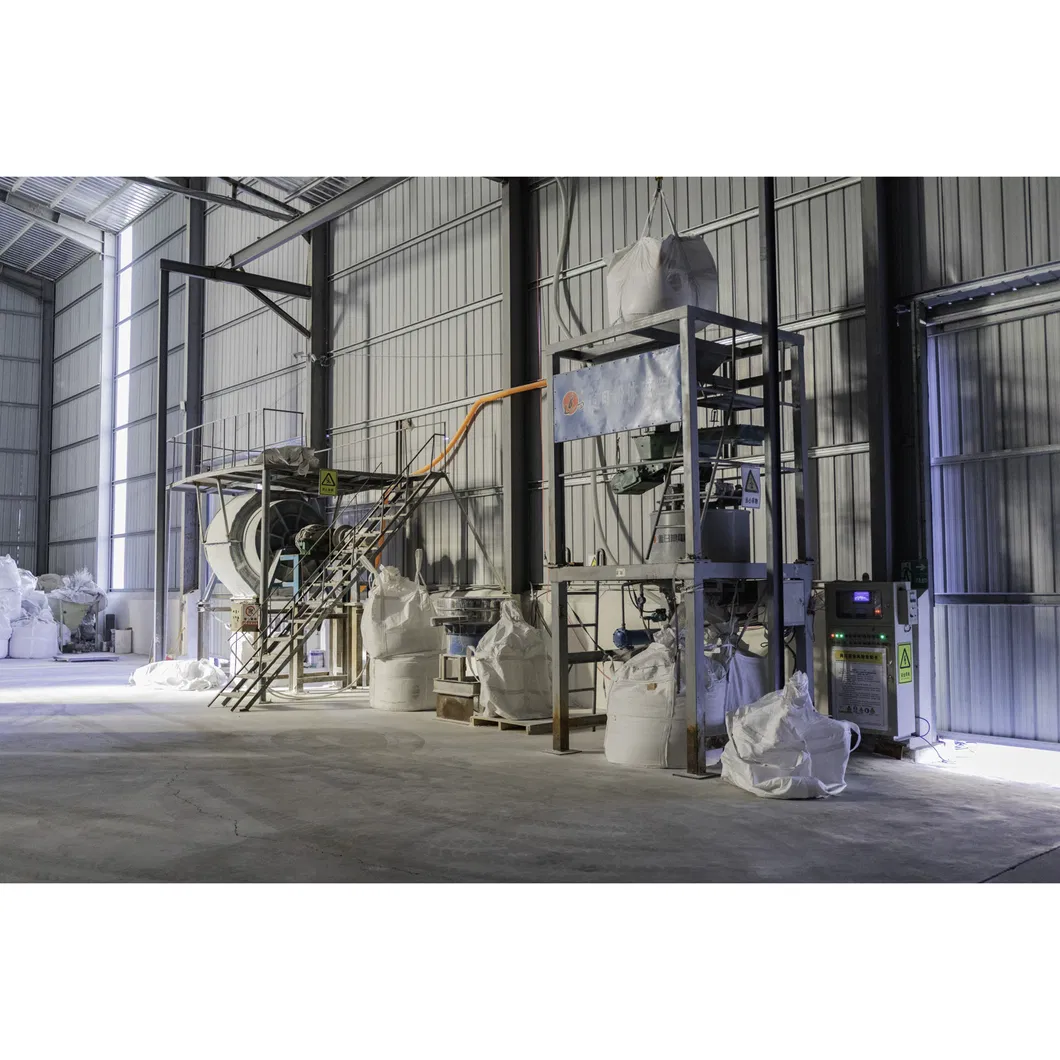

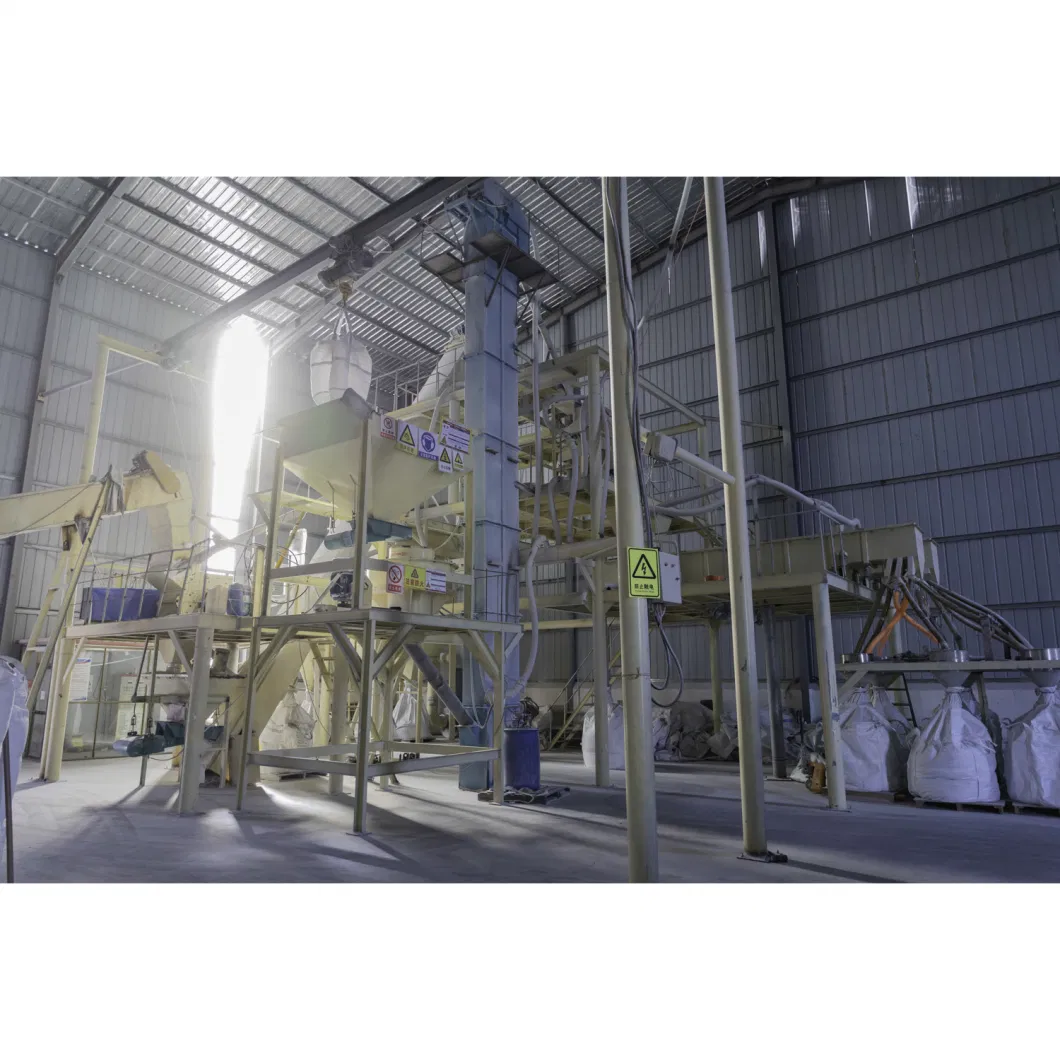

Fused Silica First Grade is produced using high purity quartz stone as raw material. Through a process of pickling treatment and high-temperature transformation at 1800ºC in a resistance furnace, crystalline silica is converted into amorphous silica. The final product is formed through special mechanical processing, screening, and iron removal, resulting in high-quality blocks, particles, and powder.
Near zero thermal expansion and extremely low thermal conductivity.
SiO2 content is above 99.95% with stable chemical properties.
Particle size close to circular with stable distribution and large packing density.
| Component | Typical Values |
|---|---|
| SiO2 | 99.95% |
| Al2O3 | 140ppm |
| Fe2O3 | 20ppm |
| Na2O | 25ppm |
| K2O | 25ppm |
| TiO2 | 16ppm |
| CaO | 18ppm |
| MgO | 10ppm |
1. Block: 0-60 mm

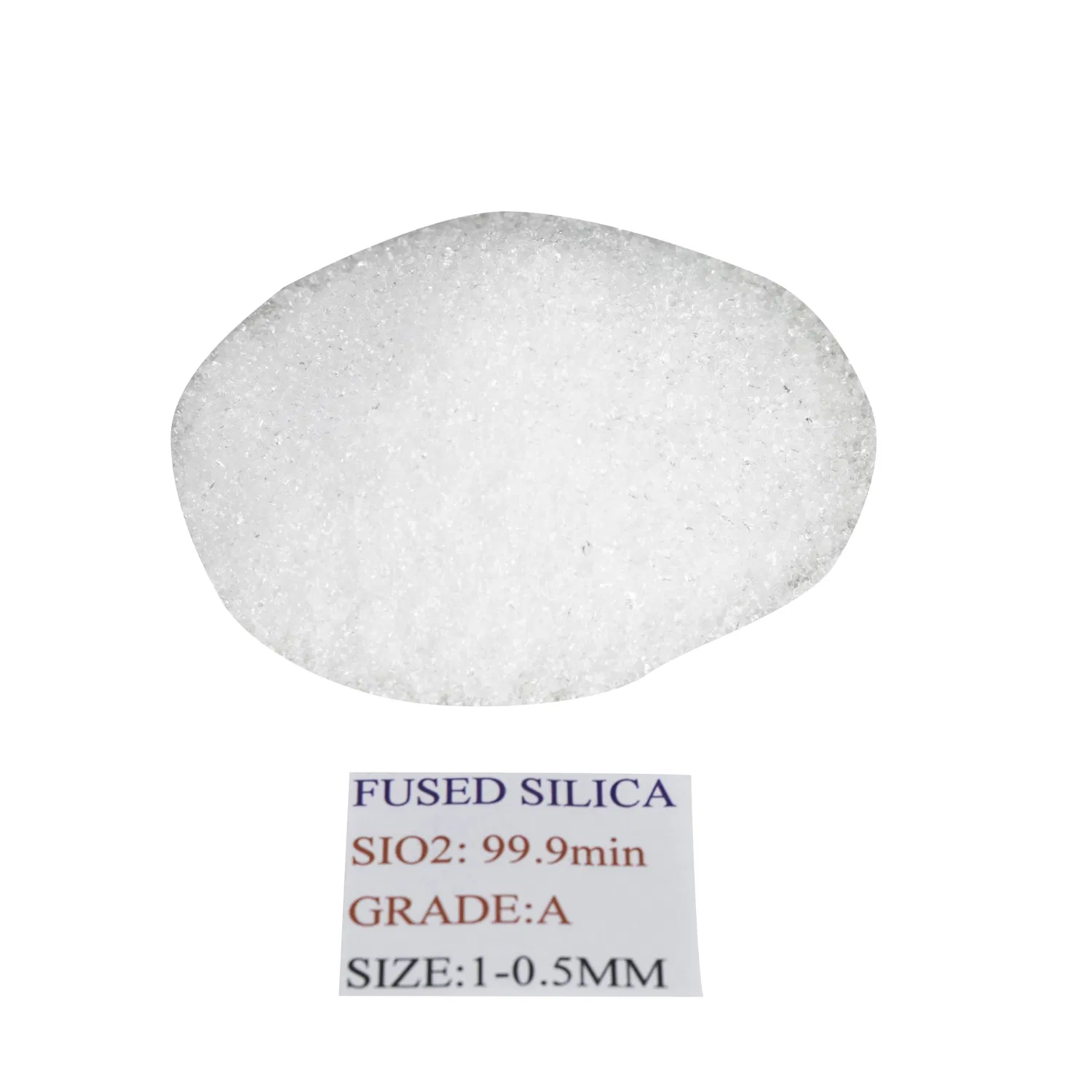

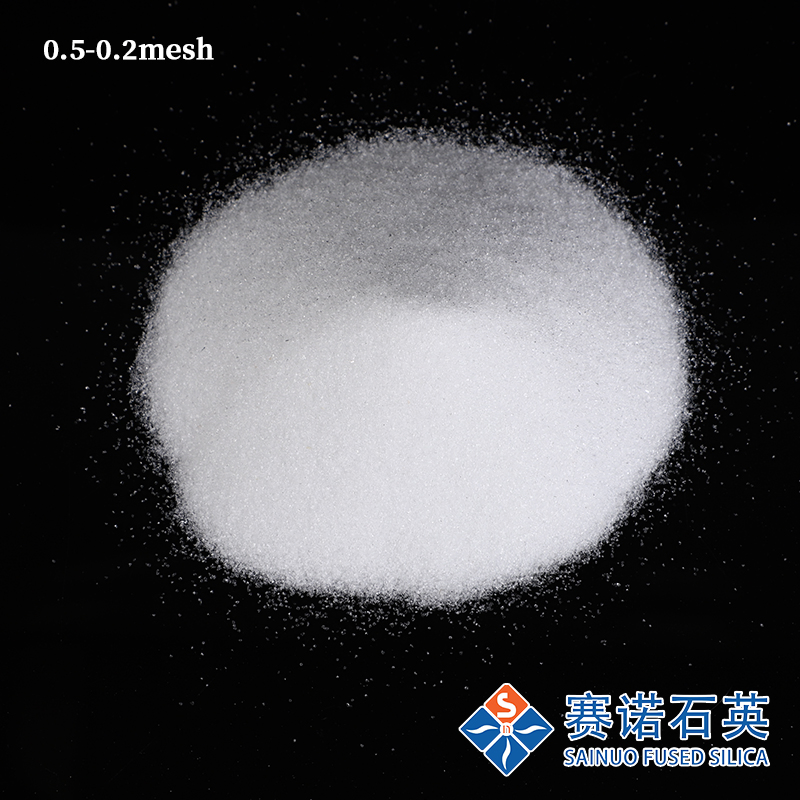

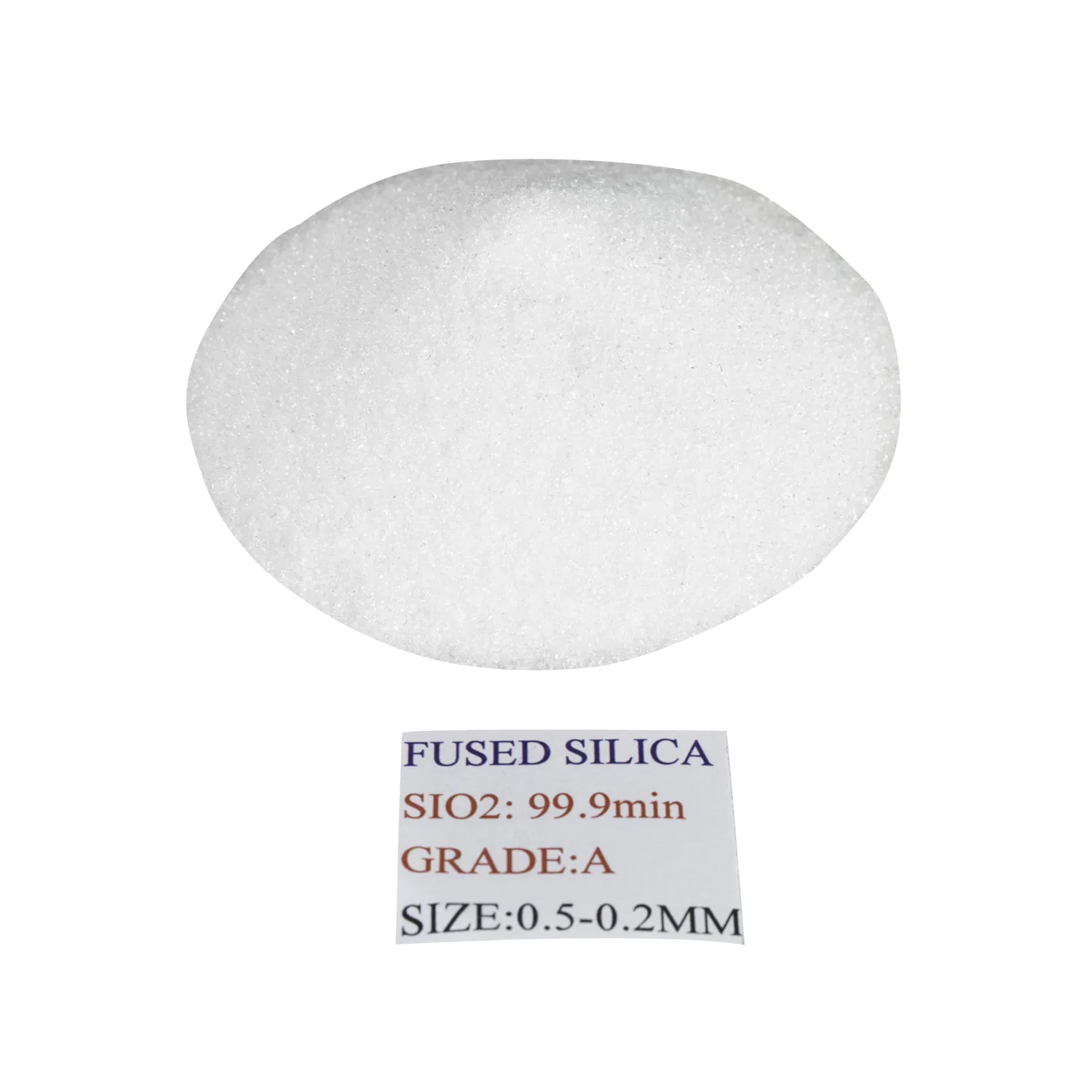

2. Granular:
| 8-5mm | 5-3mm | 3-1mm | 1-0mm |
| 4-20 mesh | 50-100 mesh | 100-200 mesh | - |
| 10-20 mesh | 20-40 mesh | 40-70 mesh | - |

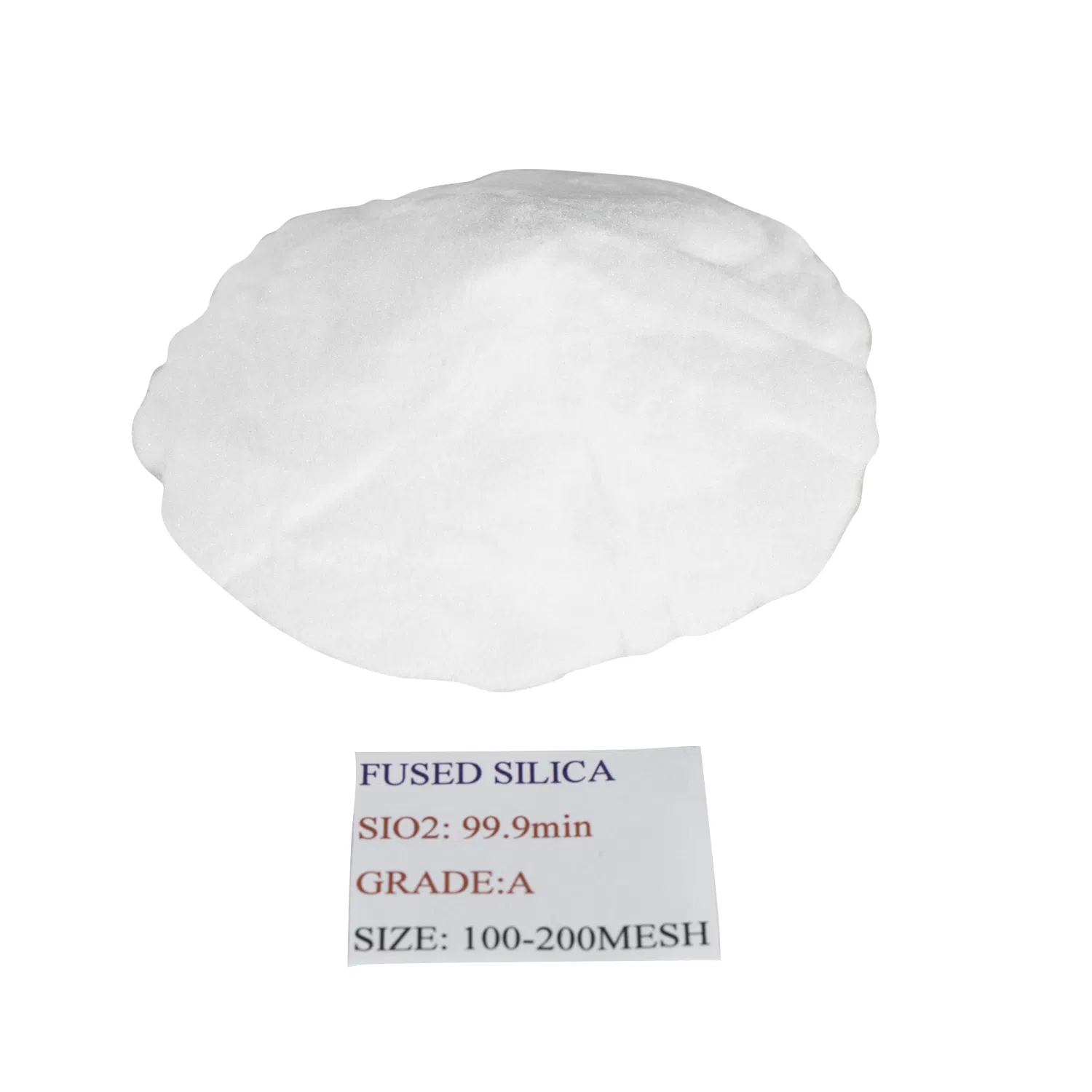

3. Powder: 70-140 mesh, 200 mesh, 325 mesh, 500 mesh, 1500 mesh, 3000 mesh
