Self Lift Stacker Rated Capacity 1.5ton Reach Height 1.5m Full Electric Stacker Truck for Sale with Scissor Push-out

After-sales Service: Free Parts Lifetime
Warranty: 1 Years
Cab Location: Not Adjustable

Product Description

Basic Information

Model NO.
FSLS-S2
Type
Self Loading Electric Stacker
Power
DC Motor
Load Capacity
1500kg
Fuel
Electric
Load center
400mm
Lift height
800/900/1000/1100/1200/1300/1500/1600mm
Condition
New
HS Code
84279000
Color
Customizable

Product Description

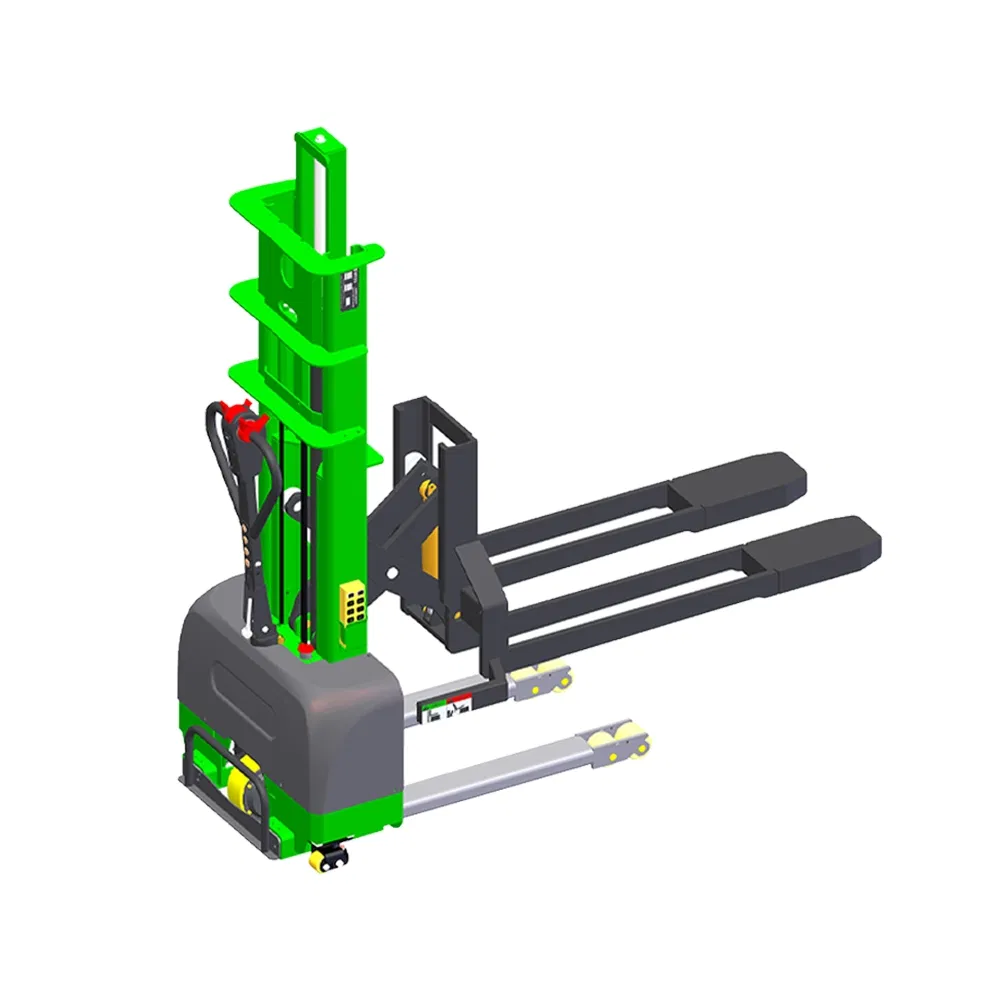

Self Lift Stacker Rated Capacity 1.5ton Reach Height 1.5m Full Electric Stacker Truck with Scissor Push-Out

The Electric Self Loading Stacker (with Scissor Type Push Out) is a light duty material handling equipment powered by electricity. It can be carried with transport vehicles (such as box trucks, flatbed trucks, vans, etc.), self-load and unload onto/off the vehicle, and complete loading/unloading of goods as well as short-distance transfer. Classified as a self-propelled industrial vehicle, it realizes lifting and stacking of goods via its mast and forks; through electrically driven scissor arm extension and retraction, it can smoothly push the cargo-carrying forks into the truck compartment.

Electric Stacker Overview

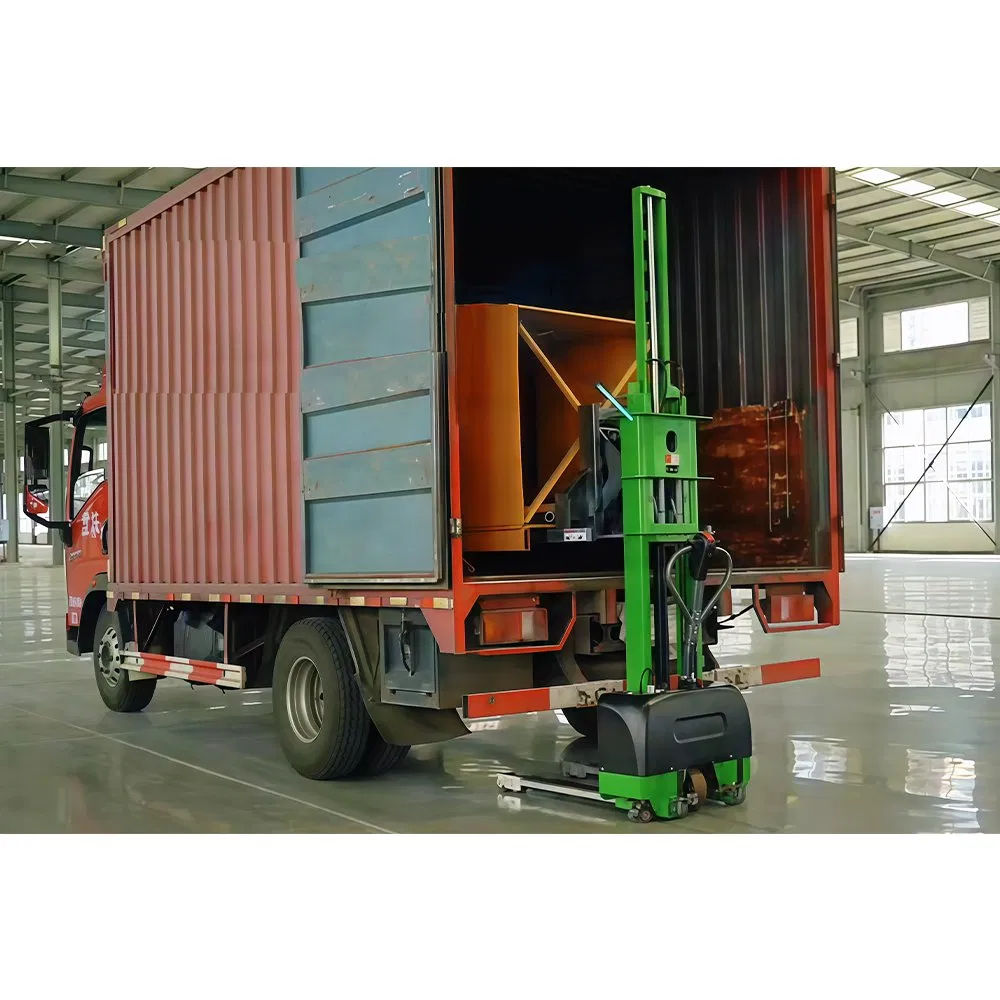

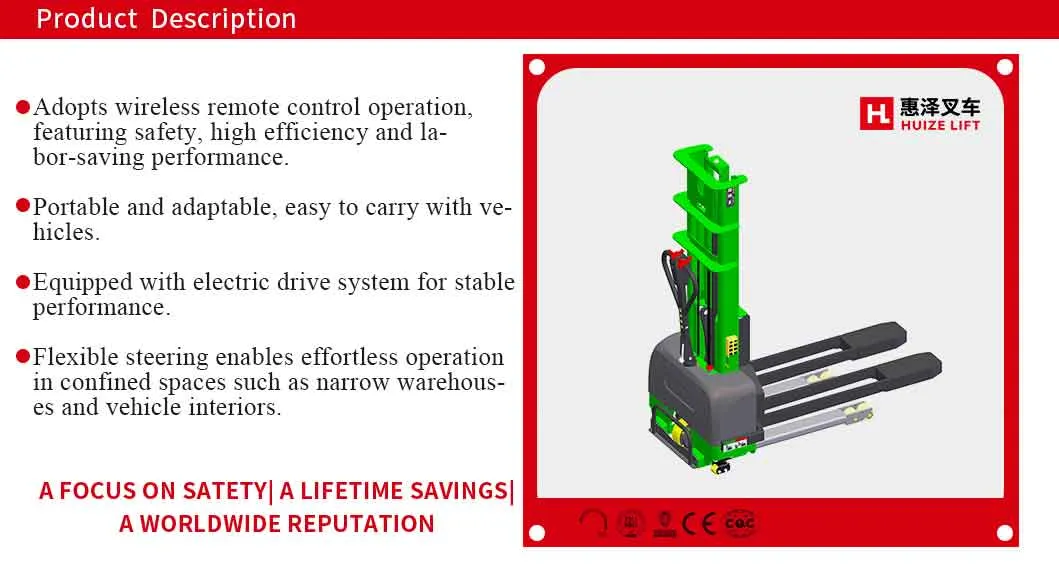

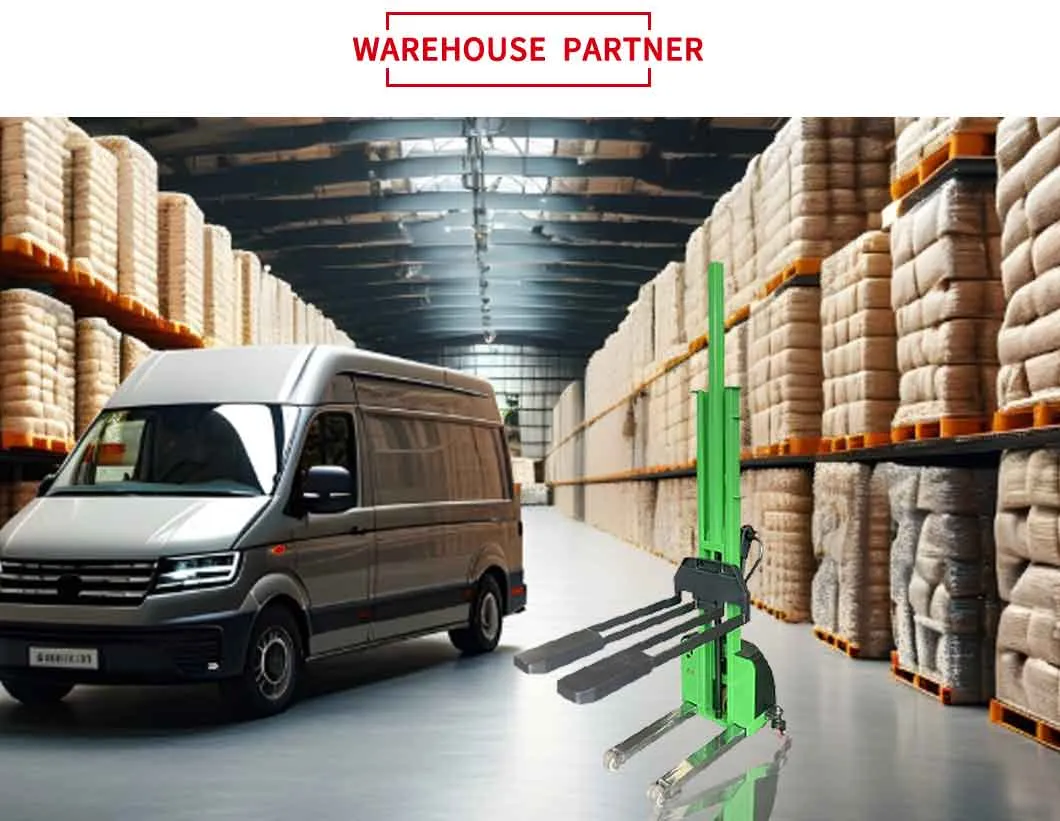

Stacker Operation Loading Detail Side View

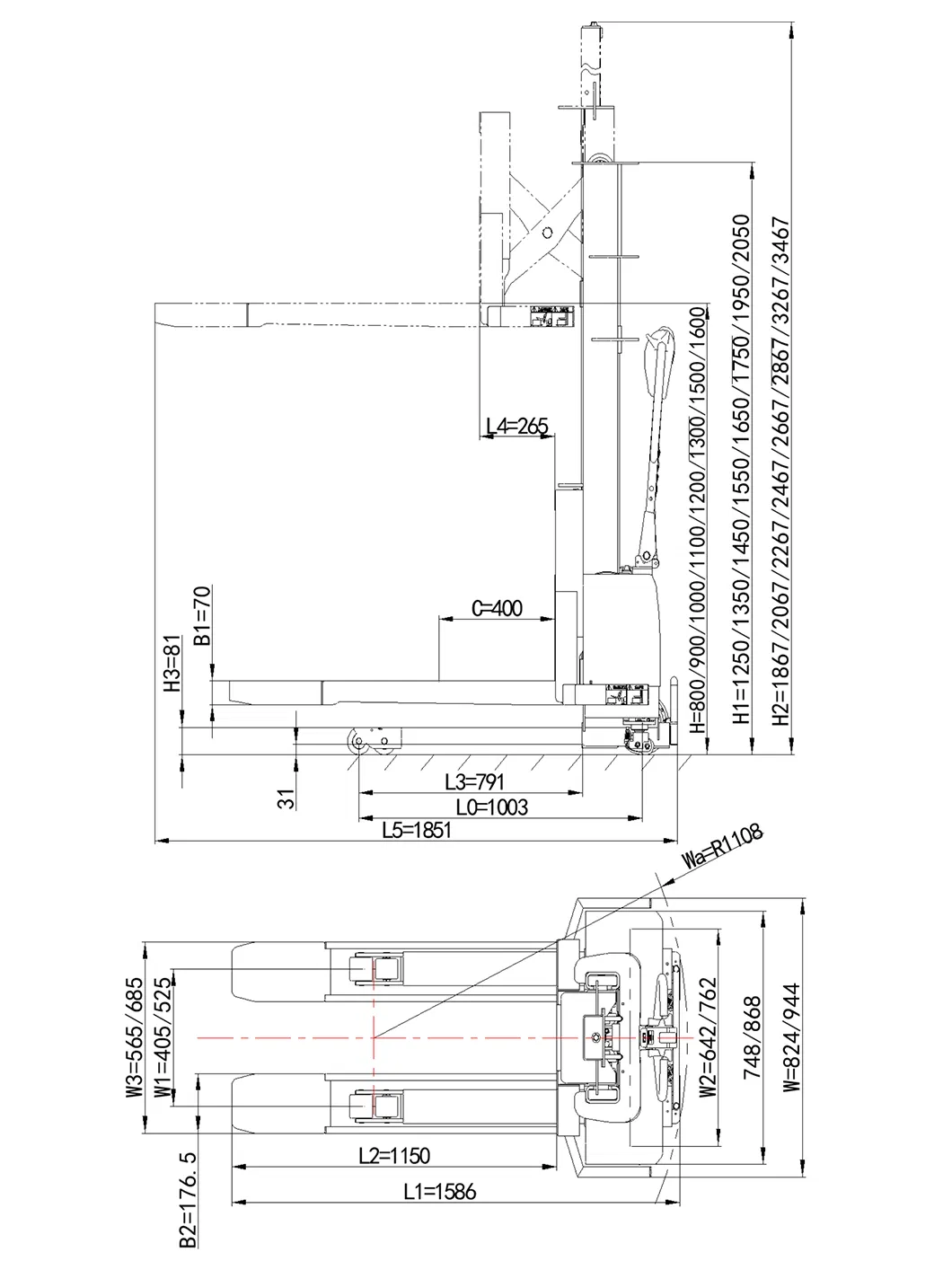

Detailed Dimensions Technical Specifications

Technical Parameters

Characteristic Code Unit CDD15D Data
Type of Power--Li-Ion Battery
Max. LoadQkg1500
Load CenterCmm400
WheelbaseL0mm1003
Max. Fork HeightHmm800 - 1600
Length of ForkL2mm1150
Overall LengthL5mm1851
Lifting Speed-mm/s55
Lift Motor Power-kw2.2
Battery Voltage-V48

Related Products

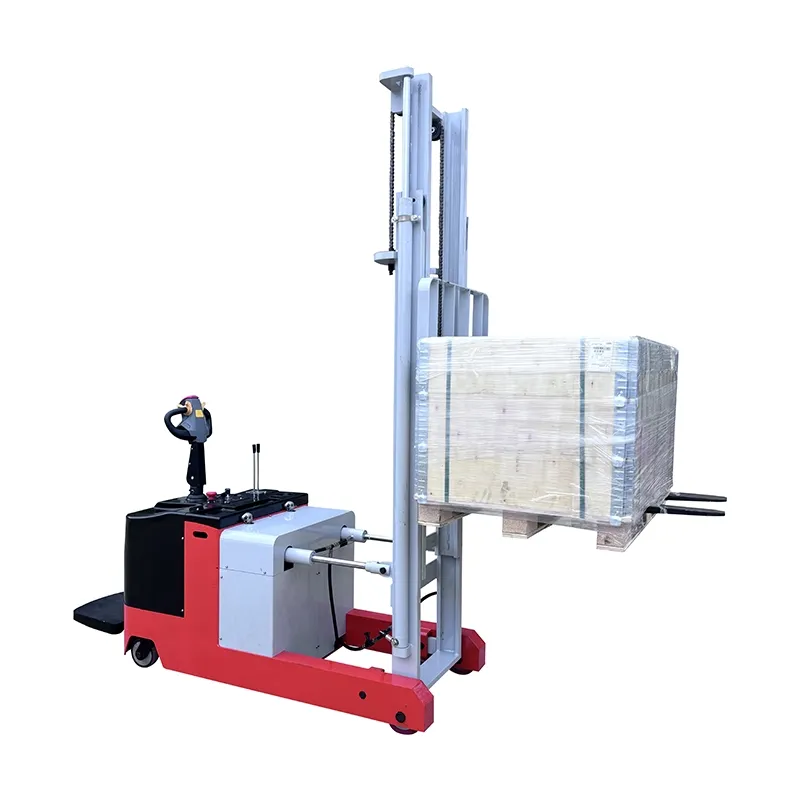

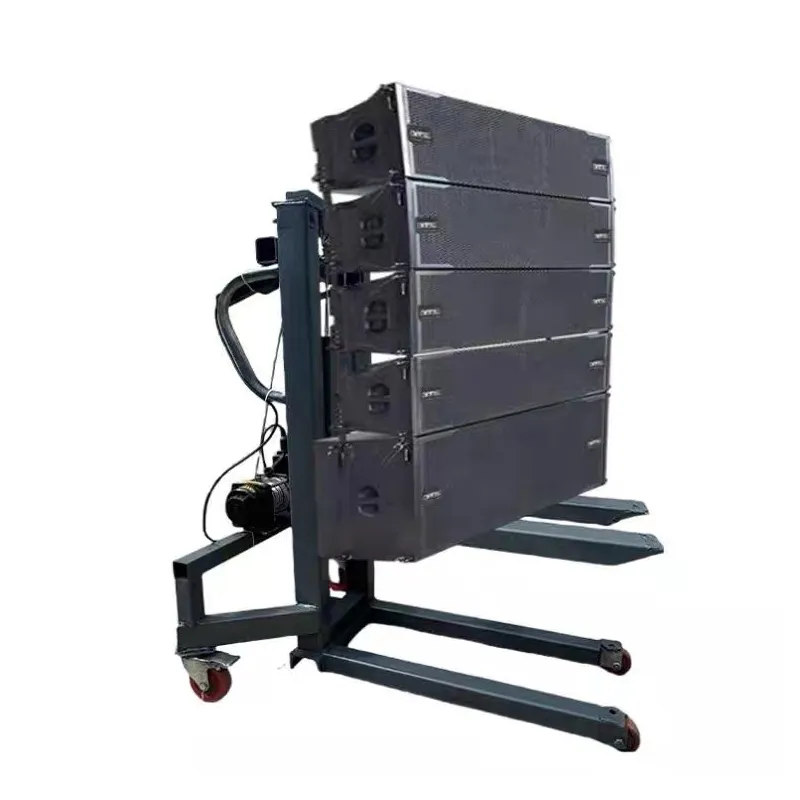

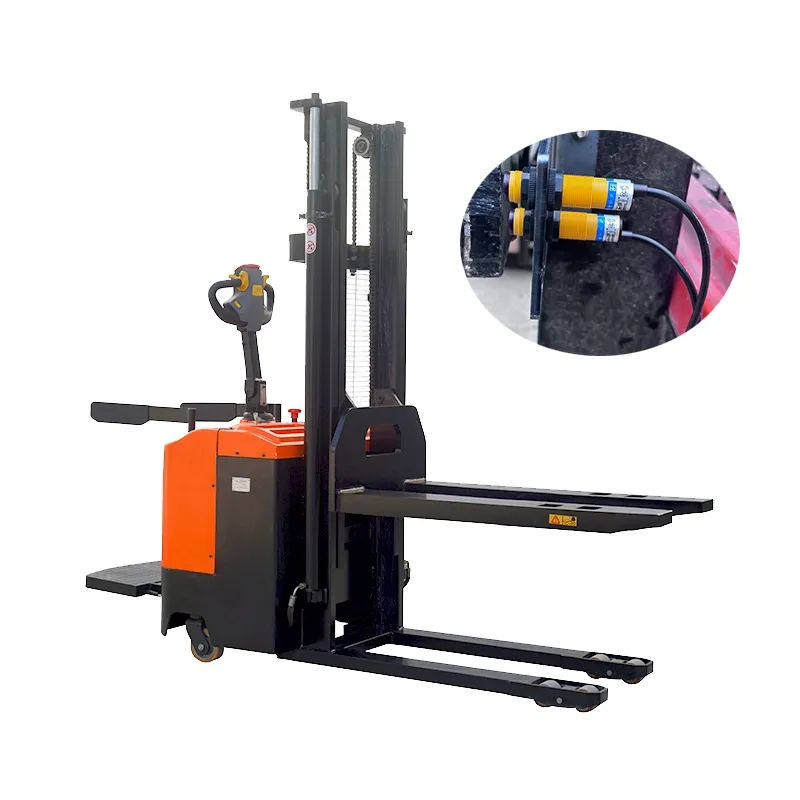

Stage Lifting Stacker Full Electric Stacker High Lift Pallet Truck

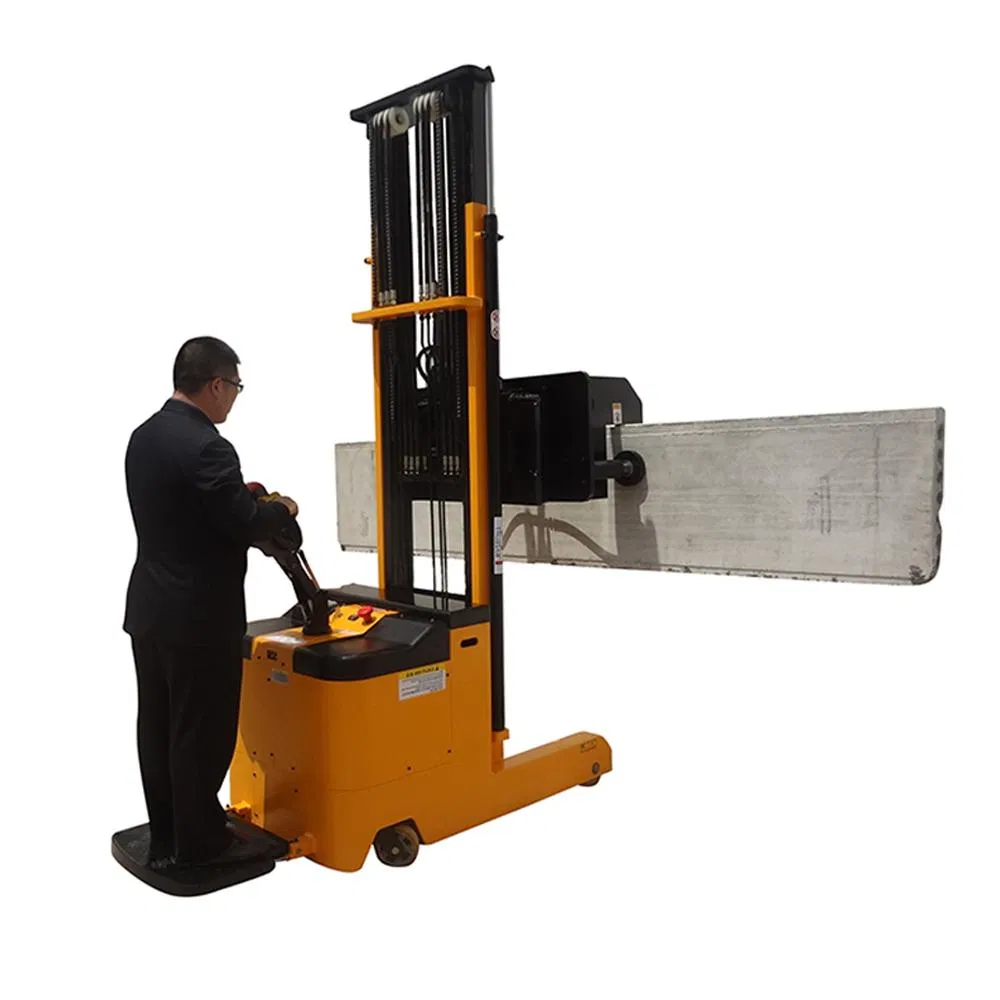

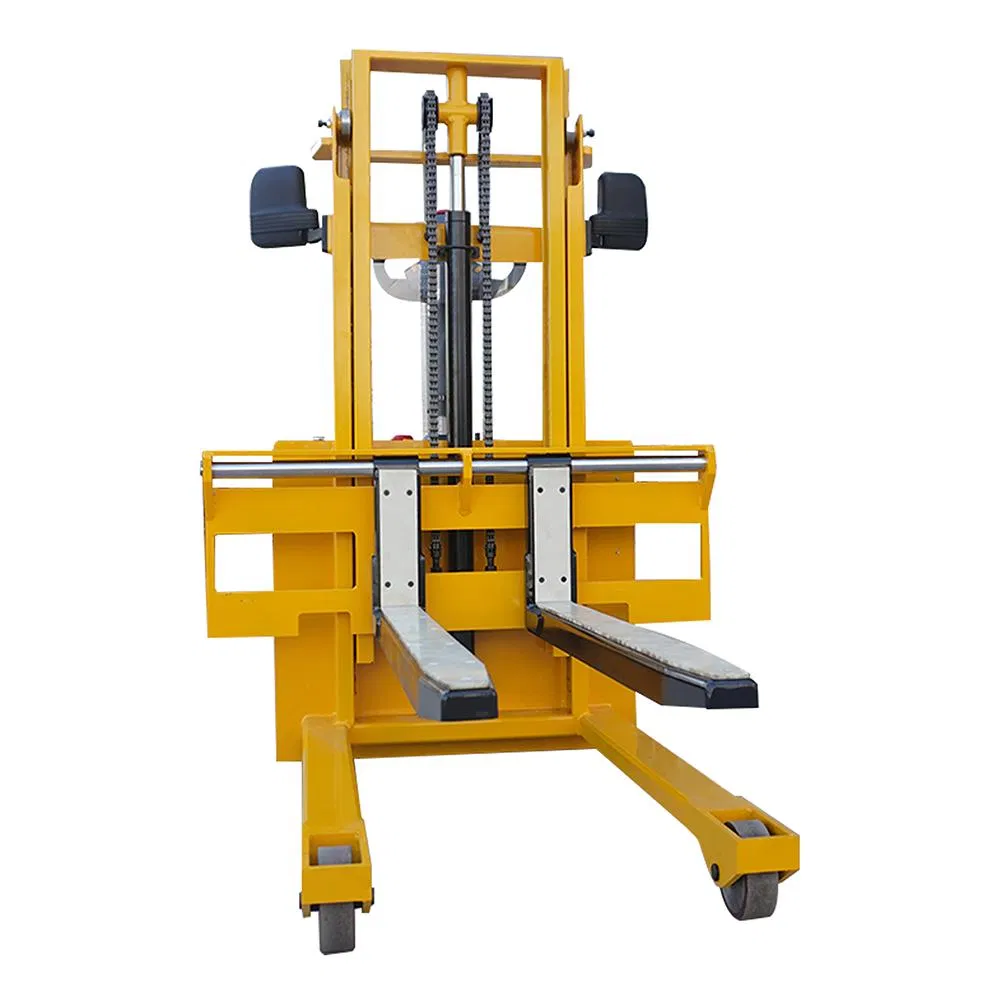

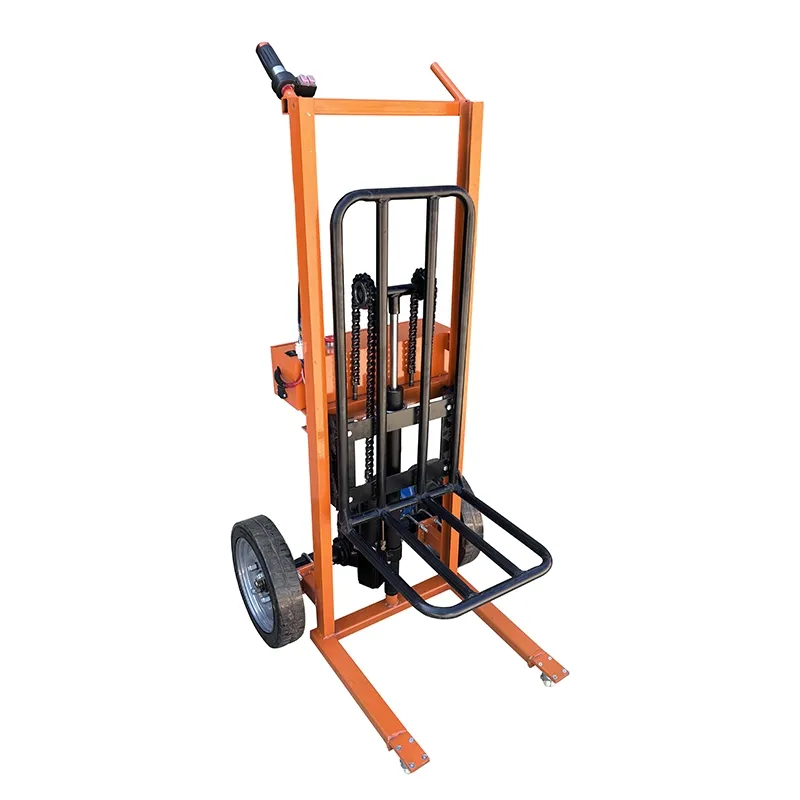

Platform Stacker Stand-on Stacker Handling Stacker

Quality Assurance & Facility

Production Line Testing Area Storage Center

Frequently Asked Questions

What is the maximum load capacity of this stacker?
The rated load capacity for the FSLS-S2 model is 1500kg.
Can this unit load itself onto a truck?
Yes, the self-loading design allows the stacker to lift itself into and out of vehicles such as vans and box trucks for easy transport.
What lifting heights are available?
We offer multiple configurations with lifting heights ranging from 800mm to 1600mm to suit different requirements.
What is the advantage of the scissor push-out feature?
The scissor type push-out mechanism allows the forks to extend into the truck compartment or warehouse racking without moving the base of the stacker.
What type of battery does it use?
The stacker is typically equipped with a 48V Lithium-Ion battery or Lead-Acid battery options, providing reliable electric power for lifting and driving.
Is the color of the stacker customizable?
Yes, the color of the equipment can be customized according to your brand requirements.
