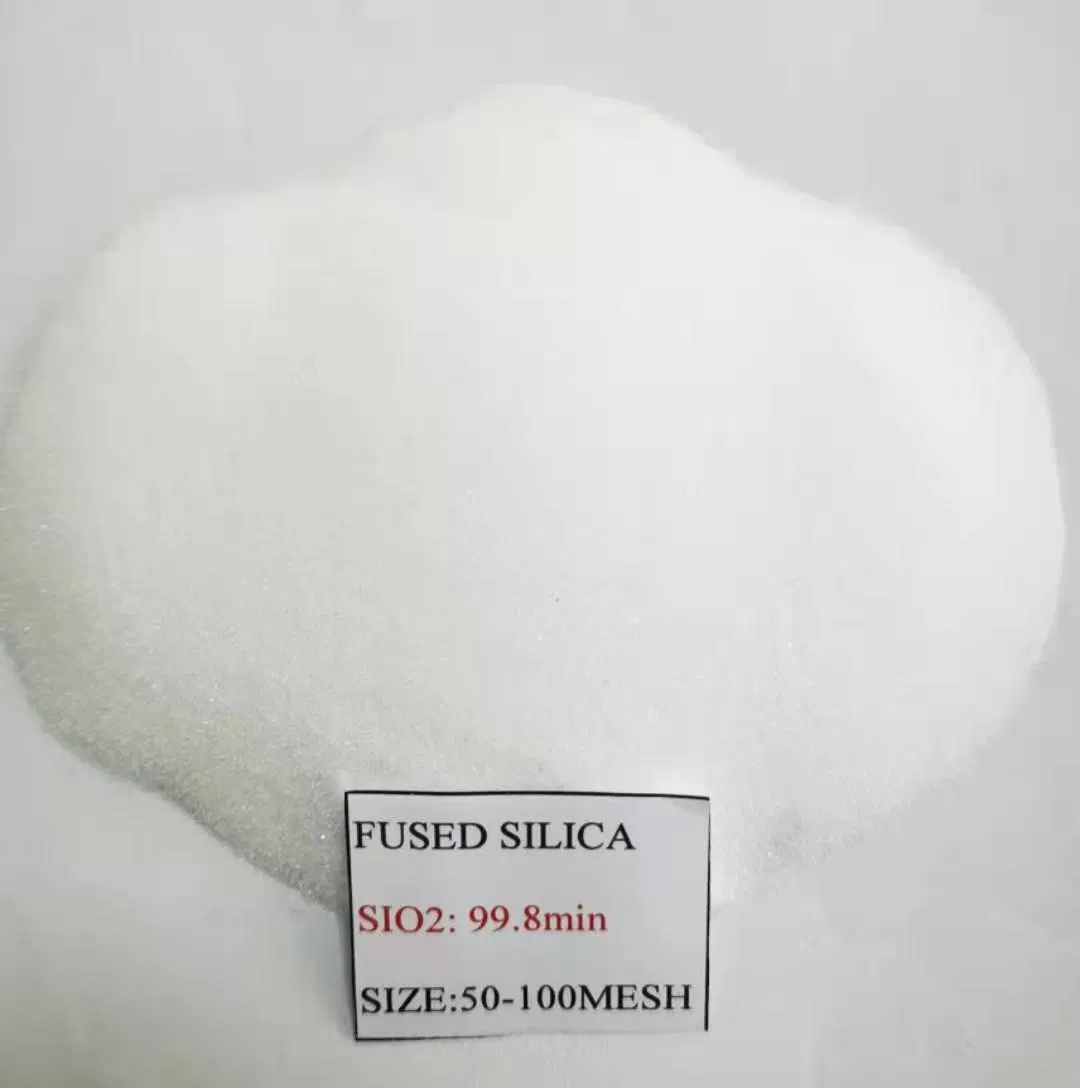

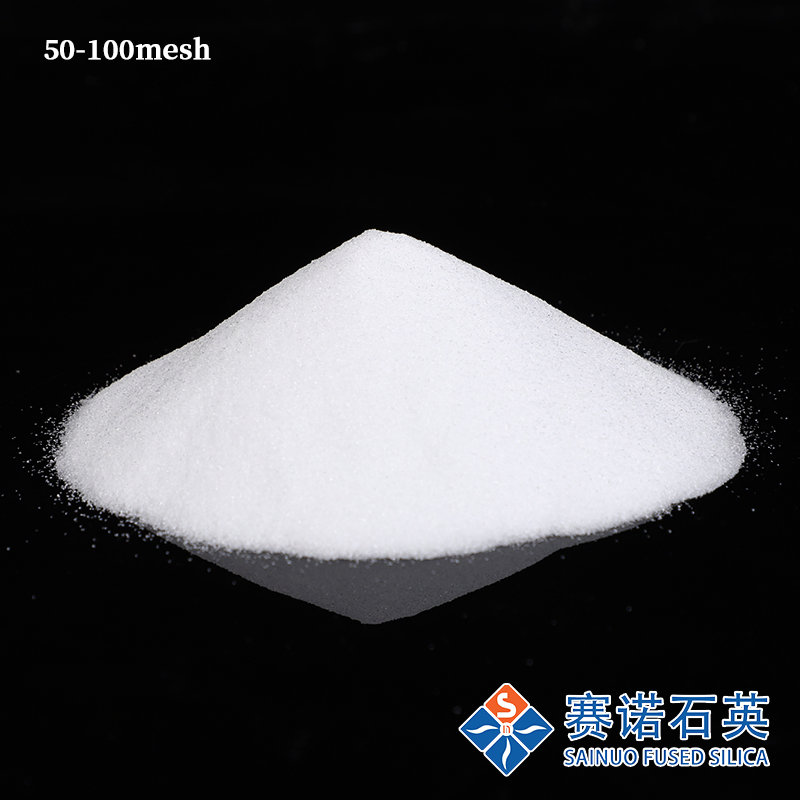

Top Grade a Quartz 50-100 Mesh Fused Silica Sand with Sio2 99.95%
Top Grade a Quartz 50-100 Mesh Fused Silica Sand with Sio2 99.95%
Top Grade a Quartz 50-100 Mesh Fused Silica Sand with Sio2 99.95%
Top Grade a Quartz 50-100 Mesh Fused Silica Sand with Sio2 99.95%
Top Grade a Quartz 50-100 Mesh Fused Silica Sand with Sio2 99.95%
1 / 5
Top Grade a Quartz 50-100 Mesh Fused Silica Sand with Sio2 99.95%
Top Grade a Quartz 50-100 Mesh Fused Silica Sand with Sio2 99.95%
Top Grade a Quartz 50-100 Mesh Fused Silica Sand with Sio2 99.95%
Top Grade a Quartz 50-100 Mesh Fused Silica Sand with Sio2 99.95%
Top Grade a Quartz 50-100 Mesh Fused Silica Sand with Sio2 99.95%

Top Grade a Quartz 50-100 Mesh Fused Silica Sand with Sio2 99.95%

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊

Basic Specifications

Model NO.
Fused Silica Sand
Type
Fused Silica Sand
Density
2.2 G/M3
Hardness
7
Thermal Expansion
0.1
pH Value
6
Softening Point
1700°C
Specification
SIO2: 99.9% min
HS Code
3207400000
Package Size
100cm * 100cm * 90cm
💡

Product Overview

Fused Silica First Grade (Grade A) is produced using high-purity quartz stone. Through a pickling treatment and high-temperature transformation at 1800ºC in a resistance furnace, crystalline silica is converted into amorphous silica. The resulting product is processed mechanically for iron removal and screening into various blocks, particles, and powders.

Fused Silica Sand 1
Fused Silica Sand 2

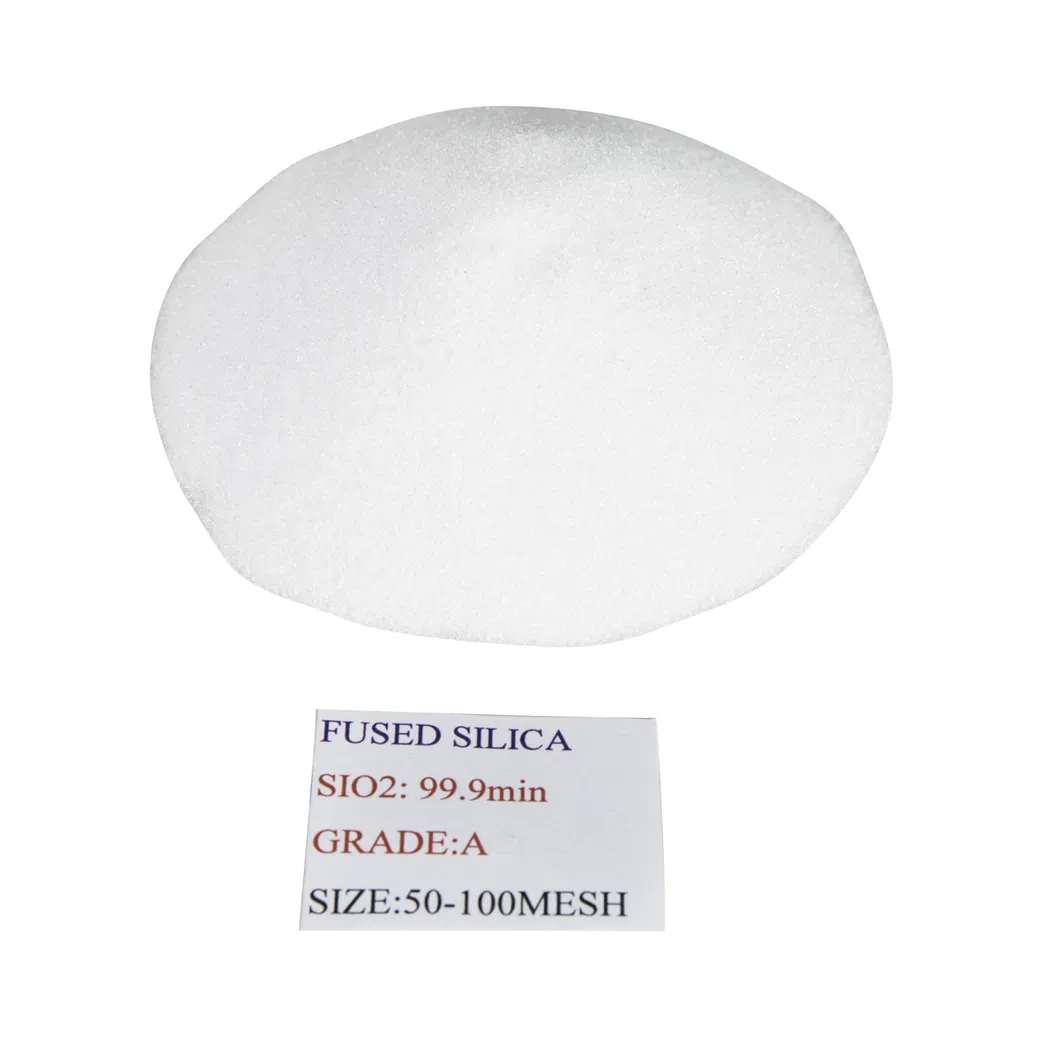

Fused Silica Sand 3
✅

Key Characteristics

Thermal StabilityNear zero thermal expansion and extremely low thermal conductivity.
High PuritySiO2 content is maintained above 99.95%.
Stable ChemistryChemical properties remain stable under various industrial conditions.
Superior Particle ShapeStable particle size distribution with high packing density.
🧪

Chemical Composition

Component Typical Values
SiO299.95%
Al2O3140ppm
Fe2O320ppm
Na2O25ppm
K2O25ppm
TiO216ppm
CaO18ppm
MgO10ppm
📏

Availability Specifications

1. Block: 0-60 mm

2. Granular Sizes:

8-5mm5-3mm3-1mm1-0mm
4-20 mesh50-100 mesh100-200 mesh10-20 mesh
20-40 mesh40-70 mesh--

3. Powder: 70-140 mesh, 200 mesh, 325 mesh, 500 mesh, 1500 mesh, 3000 mesh.

📸

Detailed Photos & Workshop

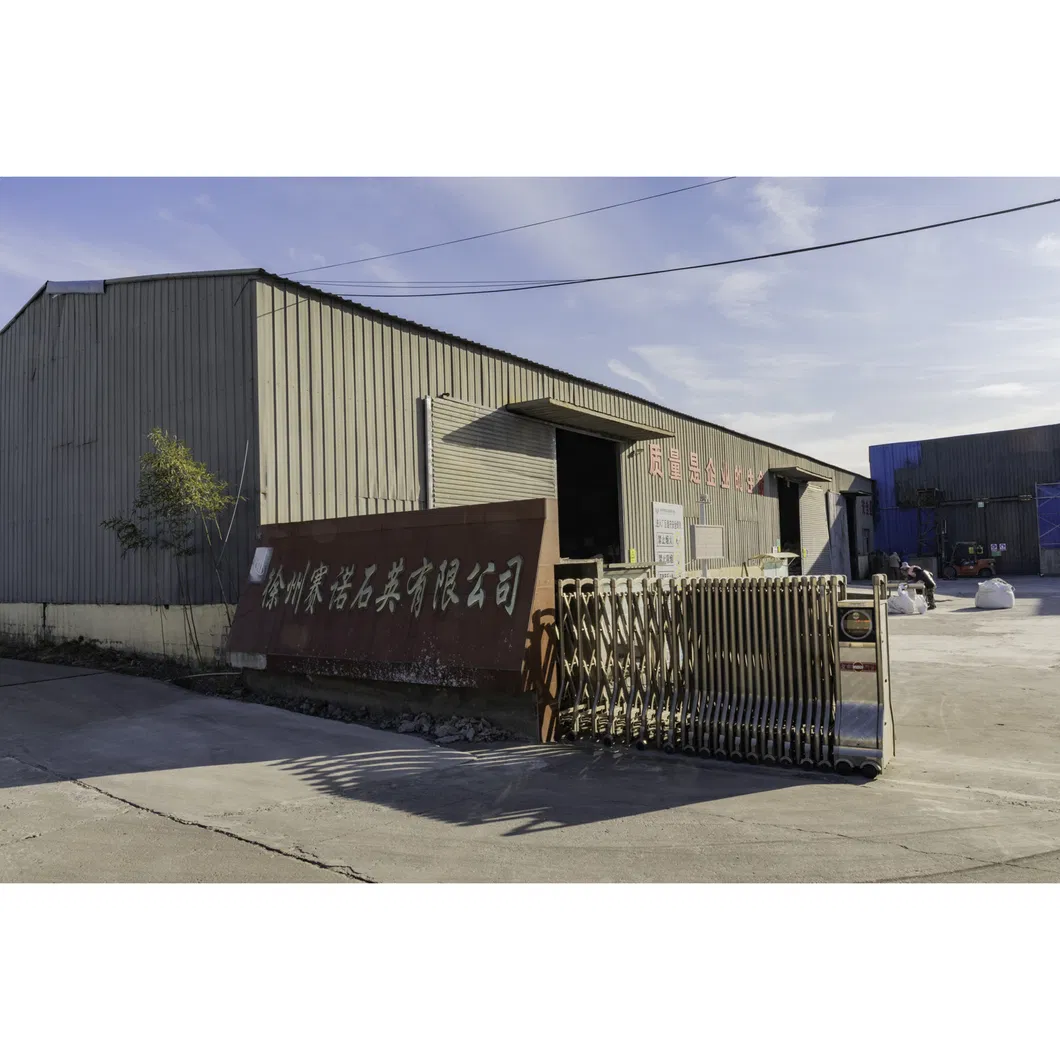

Fused Silica Detail 1

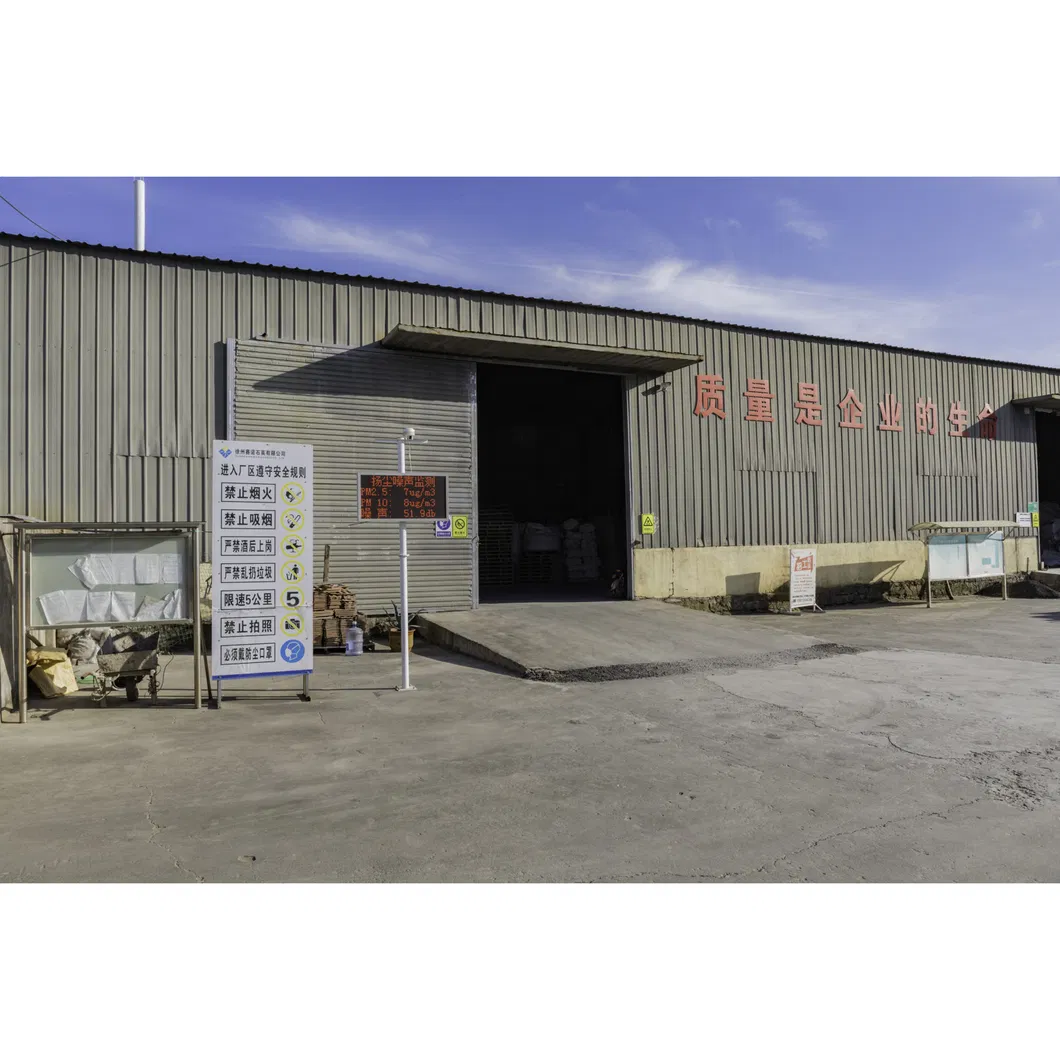

Fused Silica Detail 2

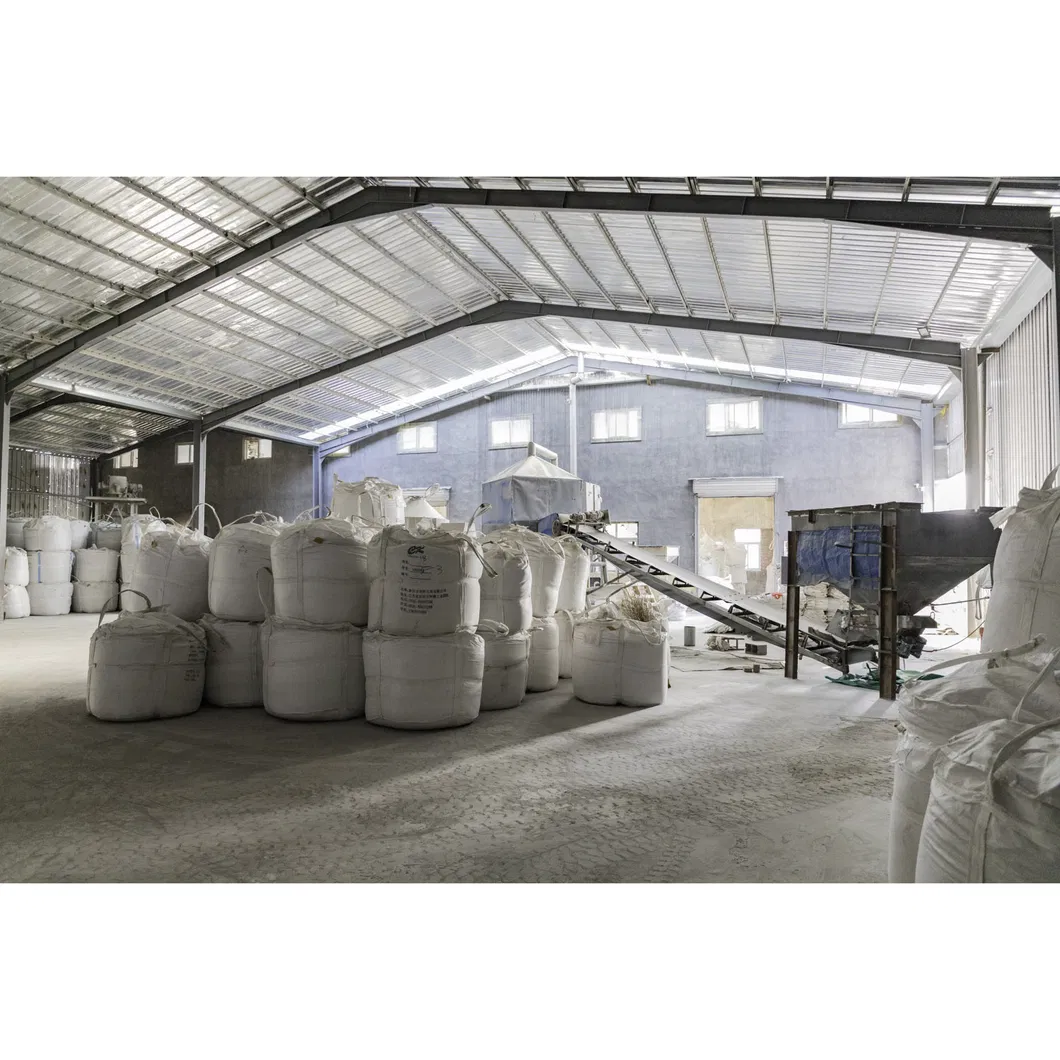

Workshop 1

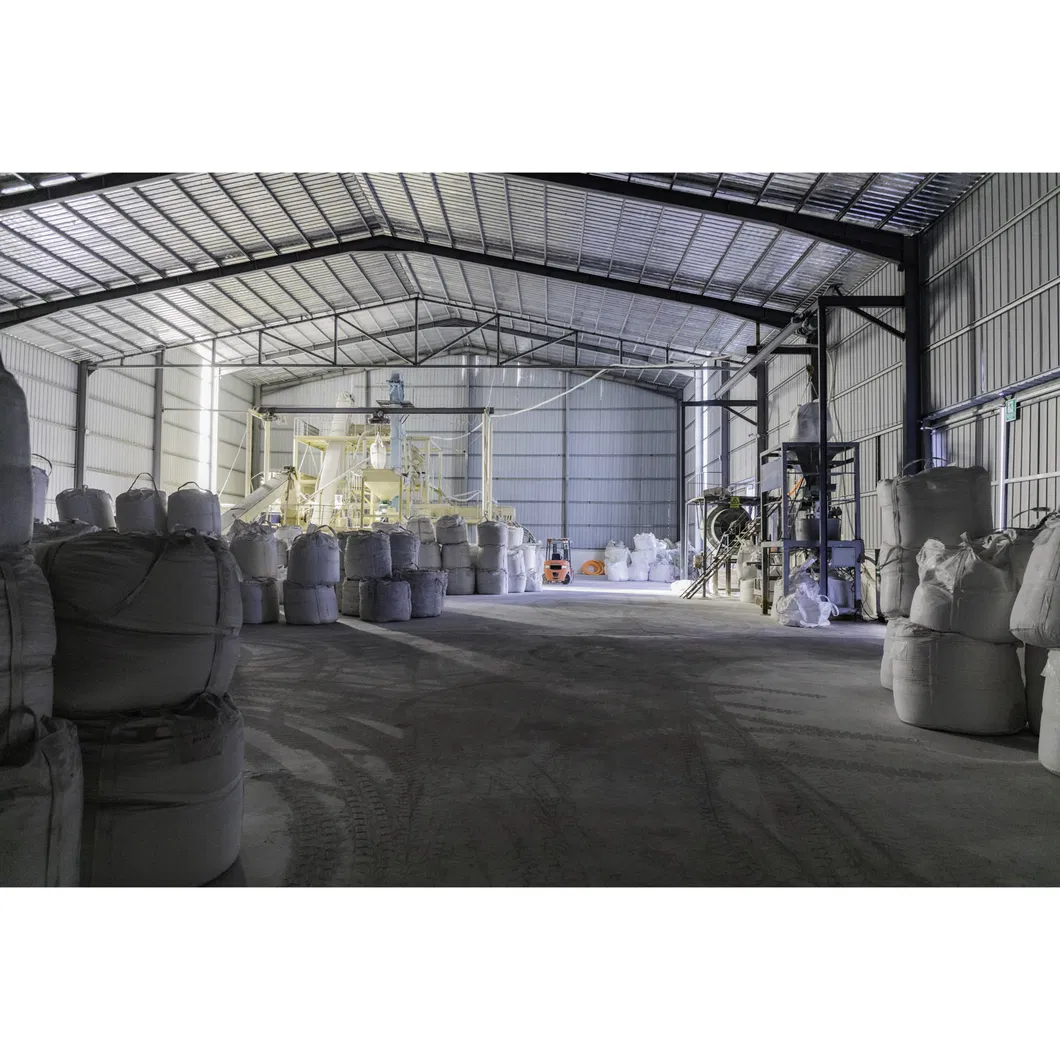

Workshop 2
📜

Certifications

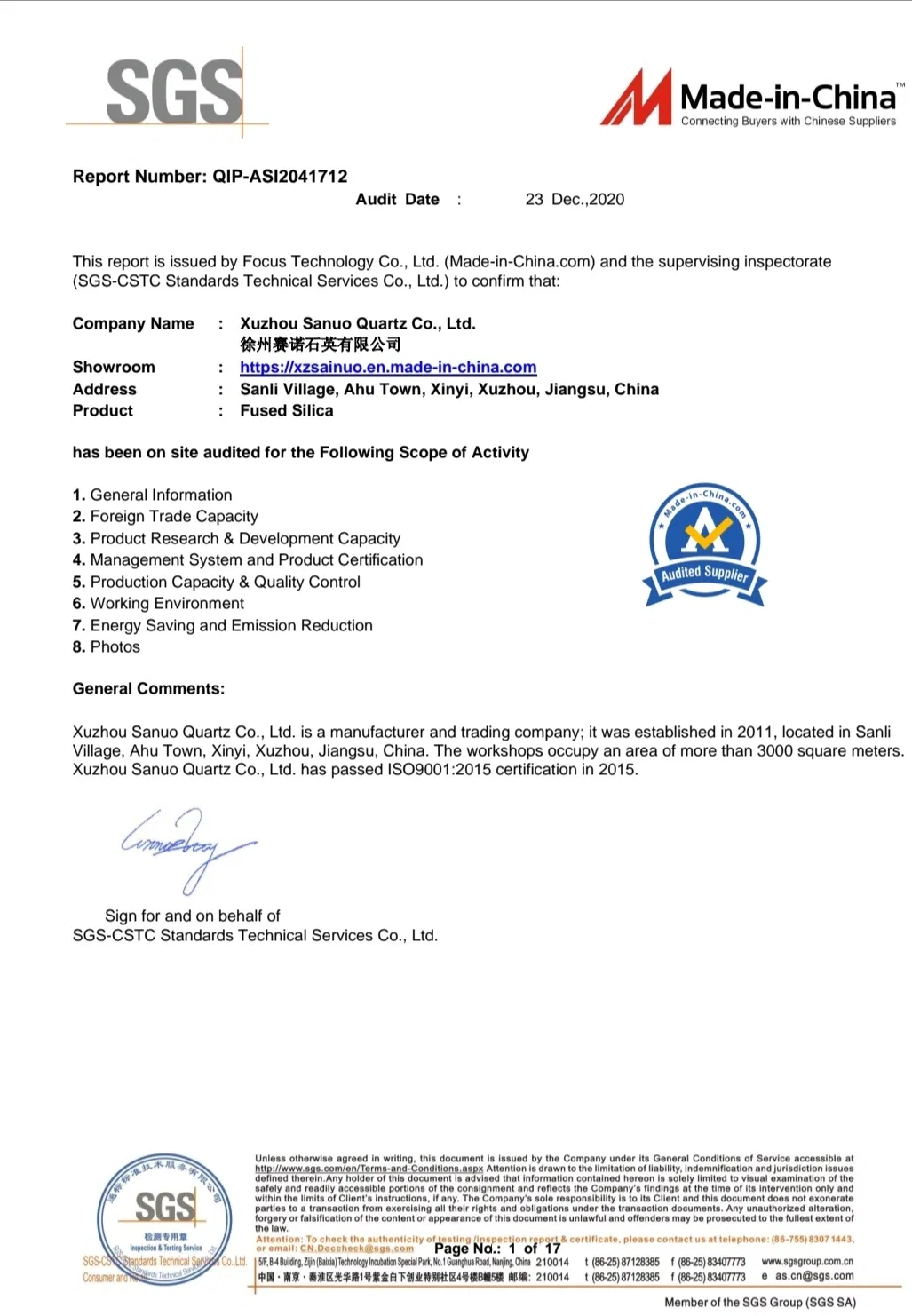

Certification 1

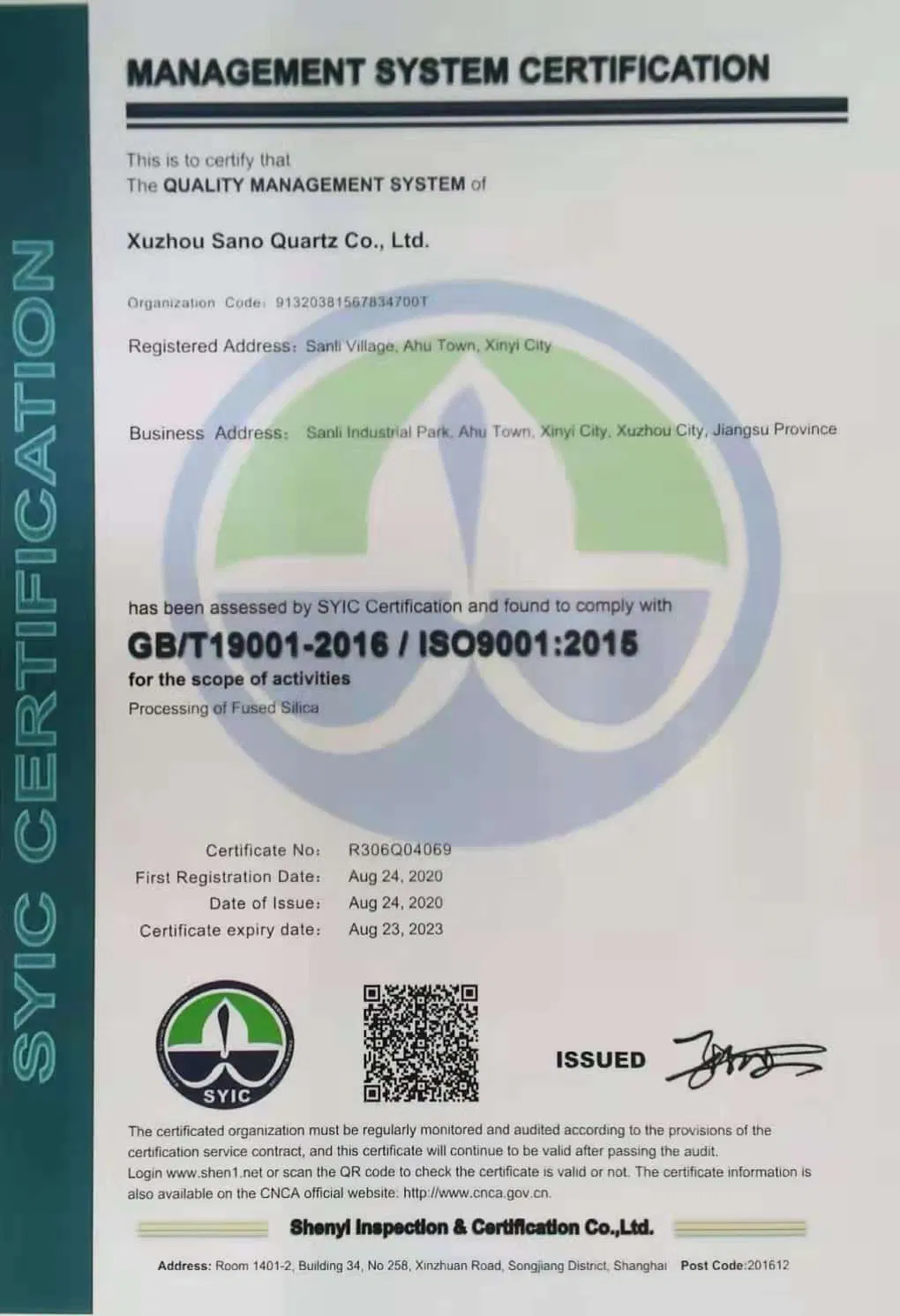

Certification 2
🛠️

Installation Instructions

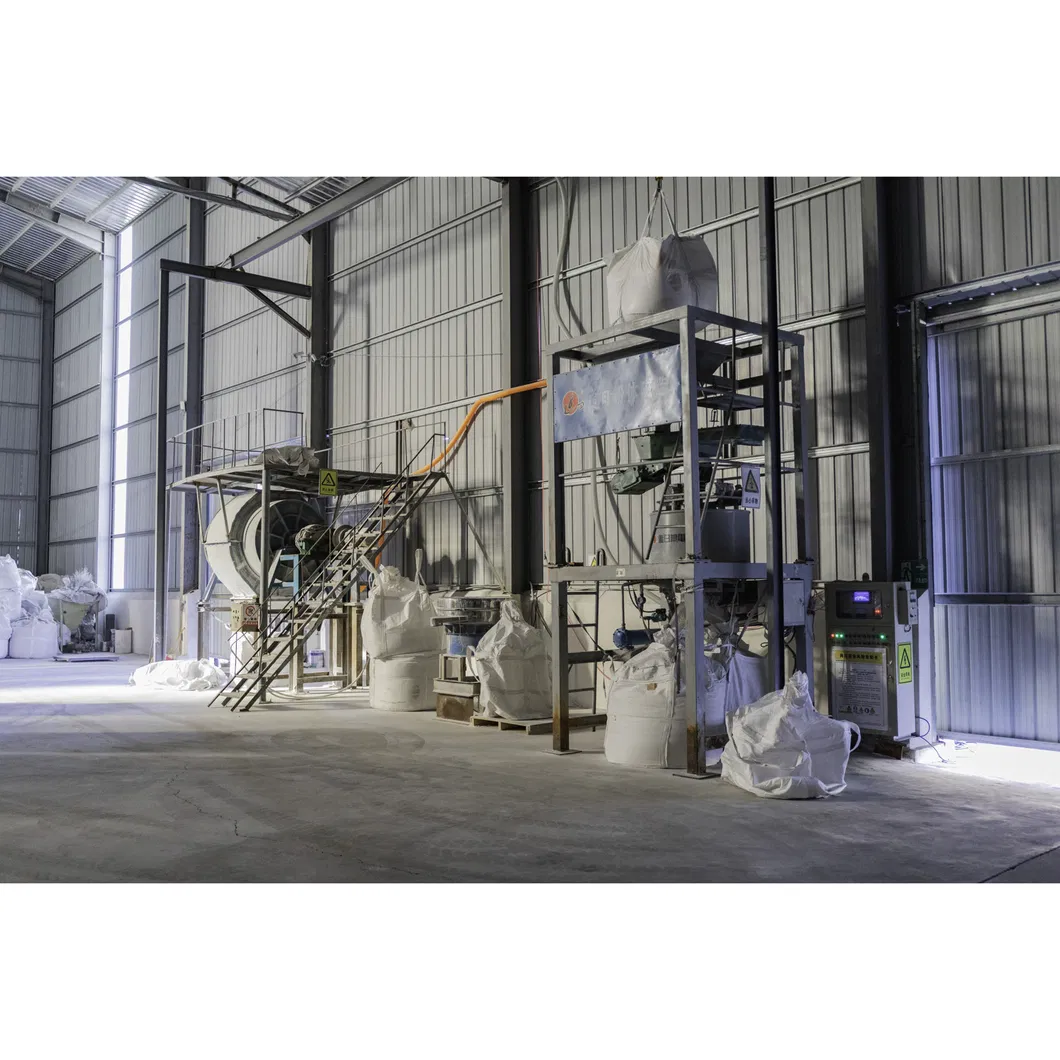

Installation 1

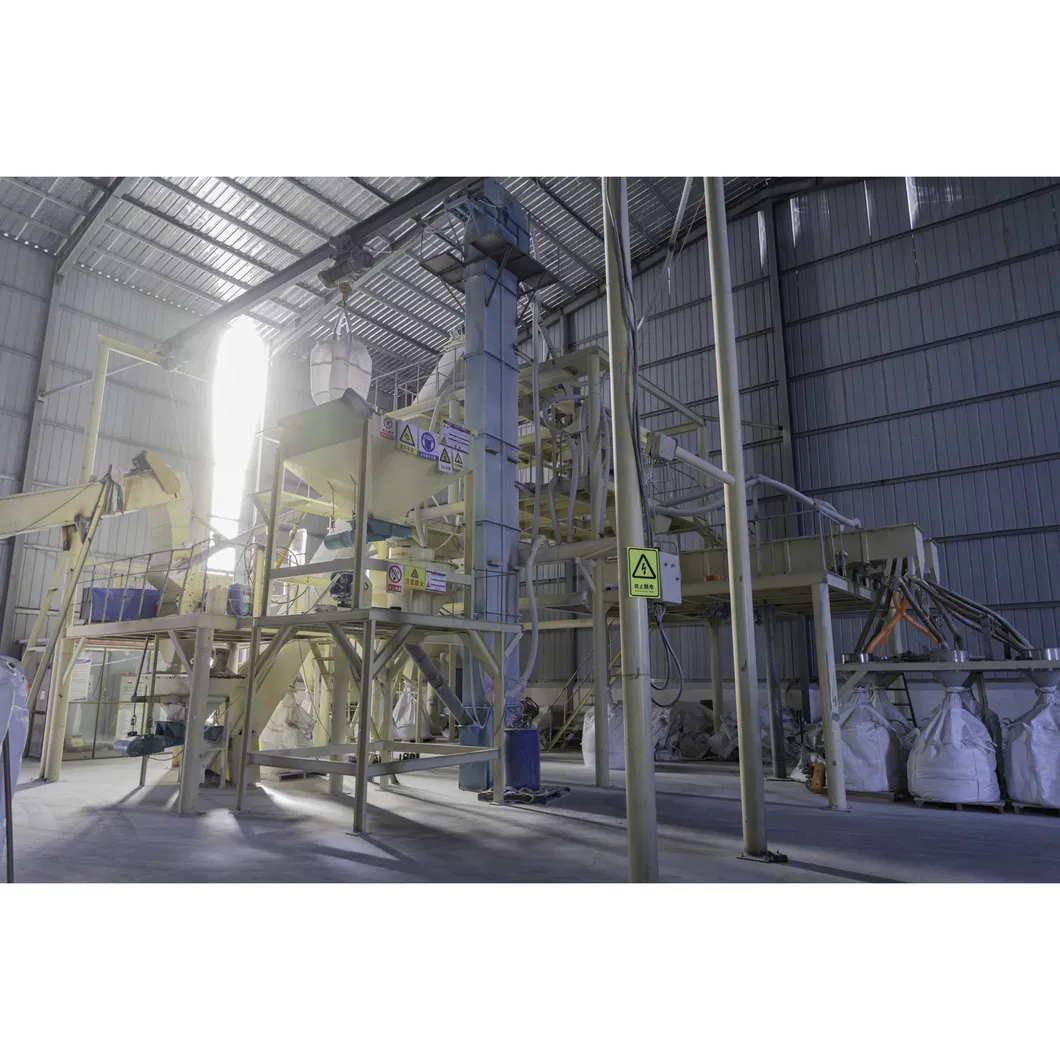

Installation 2

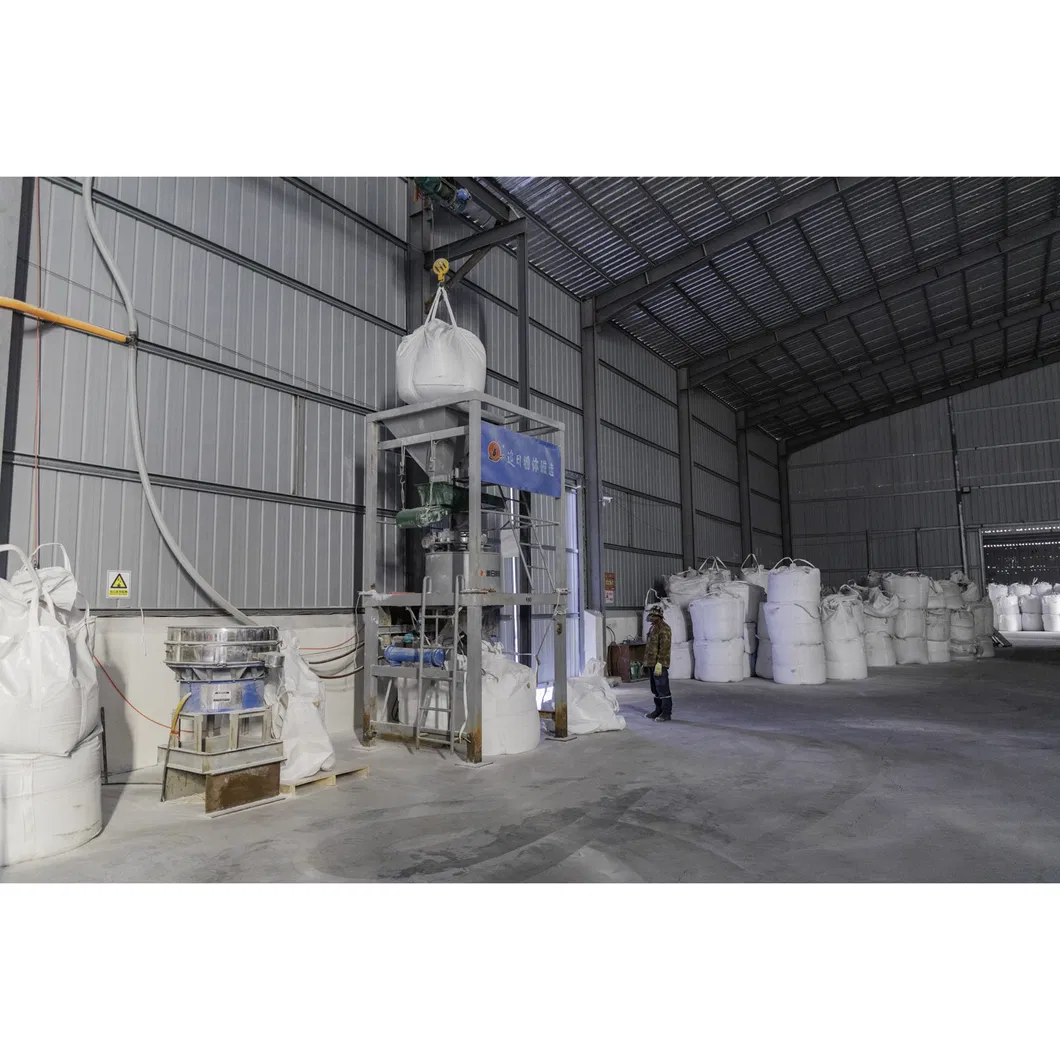

Installation 3
❓

Frequently Asked Questions

What is the SiO2 purity of this Grade A Fused Silica?
The SiO2 content is guaranteed to be above 99.95%, making it ideal for high-precision industrial applications.
How does the material perform under high temperatures?
It features a softening point of 1700°C and a melting point of 1750°C, with near-zero thermal expansion and excellent thermal stability.
In what sizes can I purchase the fused silica?
We provide blocks (0-60mm), various granular mesh sizes (e.g., 50-100 mesh), and fine powders ranging up to 3000 mesh.
Is this product suitable for refractory materials?
Yes, its low thermal conductivity and chemical stability make it a preferred choice for unshaped refractory materials and crucibles.
What is the density and hardness of the fused silica sand?
The material has a density of 2.2 g/m³ and a Mohs hardness of 7.
How is the product packaged for transport?
It is typically packaged in 1000kg bags with standard dimensions of 100cm x 100cm x 90cm for secure bulk shipping.
