Basic Information
Impeller Number
Multistage Pump
Working Pressure
High Pressure Pump
Influent Type
Single Suction Pump
Product Introduction

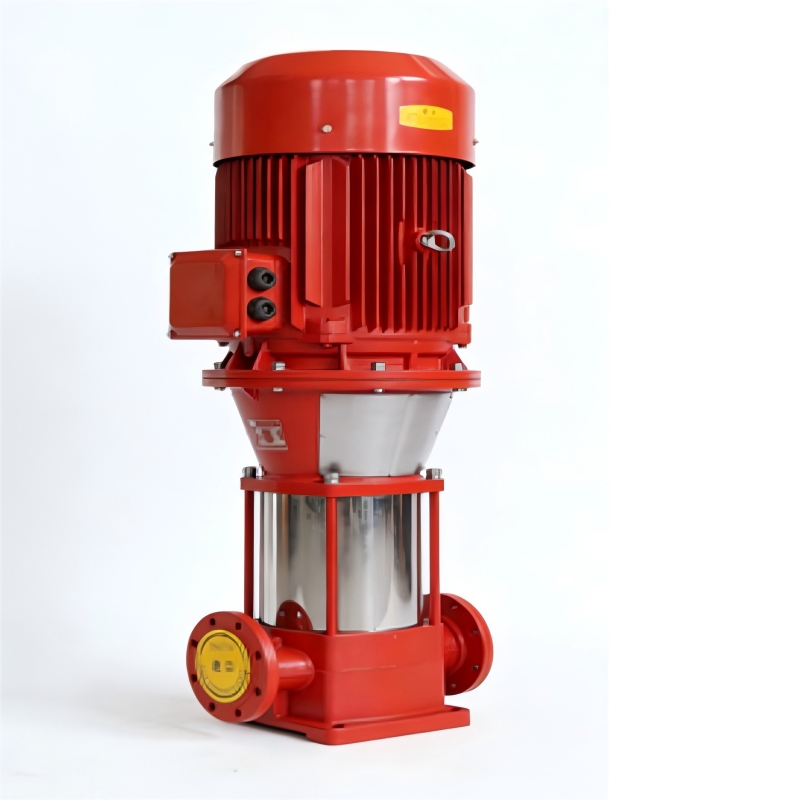

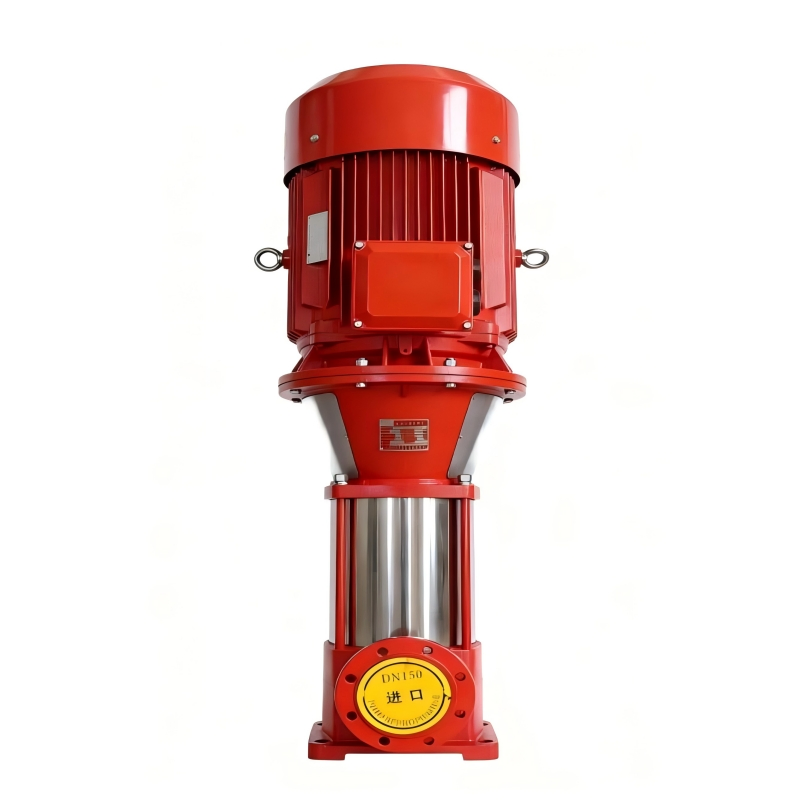

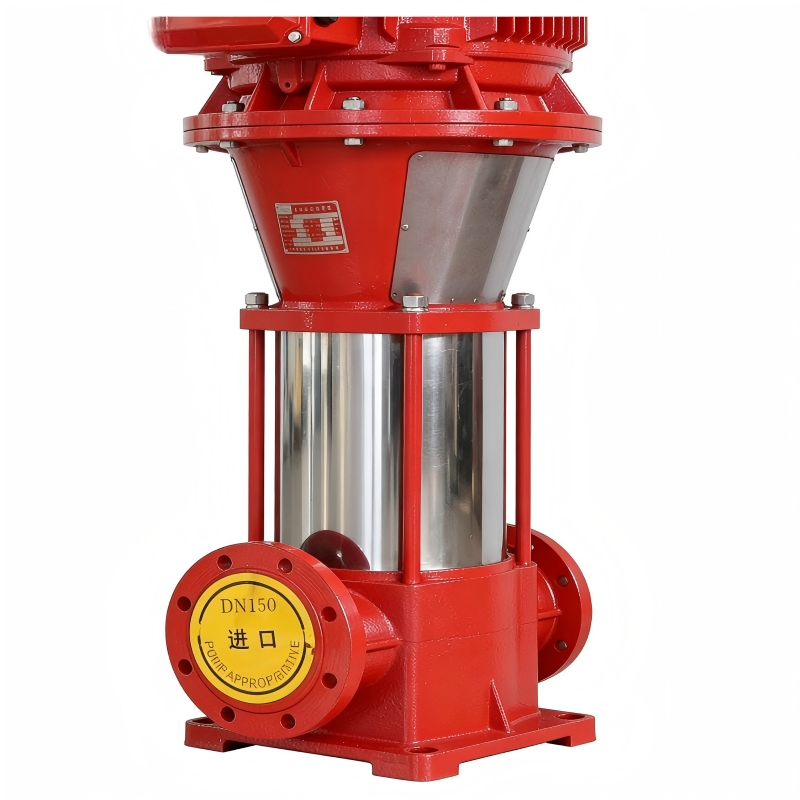

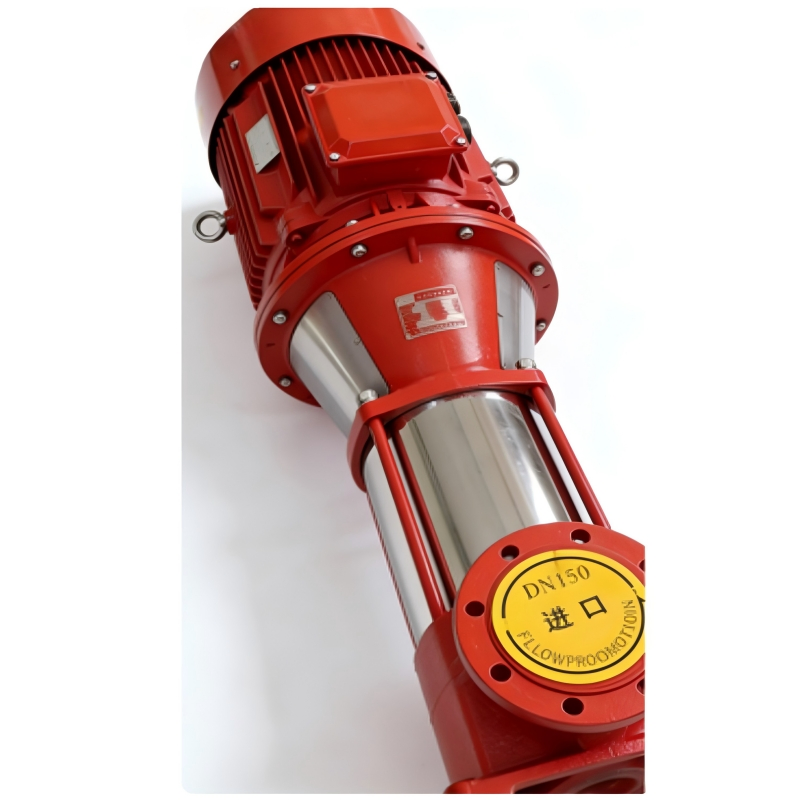

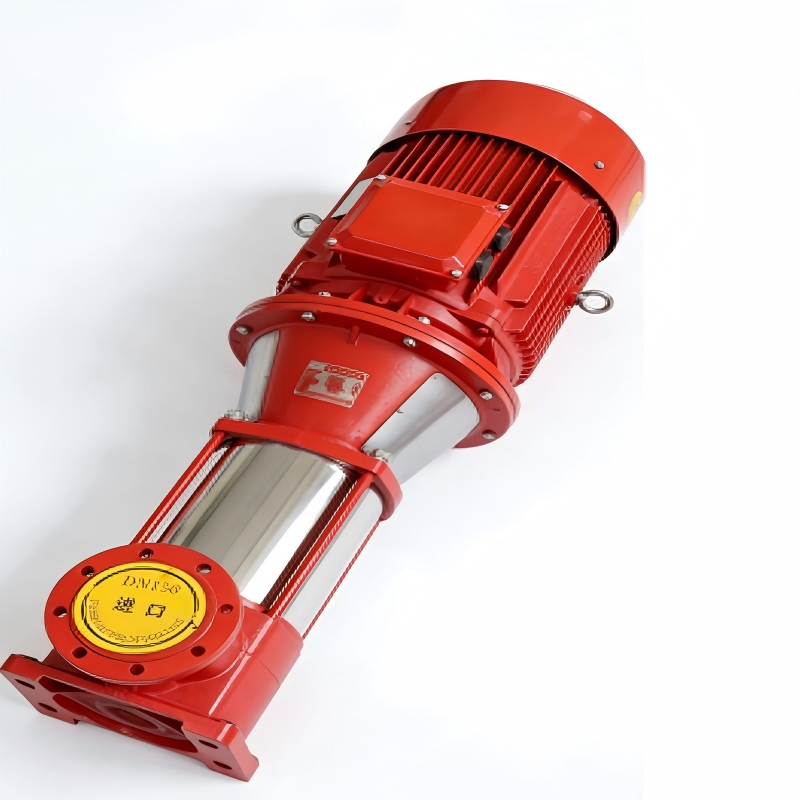

The vertical multi-stage fire pump unit features a compact structure, small size, and minimal footprint. It adopts a vertical multi-stage segmented design, where the inlet section, intermediate stages, and outlet section are tightly bolted together into an integrated pump. Each stage is equipped with an impeller and a guide vane, with axial forces balanced hydraulically. Any residual axial force is borne by one or a pair of ball bearings. The pump operates with low noise and vibration, ensuring smooth and stable performance. Viewed from the motor end, the pump rotates clockwise. The suction inlet is located at the bottom, and the discharge outlet at the top, with their relative positions adjustable to 0°, 90°, 180°, or 270° upon user request during factory assembly. The pump is driven by a vertical motor via a flexible coupling. Shaft sealing options include soft packing or mechanical seals.
Frequently Asked Questions
What information should I provide for an accurate offer?
Normally, we need the pump flow, total head, pump material (stator length/wire type), voltage, and frequency to quote exactly what you need.
What is the typical delivery time?
Samples can be sent within 7-10 days. Batch orders are typically shipped within 20 days after receiving the deposit payment.
Can you handle 60Hz frequency requirements?
Yes. While standard parameters are for 50Hz, we can provide specific 60Hz parameter data and requirements upon request.
Do you accept customized product orders?
Yes, we accept specific customized orders if you can provide us with your detailed technical requirements.
How do you ensure the pump does not leak?
We perform 100% long-duration testing on every pump to ensure there are no leakage problems before shipping.
Do you provide after-sales and installation guidance?
Yes, our professional engineers provide free video guidance for installation and after-sales issues to all customers.
