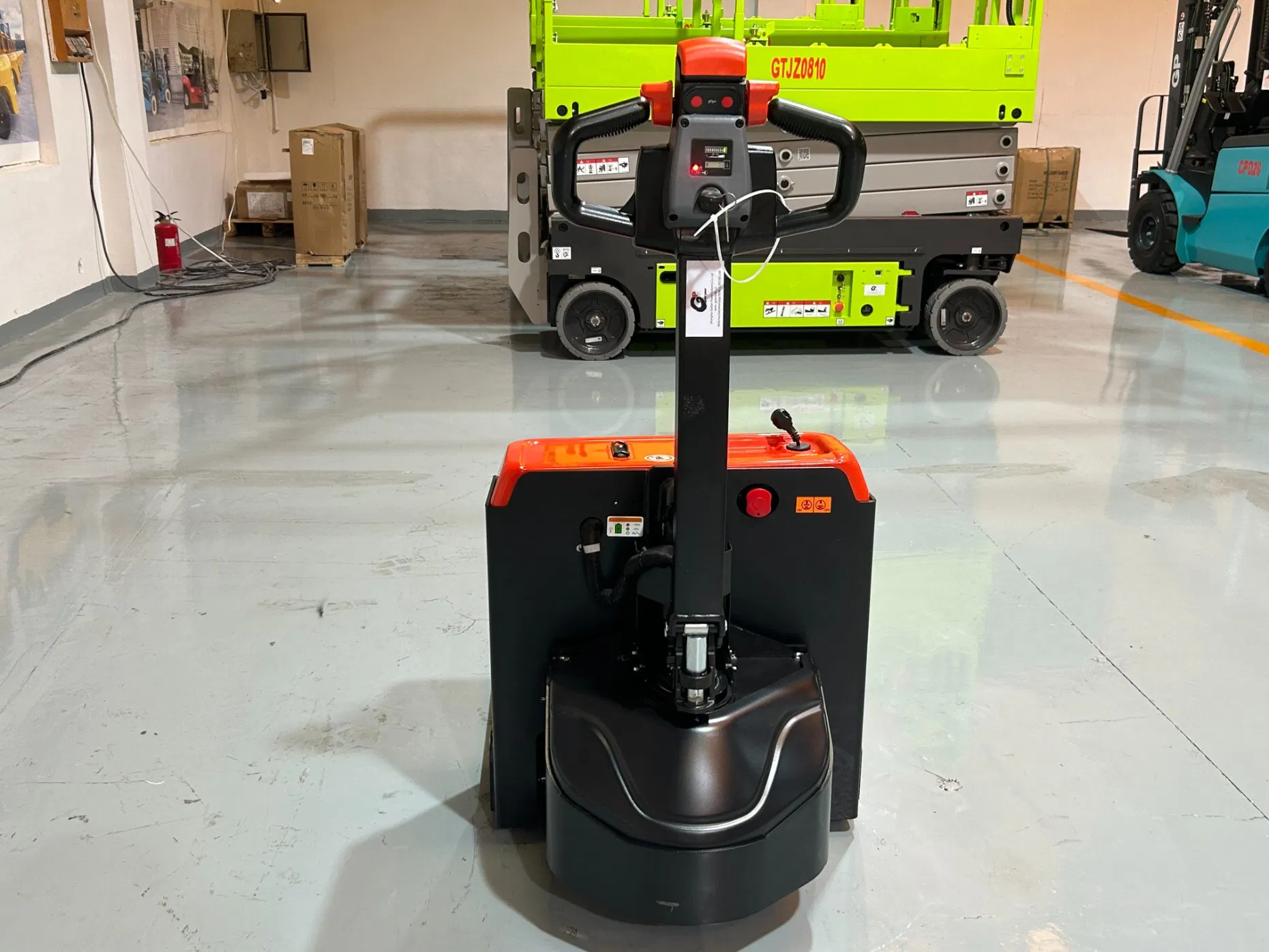

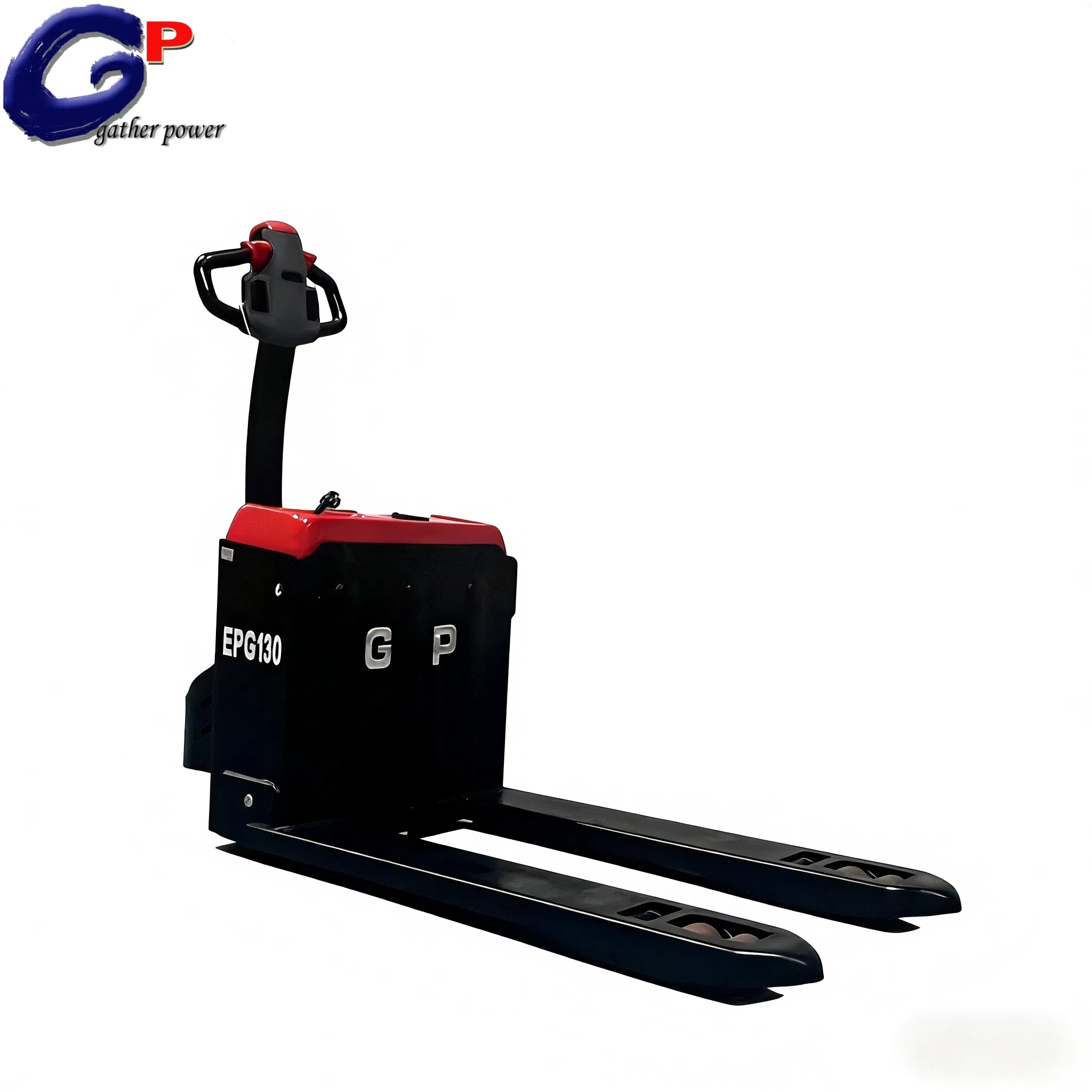

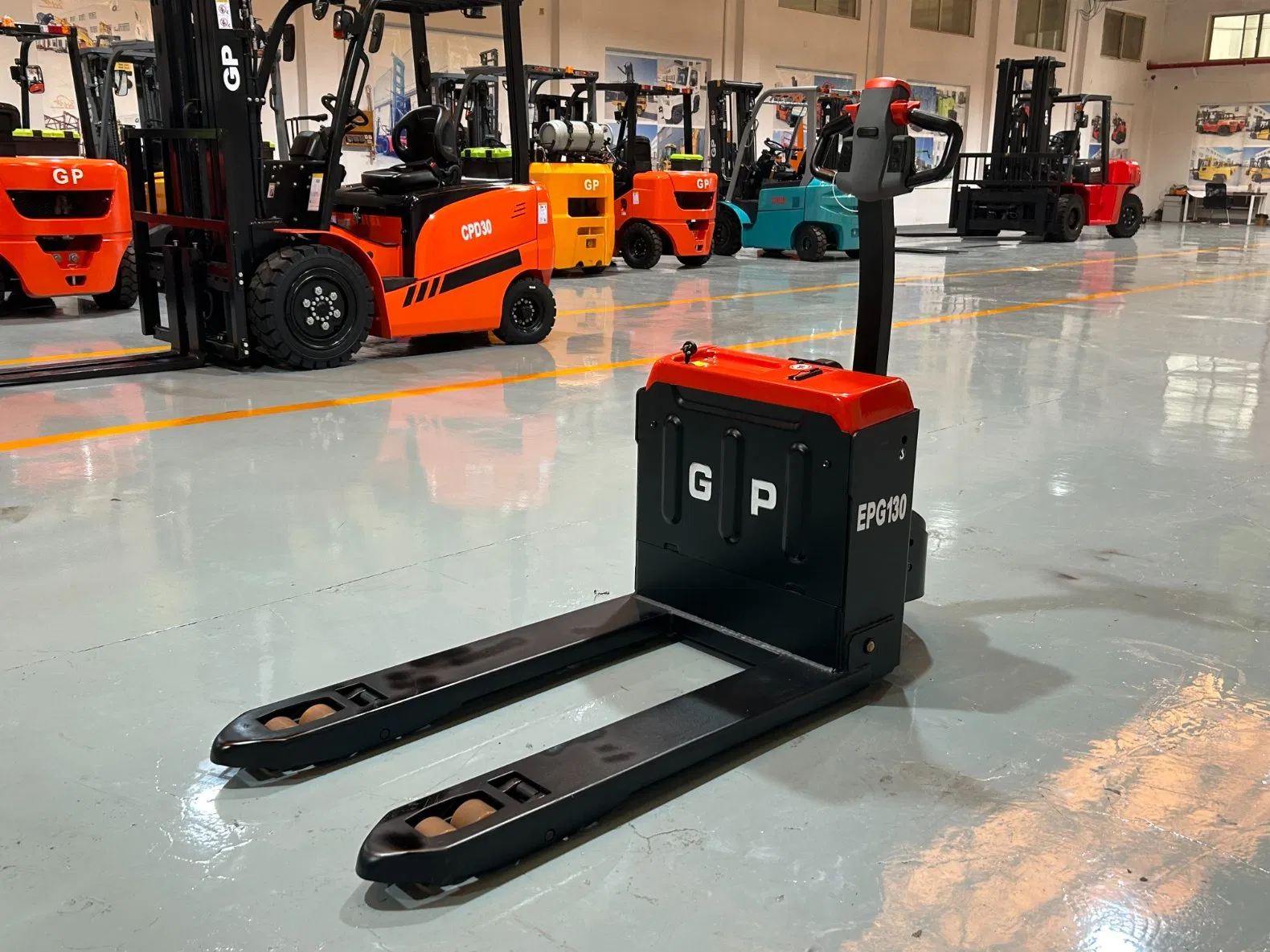

Fashion and Electric Walking Type 3t Electric Pallet Truck with Good Price Indoor
Fashion and Electric Walking Type 3t Electric Pallet Truck with Good Price Indoor
Fashion and Electric Walking Type 3t Electric Pallet Truck with Good Price Indoor
Fashion and Electric Walking Type 3t Electric Pallet Truck with Good Price Indoor
Fashion and Electric Walking Type 3t Electric Pallet Truck with Good Price Indoor
1 / 5
Fashion and Electric Walking Type 3t Electric Pallet Truck with Good Price Indoor
Fashion and Electric Walking Type 3t Electric Pallet Truck with Good Price Indoor
Fashion and Electric Walking Type 3t Electric Pallet Truck with Good Price Indoor
Fashion and Electric Walking Type 3t Electric Pallet Truck with Good Price Indoor
Fashion and Electric Walking Type 3t Electric Pallet Truck with Good Price Indoor

Fashion and Electric Walking Type 3t Electric Pallet Truck with Good Price Indoor

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
EPG130
Type
Powered Pallet Truck
Power
AC Motor
Load Capacity
1T - 3T (Standard 3000kg)
Fuel
Electric
Load center
500mm / 600mm
Lift height
205mm
Tire
PU Wheel
Condition
New
Application
Warehouse Material Handling
📦

Packaging & Delivery

Package Size
190.10cm * 77.00cm * 138.80cm
Gross Weight
650.000kg
⭐

Key Advantages

  • Electronic power steering system, light and low noise.
  • Drive unit floating bodies with patented design.
  • AC driving system, carbon brush-free and maintenance-free.
  • CURTIS controller and German REMA handle.
  • Imported waterproof electrical components.
  • Electromagnetic braking system for enhanced safety.
  • Stepless speed control system.
  • Controller with multiple automatic protection features.
  • Integrated hydraulic and power control system.
  • Emergency reversing device and emergency brake switch.
  • Lifting cylinders patented design with floating connection.
  • Long-life limit switch mounted on the mast.
Electric Pallet Truck Overview
📊

Technical Parameters

Parameter Item Unit Value (EPG130)
Operating type-Stand on / Walkie
Power source-Battery
Load capacityKg3000
Load centermm600
Service weightKg650
Wheel type-PU
Overall length (pedal away/on)mm1901 / 2321
Overall widthmm770
Fork dimension (L/W/T)mm1150 / 170 / 50
Min. turning radiusmm1642
Travel speed (laden/unladen)km/h5.5 / 6
Drive motor (AC)Kw2.2
Lift motor (DC)Kw2.8
Battery voltage/capacityV/Ah24 / 280
Controller type-CURTIS
📸

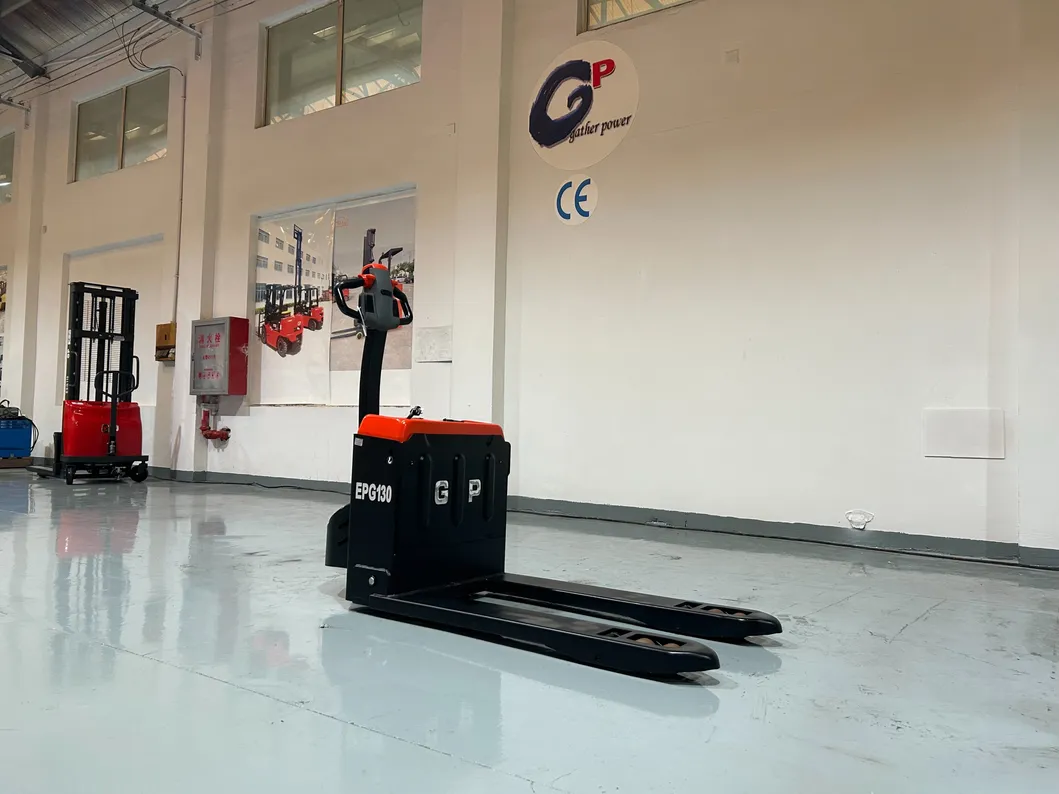

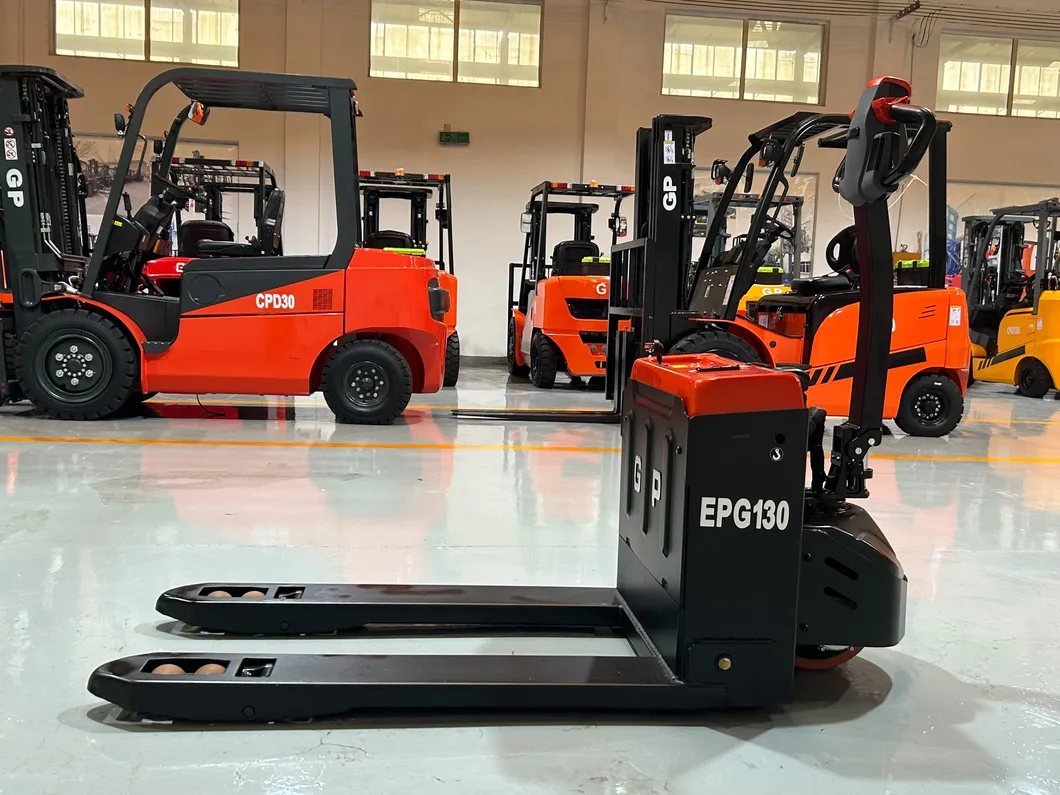

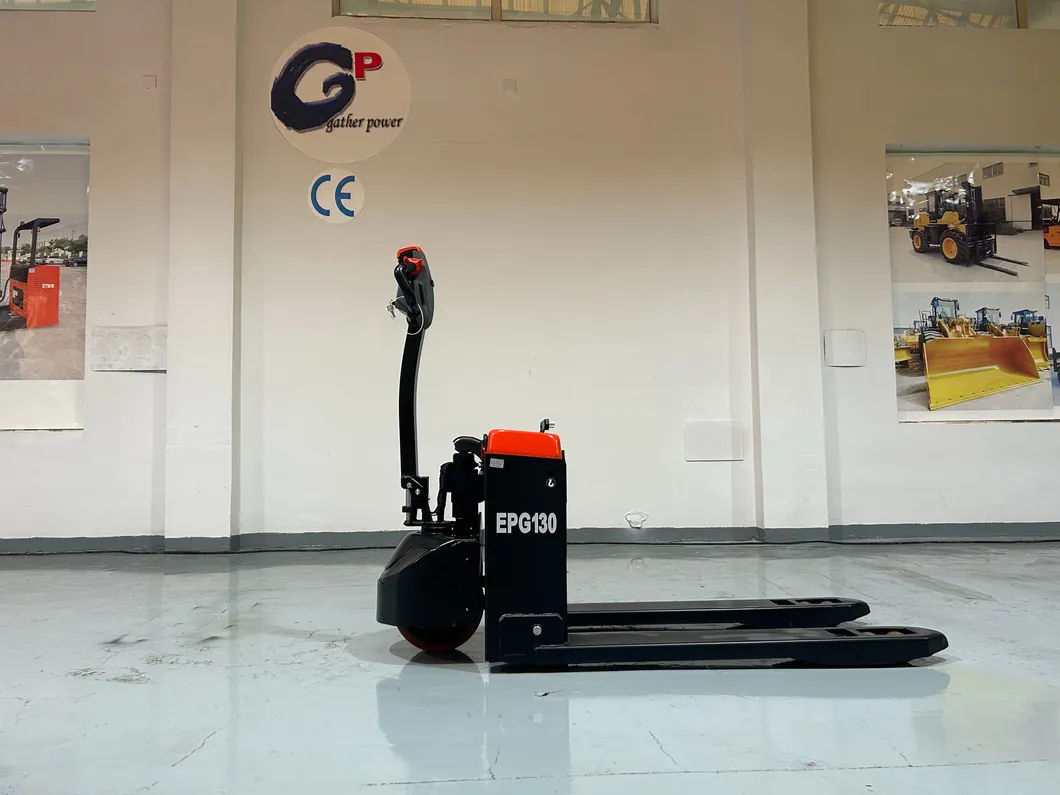

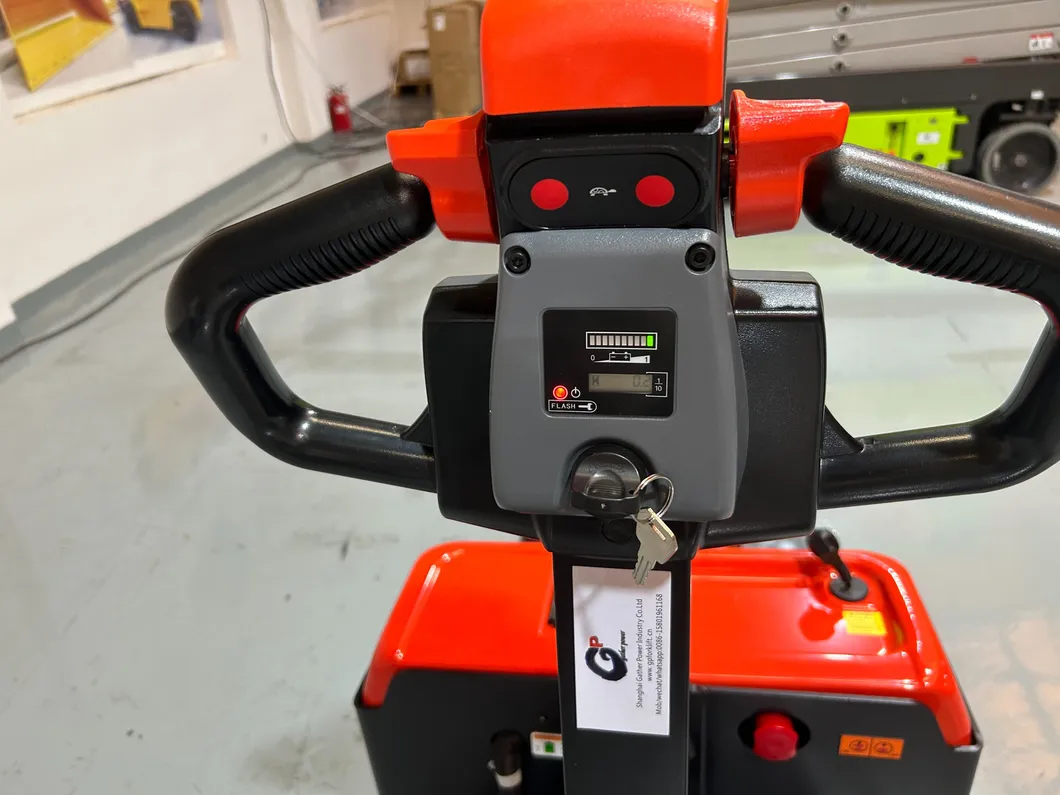

Product Gallery

Gallery 1 Gallery 2 Gallery 3
Gallery 4 Gallery 5 Gallery 6
Gallery 7 Gallery 8
Technical Drawing 1 Technical Drawing 2 Technical Drawing 3 Details 1 Details 2 Details 3 Details 4

Frequently Asked Questions

Q1: What is the maximum load capacity of the EPG130?
The EPG130 electric pallet truck is designed for high-capacity material handling with a standard loading capacity of 3000kg (3 tons).
Q2: Does this model come with power steering?
Yes, it features an electronic power steering system that is both lightweight and operates with low noise for comfortable handling.
Q3: What type of motor and controller does it use?
It uses a high-performance AC driving motor (2.2Kw) and a reliable CURTIS controller to ensure smooth speed control and maintenance-free operation.
Q4: Is the pallet truck suitable for indoor warehouse use?
Absolutely. With its PU wheels and compact turning radius of 1642mm, it is specifically optimized for indoor warehouse material handling.
Q5: What are the safety features included?
Safety features include an electromagnetic braking system, an emergency reversing device, an emergency brake switch, and multiple automatic protection circuits within the controller.
Q6: What is the battery specification for this electric truck?
The unit is powered by a 24V battery with a capacity of 280Ah, providing sufficient power for demanding shifts.
