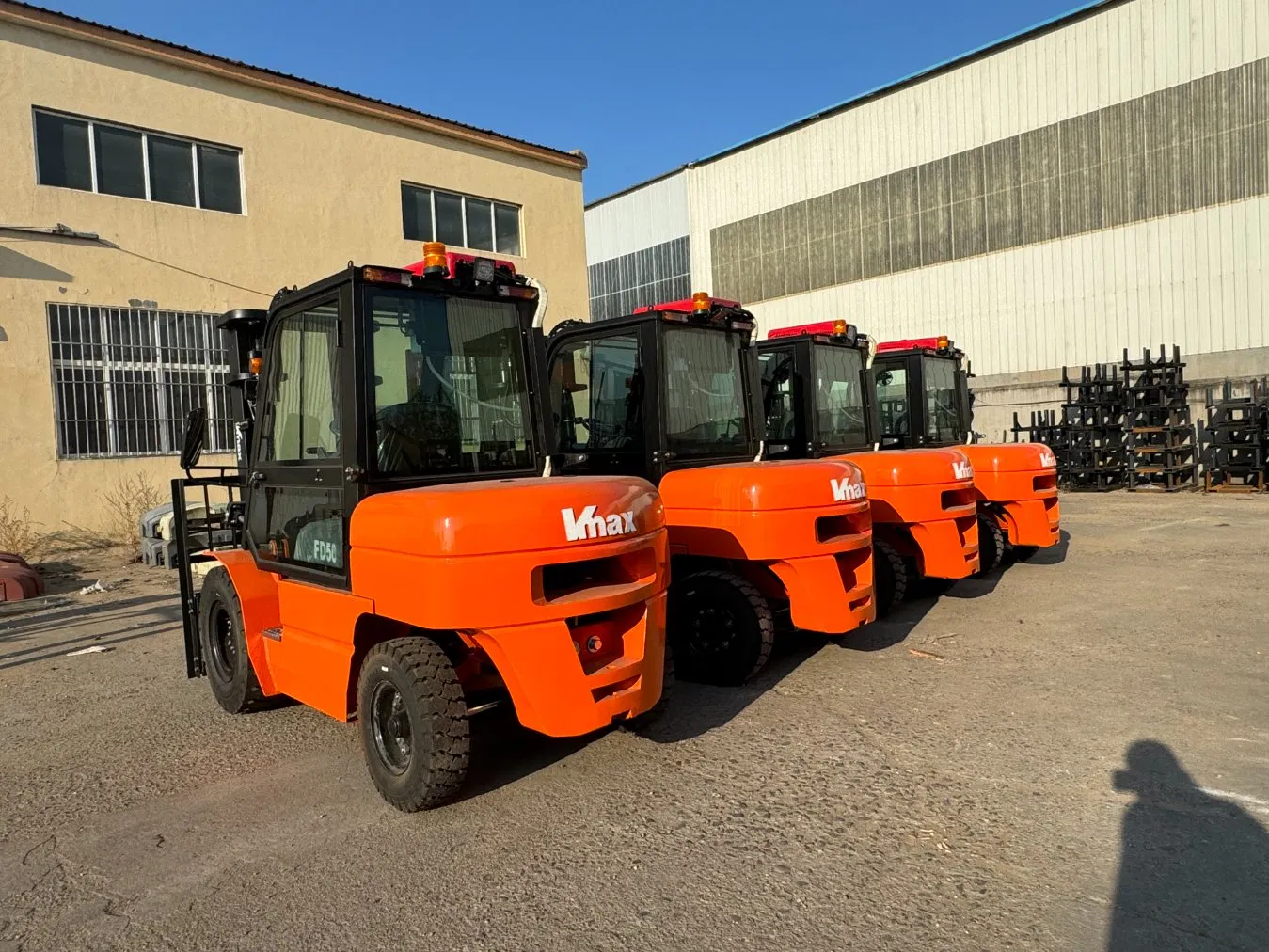

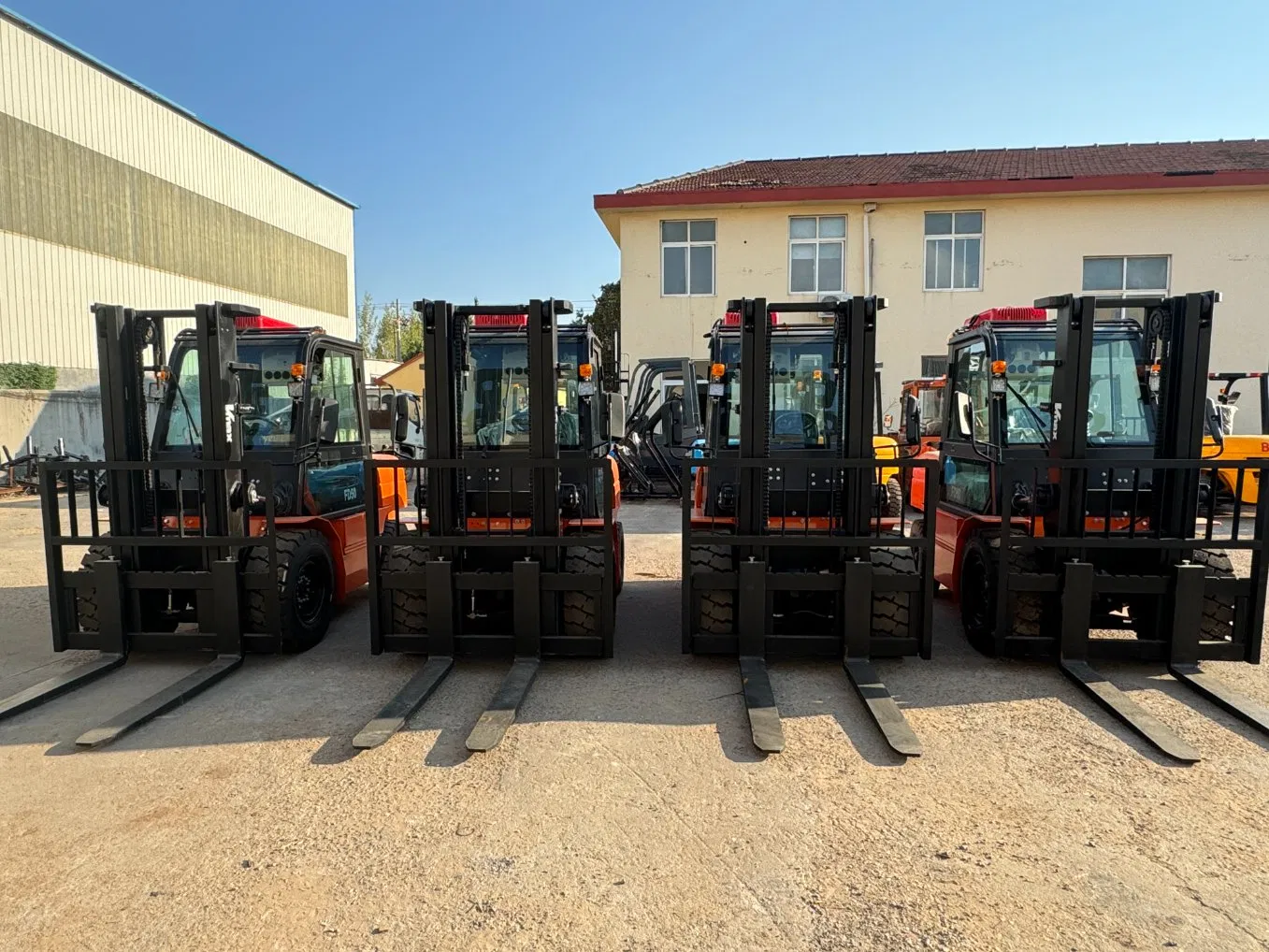

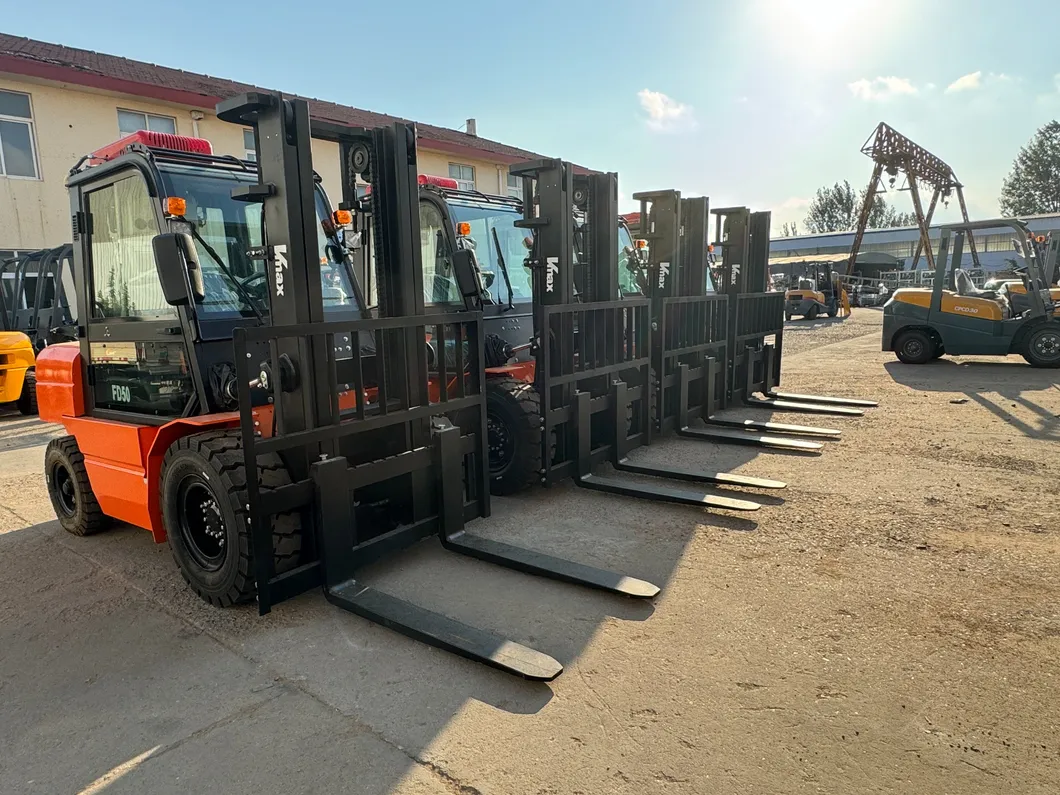

1. Diesel Forklift Trucks are widely used in ports, stations, airports, freight yards, factory workshops, warehouses, and distribution centers. They are capable of entering cabins, carriages, and containers for pallet cargo loading, unloading, and handling operations, making them essential equipment for container and pallet transportation.
2. These forklifts are typically utilized outdoors or in workshops where there are no restrictive requirements for exhaust emissions and noise. With the convenience of fuel replenishment, they support continuous long-term operation even in harsh environments, such as rainy conditions.
3. Built on the working principles of a diesel engine, these trucks drive both the walking and cargo lifting systems through four strokes: intake, compression, combustion, and exhaust. Key advantages include strong power, economic practicality, and high durability.
| Item | Characteristic | Unit | FD40S | FD40 | FD45 | FD50S |
|---|---|---|---|---|---|---|
| 1 | Power Type | - | Diesel | |||
| 2 | Rated Capacity | kg | 4000 | 4000 | 4500 | 5000 |
| 3 | Load Centre | mm | 500 | 500 | 500 | 500 |
| 4 | Lift Height | mm | 3000 | 3000 | 3000 | 3000 |
| 5 | Overall Width | mm | 1410 | 1490 | 1490 | 1490 |
| 6 | Travel Speed (Unladen) | km/h | 20 | 24 | 24 | 24 |
| 7 | Self Weight | kg | 5100 | 6220 | 6500 | 6720 |
