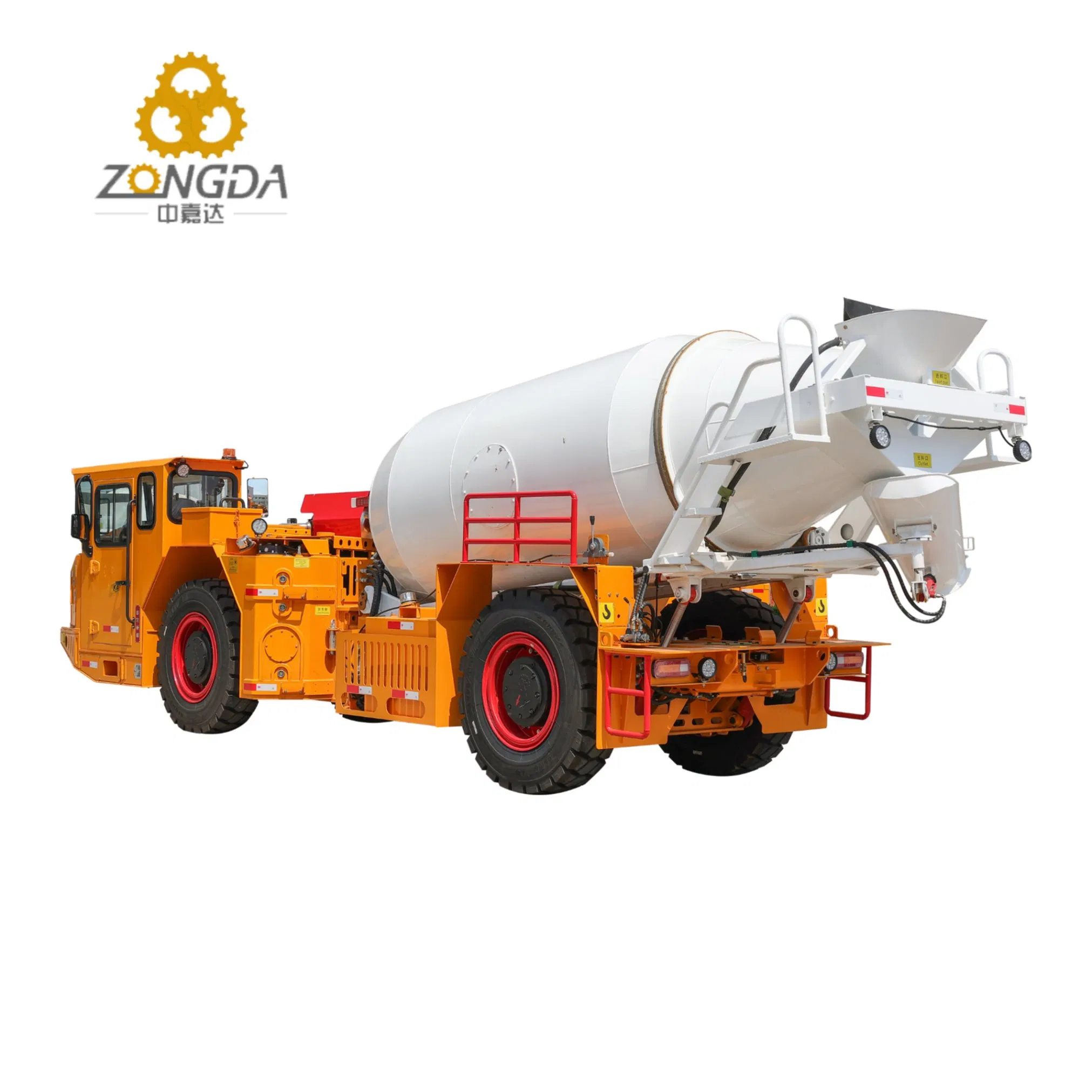

Turbo Truck
1 / 5
| Model NO. | ZDCM-5 |
| Energy Saving | Energy Saving |
| Warranty | 1 Year |
| Color | Yellow |
| Type | Underground Vehicle |
| Structure | Underground Concrete Mixer Truck |
| Material | Wear-Resistant Carbon Steel |
| Origin | China |
| Whole Machine Specifications | |
| Rated Effective Volume | 5m³ |
| Max Driving Speed | 28 km/h (Grade IV) |
| Max Climbing Ability | 25% (heavy load) |

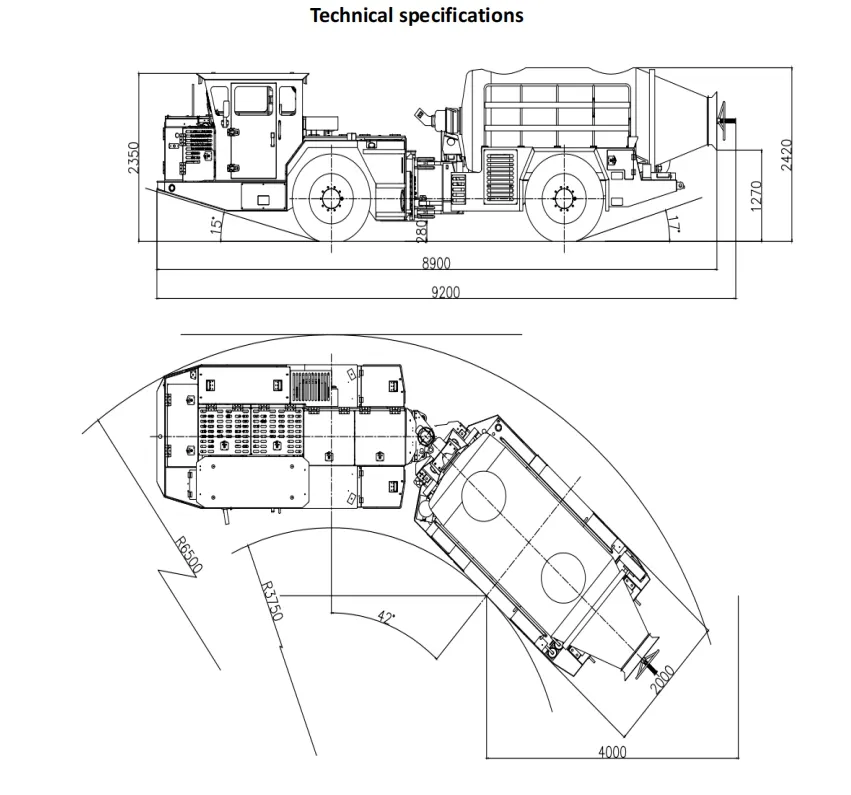

| Dimensions | 9200 mm x 2000mm x 2450mm |
| Engine & Drive System | |
| Engine Type | German Made Deutz TCD4.1 water-cooled |
| Rated Power | 115kW / 2300 r/min |
| Transmission | USA DANA R36420 |
| Braking System | Wet multi disc brake; Spring brake hydraulic release |
Leading Industry Expertise: Continuous technological innovation to meet global mining operation needs.
Customized Engineering: Tailor-made engineering services for unique mining challenges.
Advanced Manufacturing: State-of-the-art facilities with strict quality control standards.
Sustainable & Safe: Balancing performance and safety for long-term success.
