Vmax 2ton 3ton Electric Forklift Truck – Lithium Power, 5m Lift Height & Zero Emissions for Indoor Logistics

1 / 5

Vmax 2ton 3ton Electric Forklift Truck – Lithium Power, 5m Lift Height & Zero Emissions for Indoor Logistics

Customization:	Available
After-sales Service:	1 Years
Warranty:	1 Years

Send Inquiry

Product Description

Basic Specifications

Model NO.

FB30

Type

Electric Forklift

Power

AC Motor

Load Capacity

1T - 5T

Fuel

Electric

Load Center

500mm

Lift Height

3000~5000mm

Mast

2 Stage/3 Stage

Color

Customer Demanded

Production Capacity

10000PCS/Month

Packaging & Delivery

Package Size

261.50cm * 123.00cm * 215.00cm

Gross Weight

5060.000kg

Product Description

The working principle of the electric / battery forklift truck is to drive the motor through the battery power supply, enabling precise movement for handling and stacking goods.

Environmentally Friendly: By using electricity instead of traditional fuel, these trucks significantly reduce tailpipe emissions and noise pollution in the workplace.

Low Maintenance Cost: Without complex fuel systems or internal combustion engines, the frequency and cost of repairs are greatly reduced, improving operational safety and energy efficiency.

Technical Parameters

Item	Specification	Unit	FB20	FB25	FB30	FB35
1	Controller Type	-	ZAPI AC / CURTIS AC+DC
2	Rated capacity	kg	2000	2500	3000	3500
3	Load centre	mm	500	500	500	500
4	Lift height	mm	3000	3000	3000	3000
5	Overall Width	mm	1150	1150	1230	1230
6	Turning radius	mm	2080	2100	2280	2335
7	Travel Speed (Laden)	km/h	12	12	12	12
8	Battery Standard	V/Ah	48/600	48/600	80/500	80/500

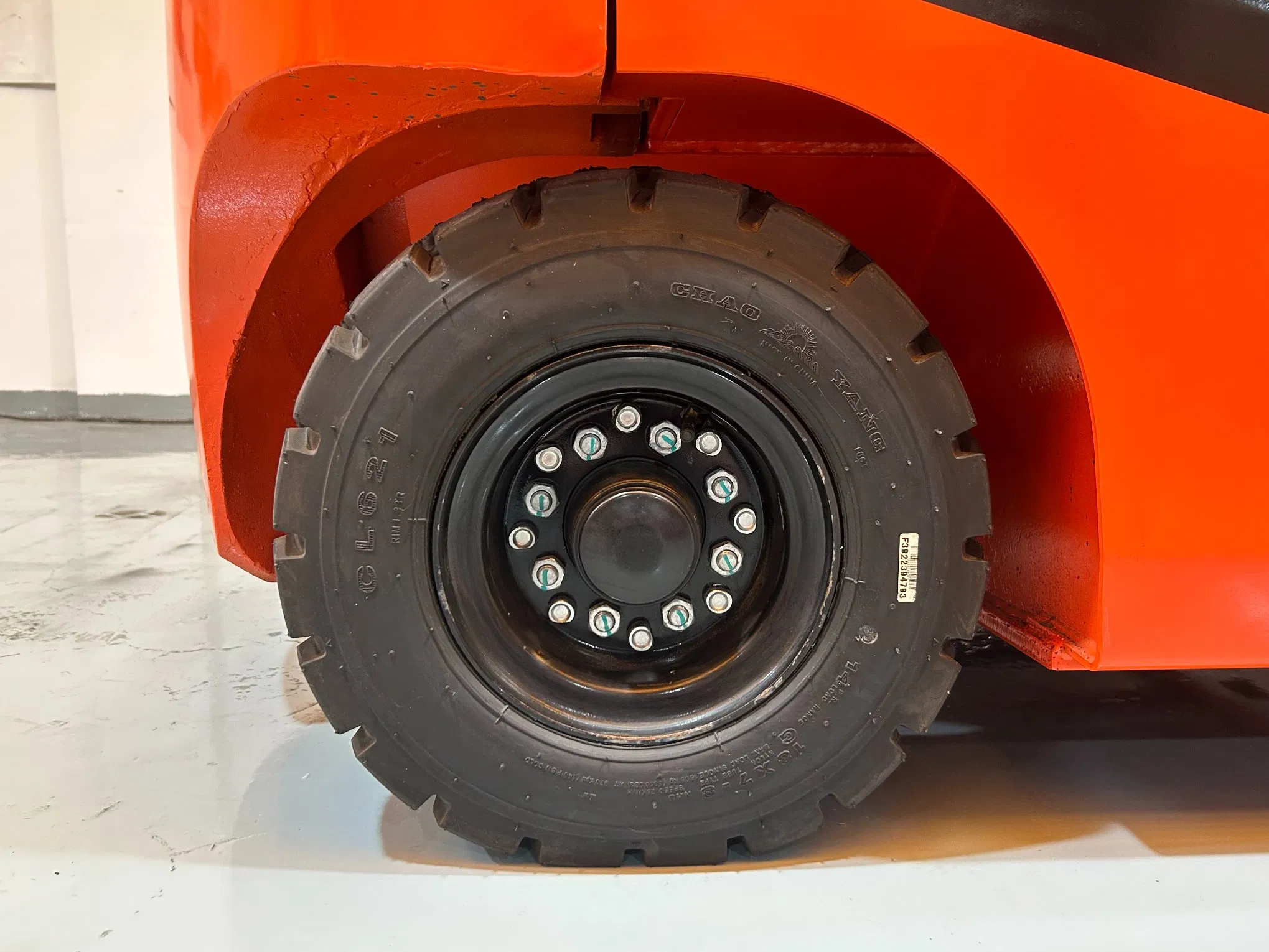

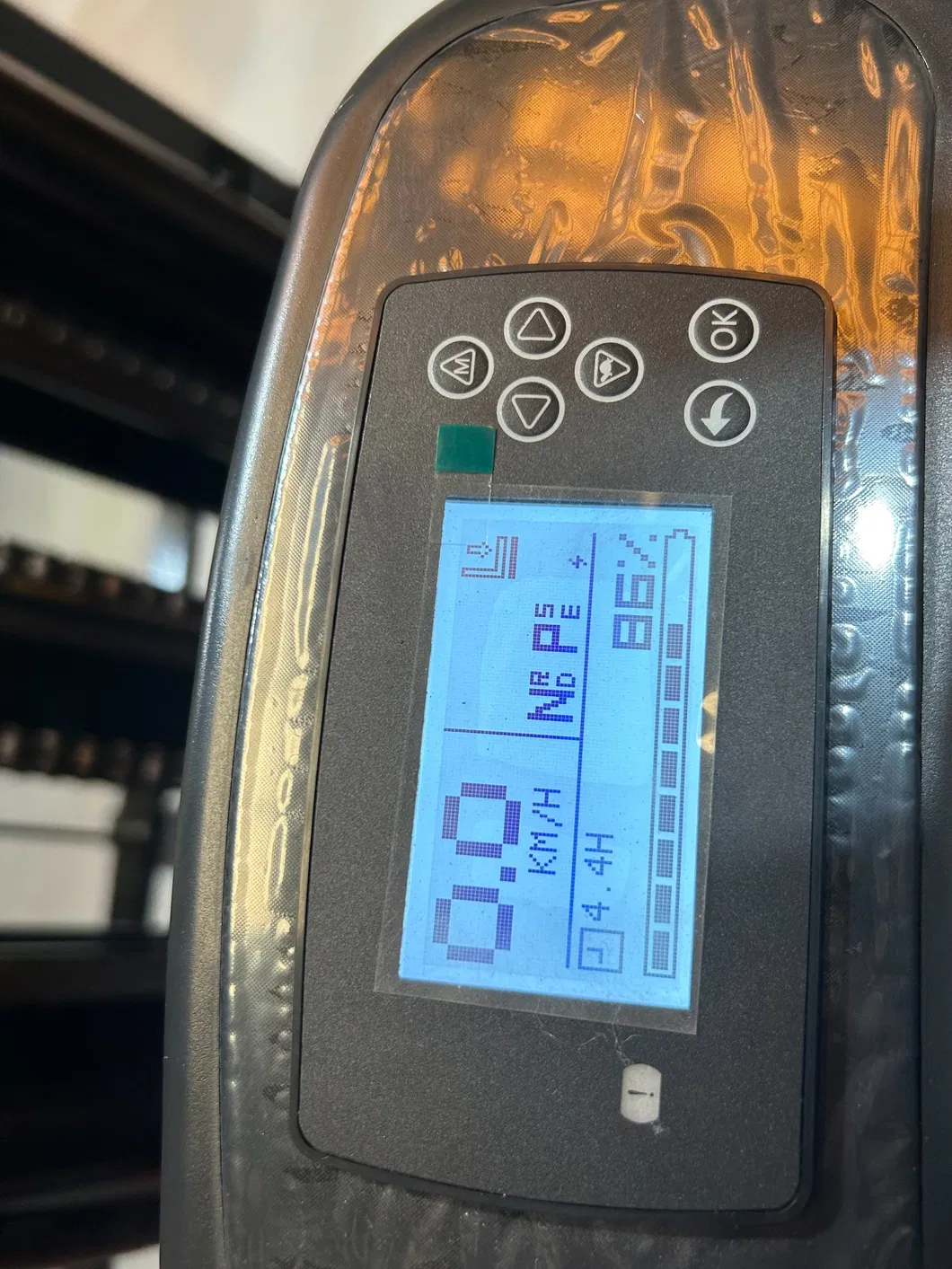

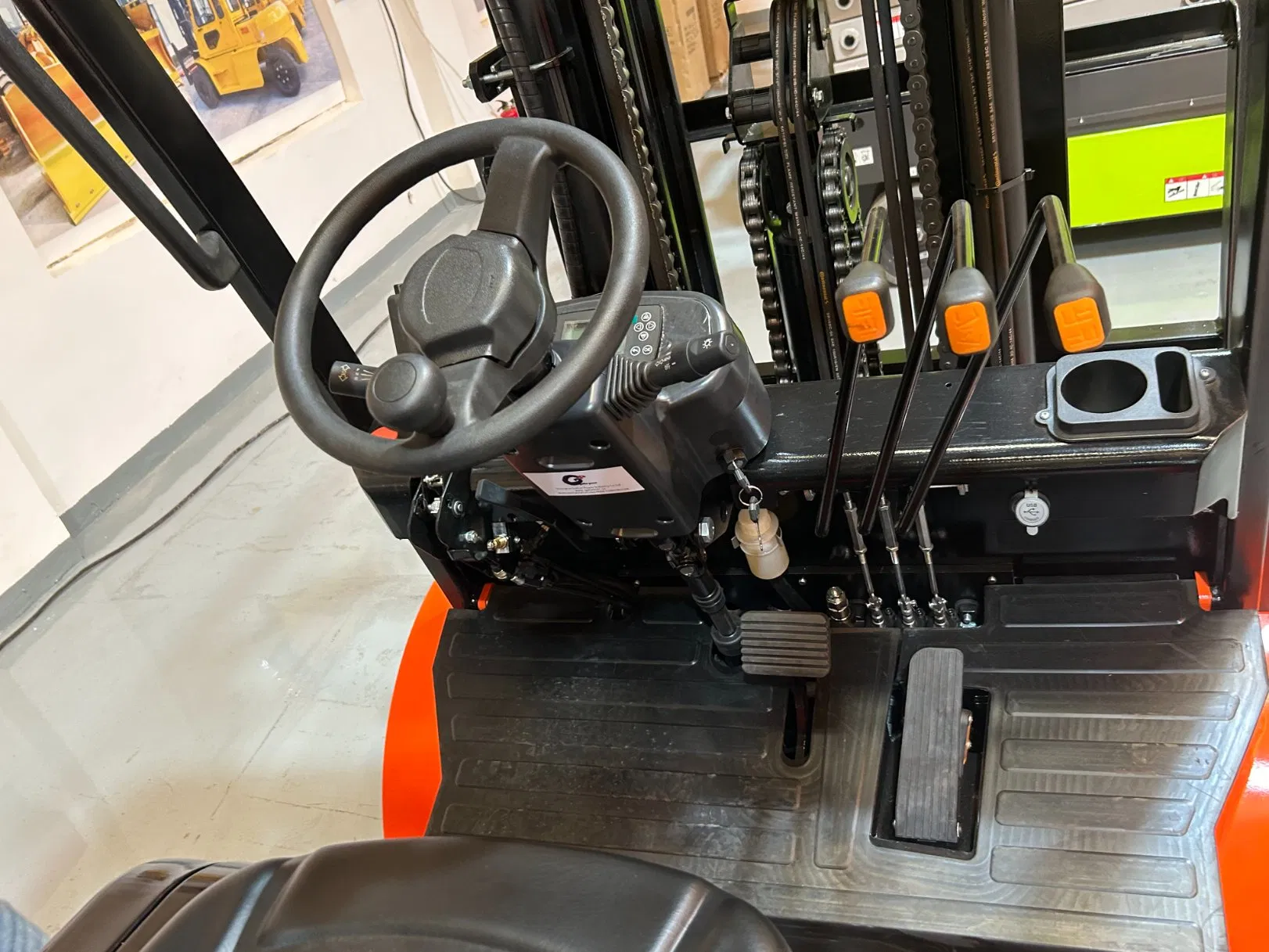

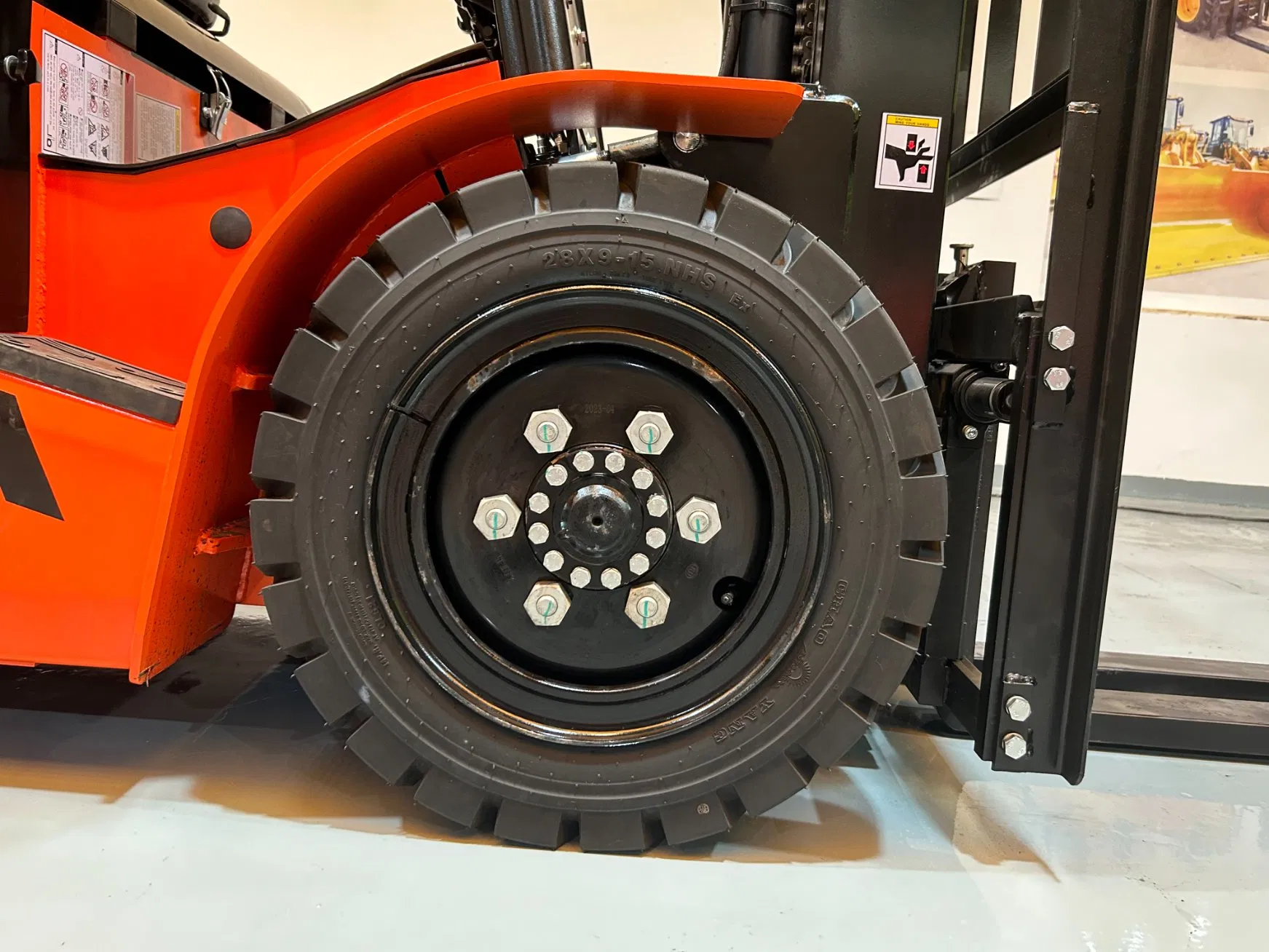

Detailed Photos

Frequently Asked Questions

What are the primary benefits of using an electric forklift?

Electric forklifts are eco-friendly with zero emissions, operate quietly, and have lower maintenance costs due to the absence of internal combustion engines and fuel systems.

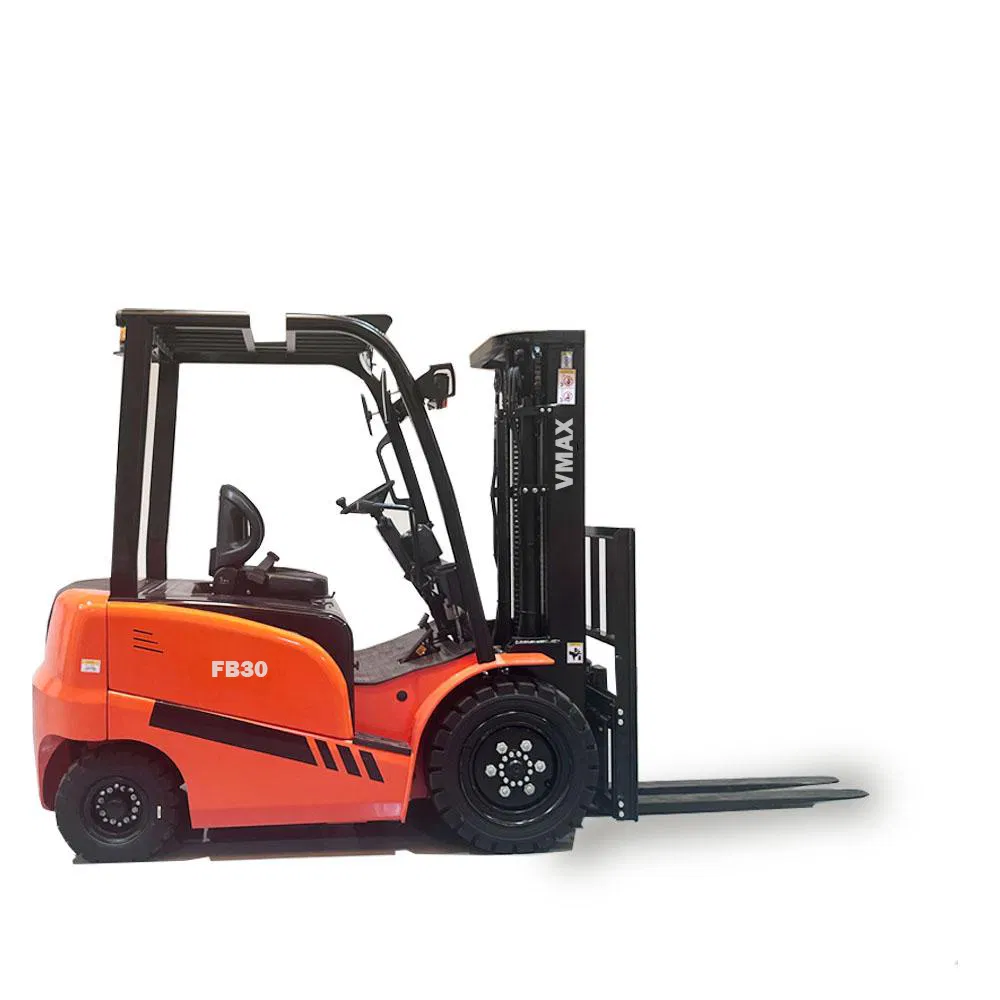

What is the lifting capacity of the FB30 model?

The FB30 model typically features a rated load capacity of 3000kg (3 Tons), suitable for a wide range of industrial handling tasks.

Can the lift height be customized?

Yes, we offer various mast options including 2-stage and 3-stage masts, providing lift heights ranging from 3000mm up to 5000mm based on your requirements.

How long does the battery last on a single charge?

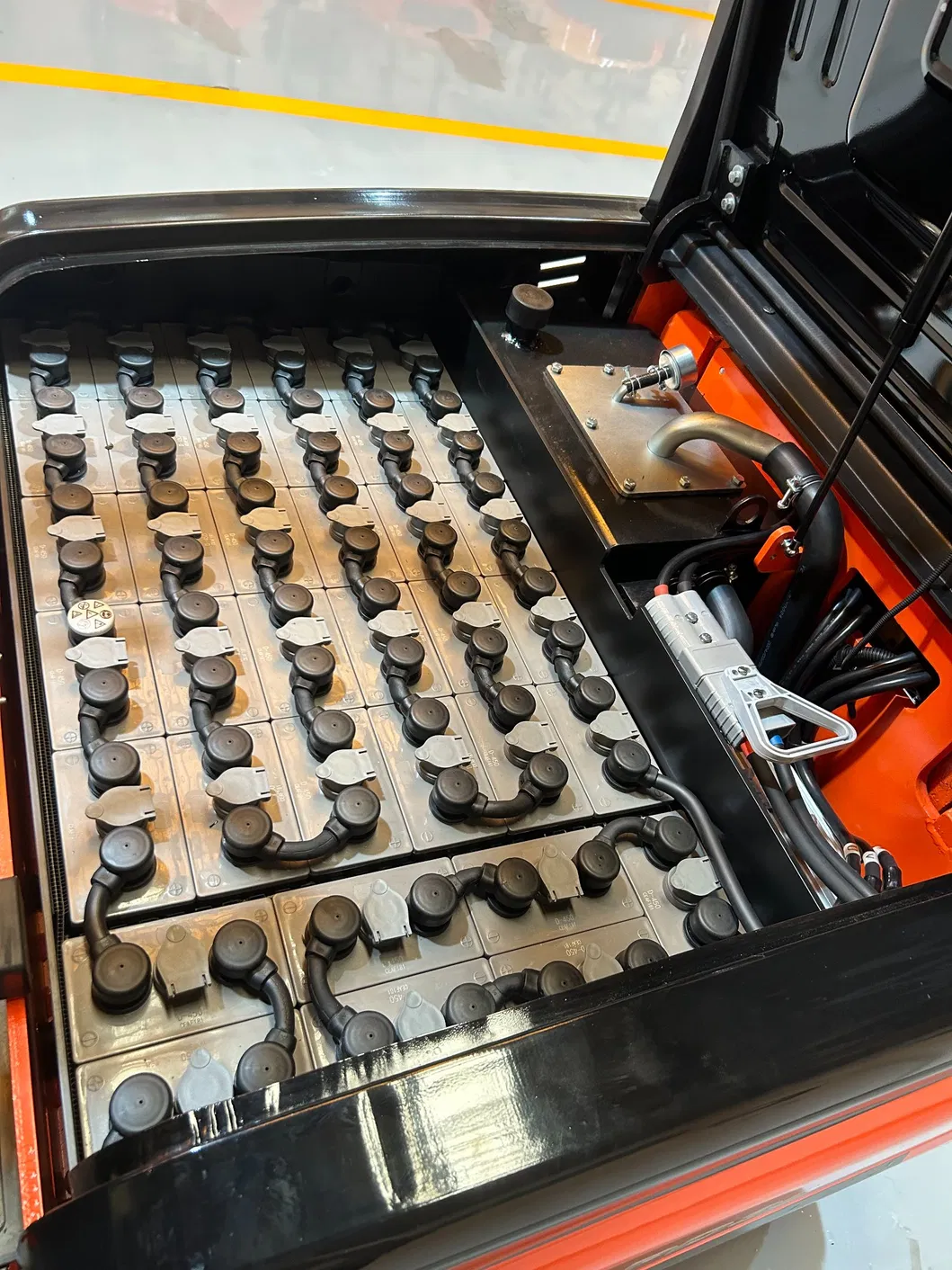

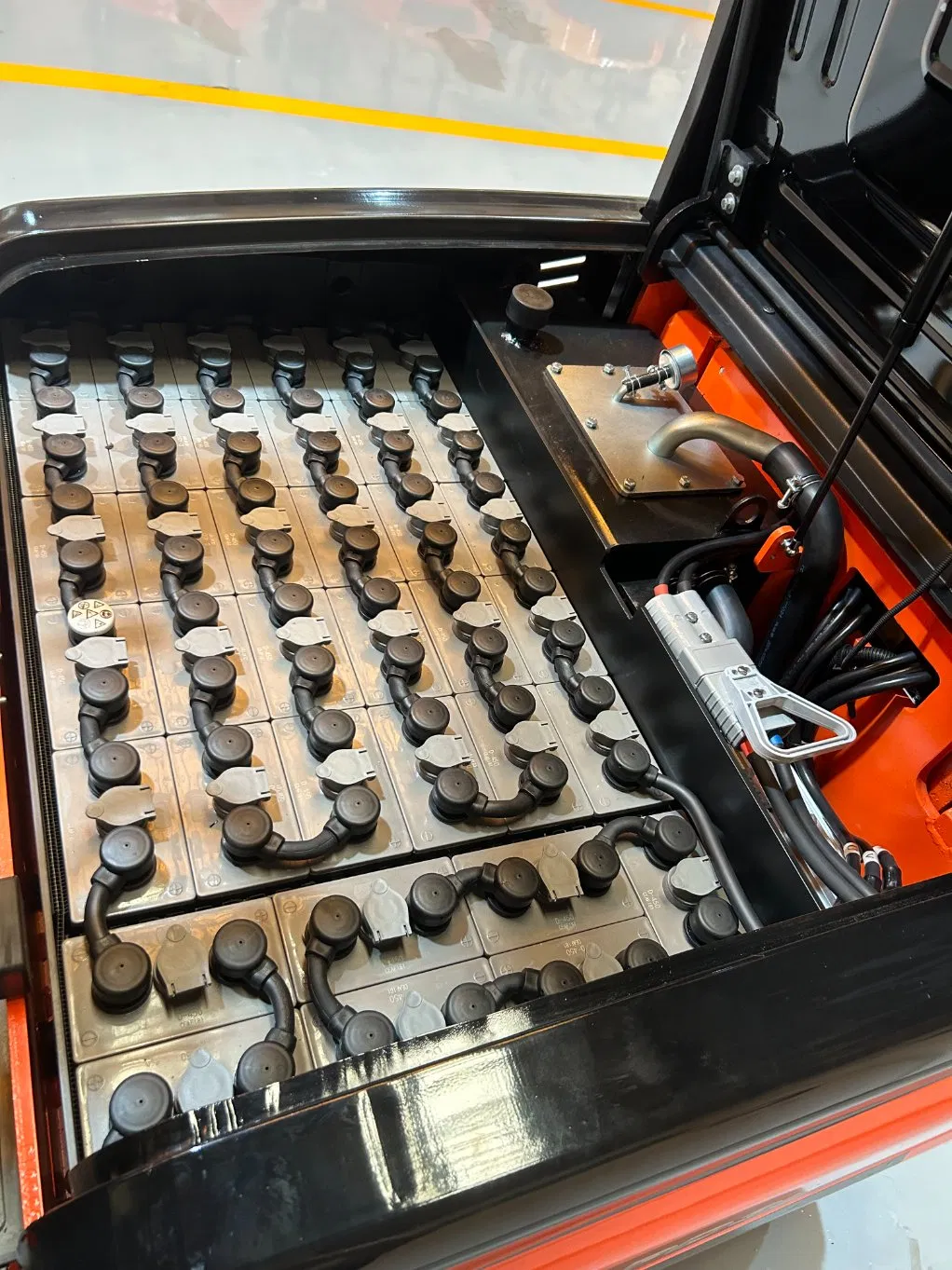

Battery performance depends on the Ampere-hour (Ah) rating chosen (e.g., 48V/600Ah or 80V/500Ah) and the intensity of the work cycle. High-efficiency AC motors help extend operational time.

Is the forklift suitable for indoor logistics?

Absolutely. Due to their zero emissions and low noise levels, electric forklifts are the ideal choice for indoor warehouses, food processing, and pharmaceutical environments.

What type of controller is used in these forklifts?

Our electric forklifts are equipped with world-class controllers such as ZAPI AC or CURTIS AC+DC systems to ensure precise handling and reliable performance.
