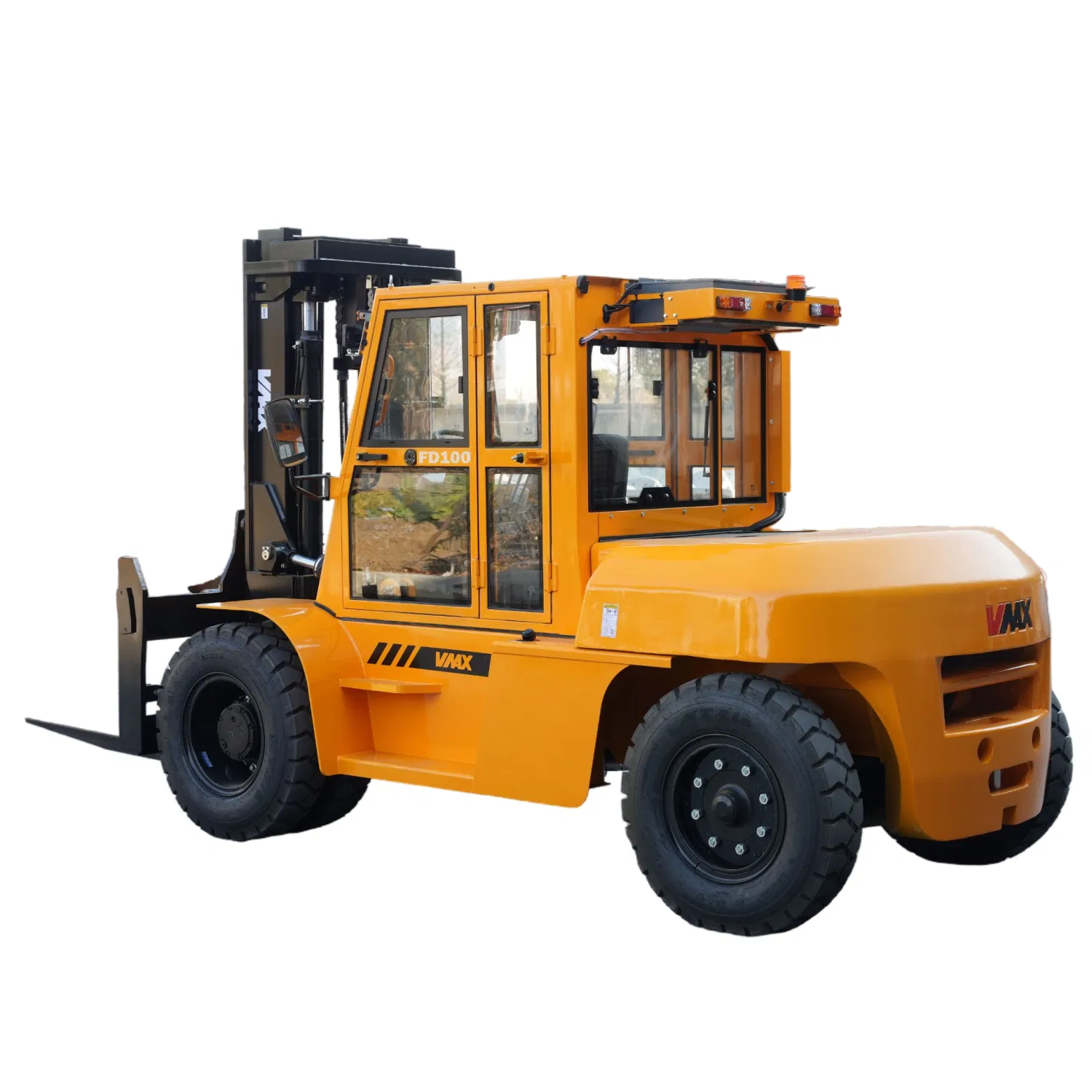

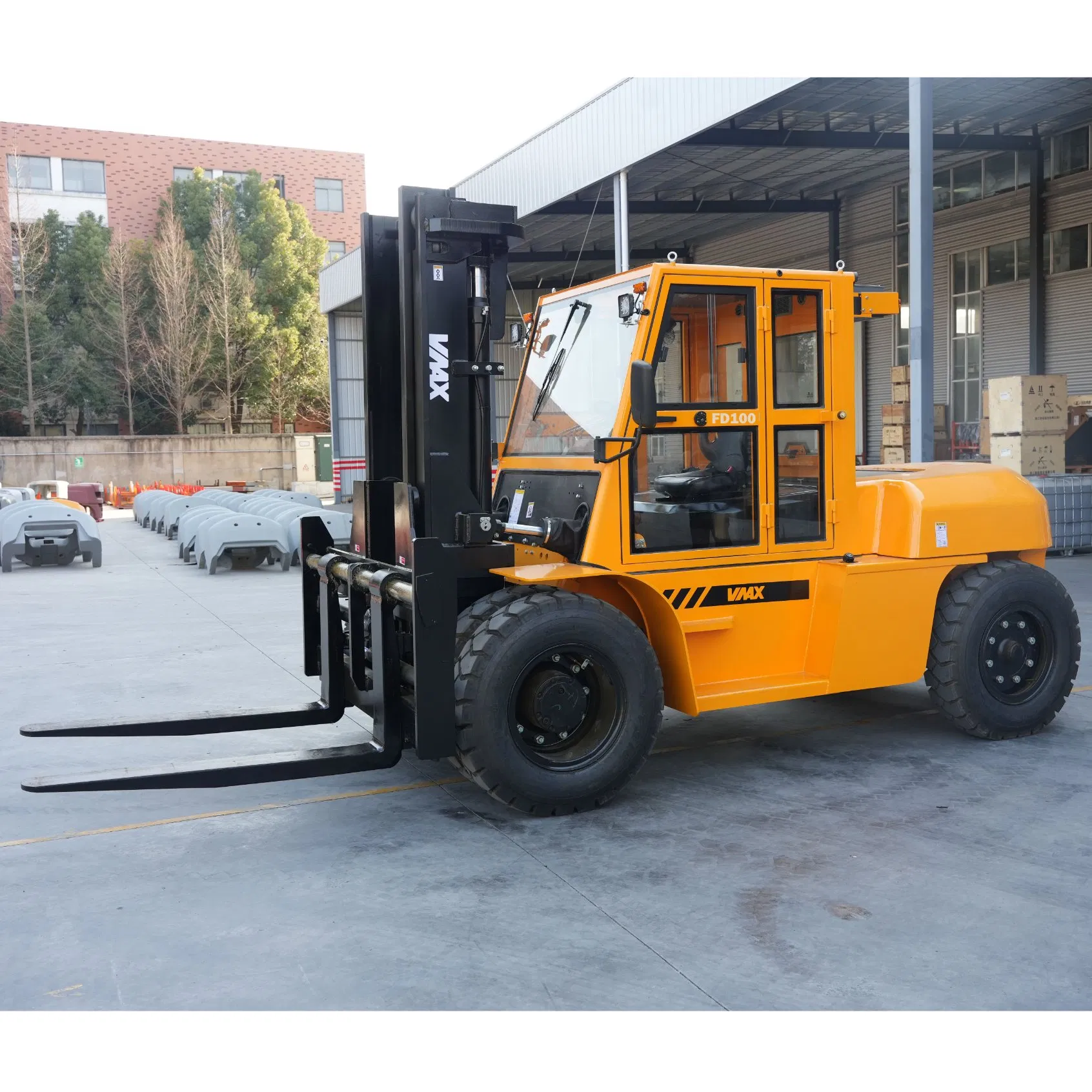

Conquer Extreme Loads with Our 7ton 8ton 9ton 10ton Diesel Forklift Truck Monster - Industrial Strength Meets Precision Handling

Customization:	Available
After-sales Service:	1 Years
Warranty:	1 Years

Send Inquiry

Product Description

Basic Specifications

Model NO.

FD100

Type

Diesel Forklift

Power

Diesel Engine

Load Capacity

5T - 10T

Fuel

Diesel

Load center

500mm

Lift height

3000~5000mm

Condition

New

Mast

2 Stage/3 Stage

Feature

Easy Operation Safety Convenience

Color

Customer Demanded

Advantage

Low Consumption High Efficiency

Production Capacity

10000PCS/Month

Product Overview

Broad Application: Widely used in ports, stations, airports, freight yards, factory workshops, warehouses, and distribution centers. Ideal for loading and unloading pallet cargo in cabins, carriages, and containers.
Continuous Operation: Designed for outdoor use and harsh environments (including rainy days). High fuel efficiency allows for long-term continuous work without frequent interruptions.

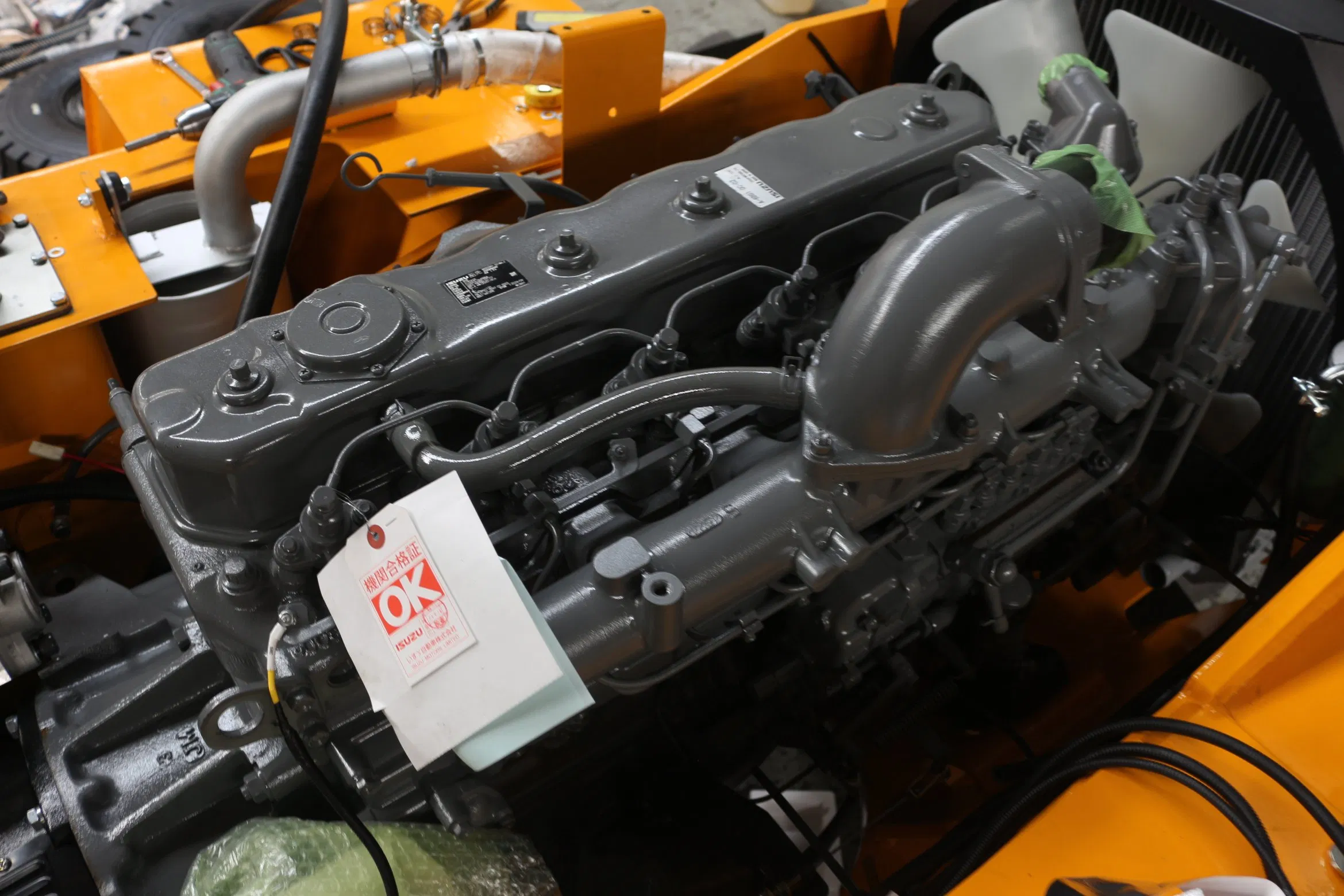

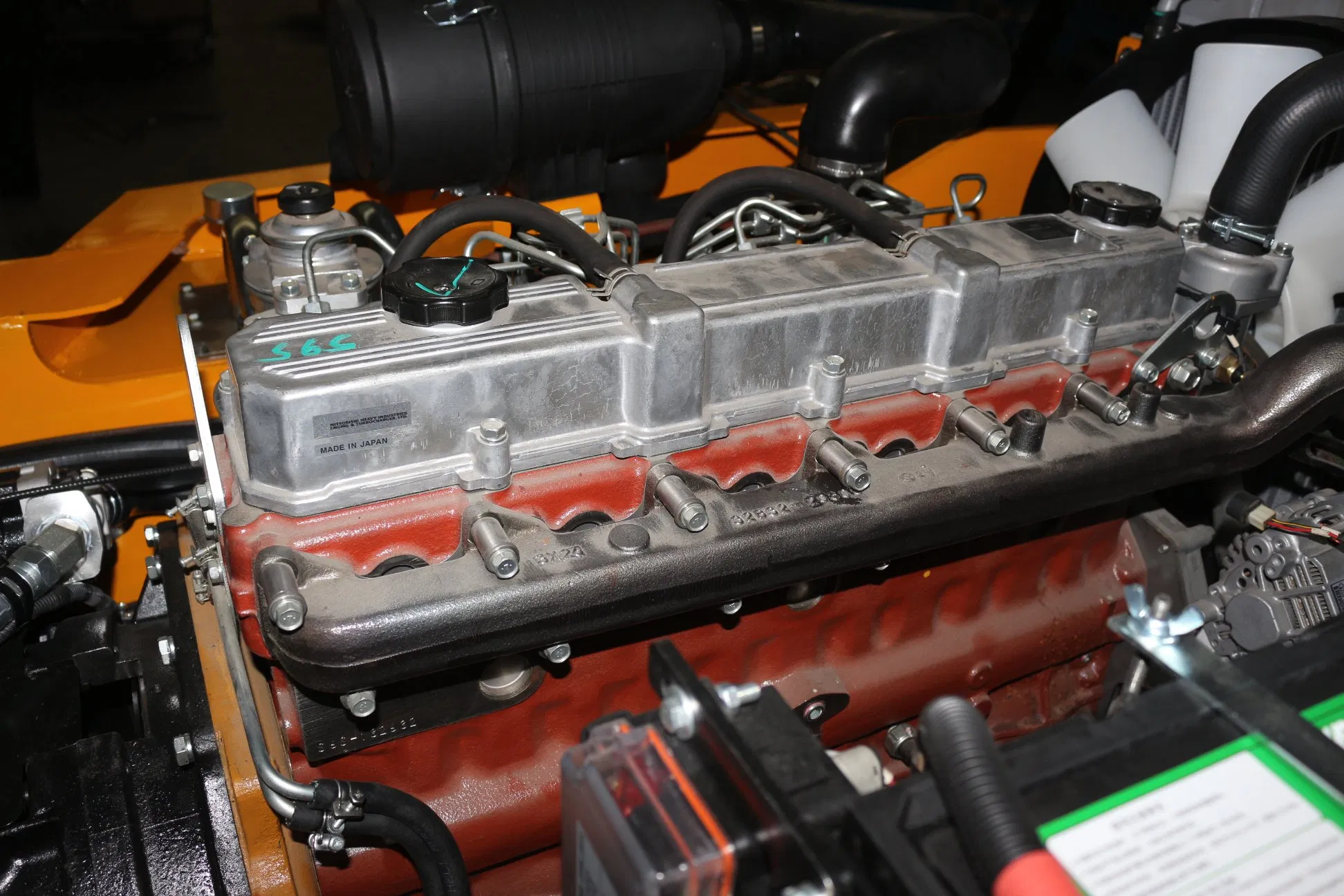

Robust Performance: Built on a reliable diesel engine principle. Features strong power, economic practicality, and exceptional durability for heavy-duty industrial tasks.

Technical Data Sheet

Item	General	Basic Model		Unit	FD80	FD100
1	General	Power type		-	Diesel
2		Rated capacity		kg	8000	10000
3		Load centre		mm	600
4	Dimension	Lift height		mm	3000
5		Free lift height		mm	200	210
6		Fork size	LxWxT	mm	1220x170x70	1220x175x80
7		Fork range	Min./Max.	mm	340/1970	435/2100
8		Mast tilt angle	F/R	Deg	6°/12°
12	Overall	Length (without fork)	-	mm	3958	4260
13		Overall width	-	mm	2165	2248
14		Mast lowered height	-	mm	2700	2850
19	Performance	Travel Speed (Unladen)	-	km/h	26/28
20		Lifting Speed (Laden)	-	mm/s	380	310
23		Max. Gradeability (Laden)		%	21	20
29	Weight	Self weight		kg	10960	12560

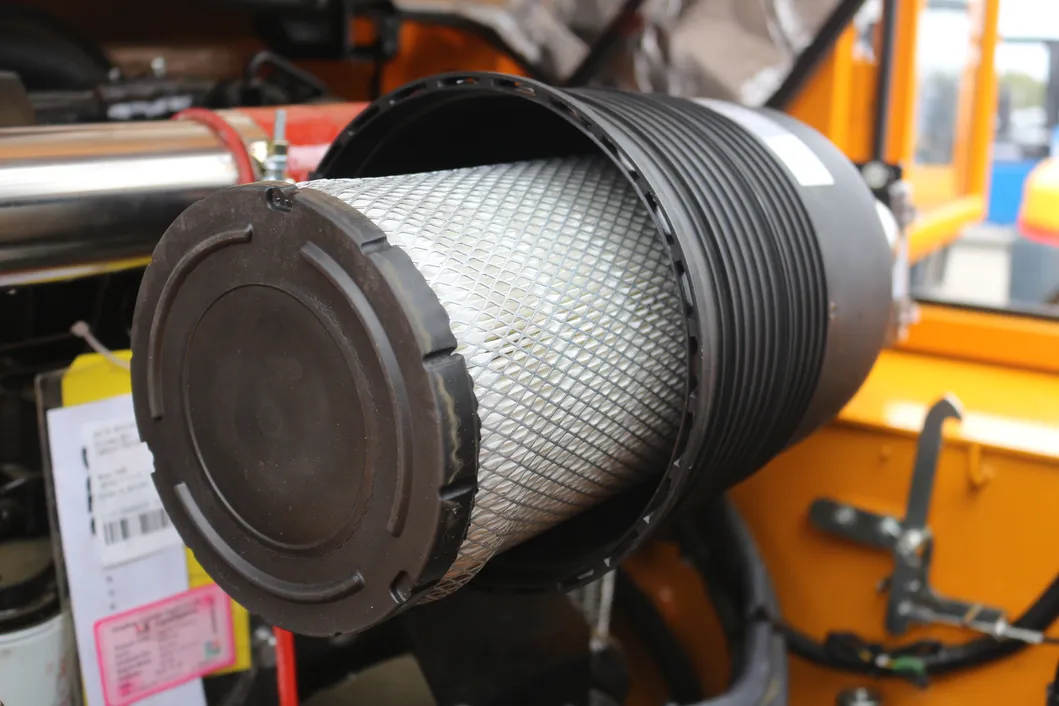

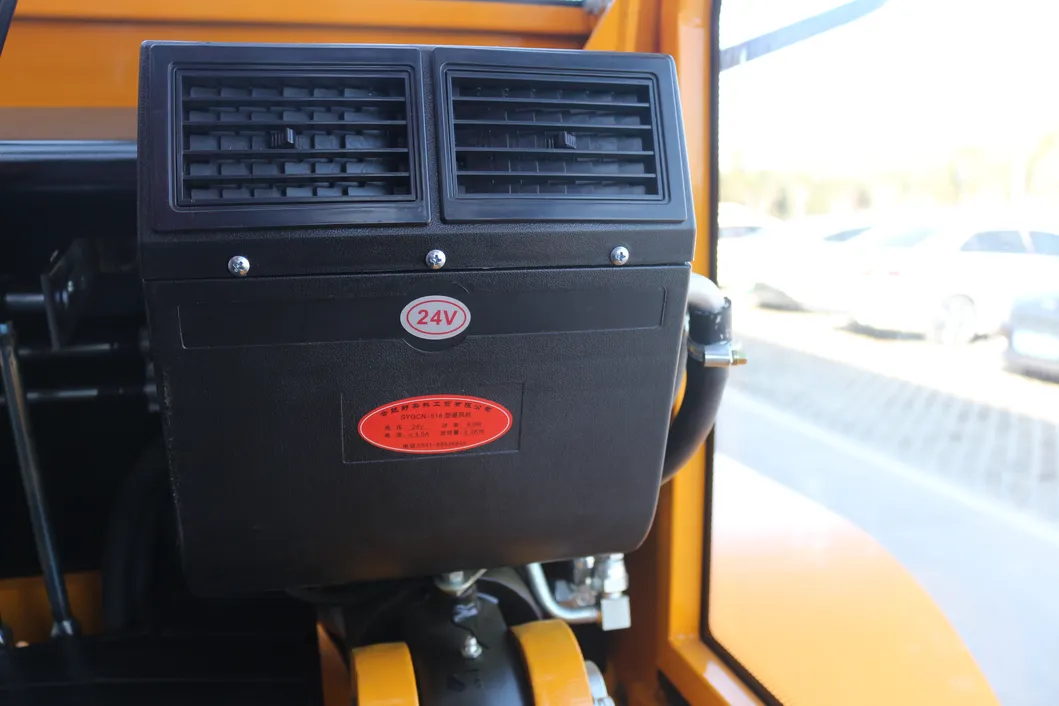

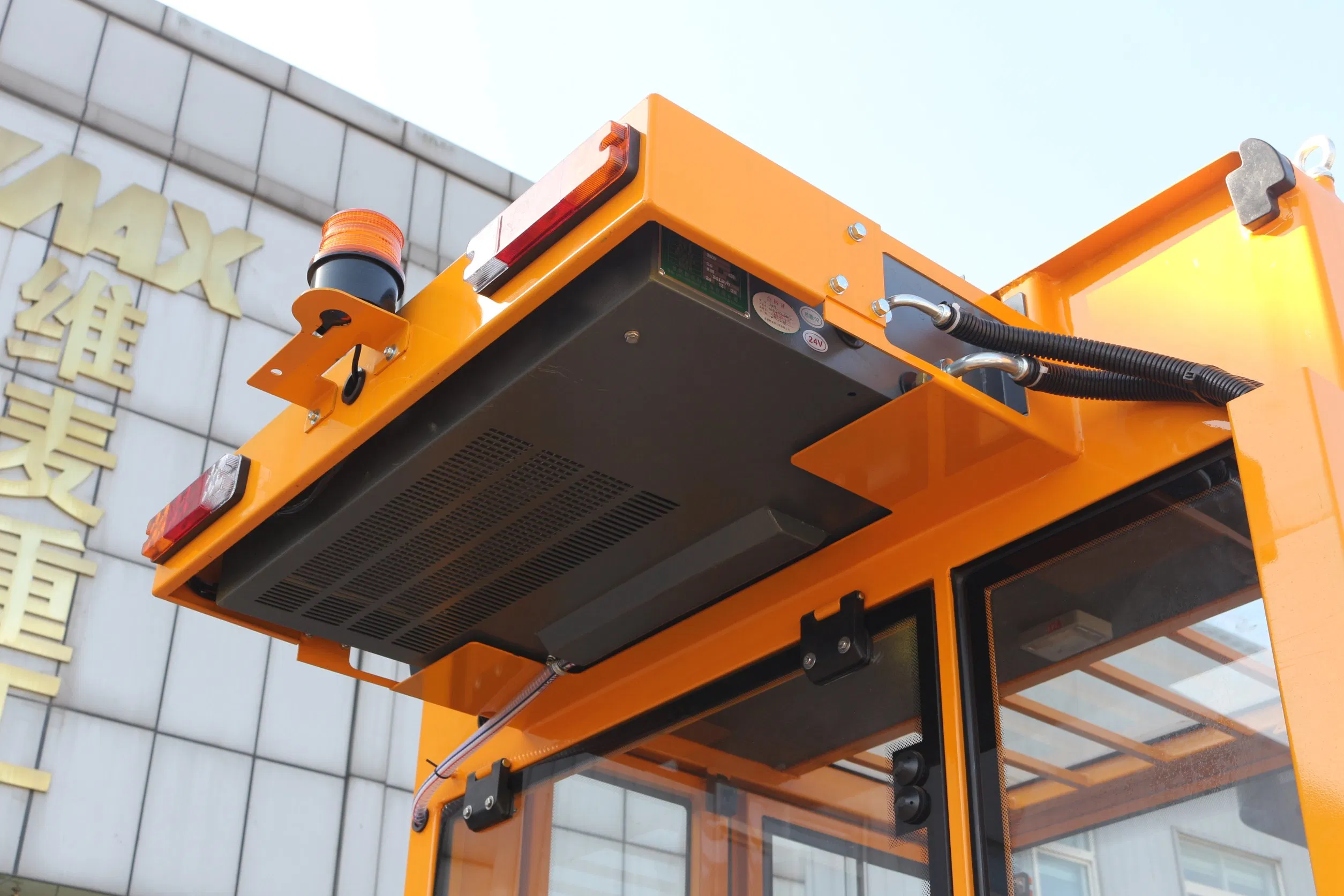

Product Images

Frequently Asked Questions

What are the primary applications for this diesel forklift?

These forklifts are versatile and widely used in ports, airports, warehouses, and distribution centers for pallet loading, unloading, and heavy cargo handling.

Can these forklifts be used in outdoor conditions?

Yes, diesel forklift trucks are specifically designed for outdoor environments and can operate reliably even in harsh conditions such as rainy weather.

What is the lifting capacity of the FD series?

The series covers a wide range of load capacities, typically from 5 tons up to 10 tons, depending on the specific model selected.

What mast options are available?

We provide multiple mast configurations, including 2-stage and 3-stage masts, to accommodate different lifting height requirements ranging from 3000mm to 5000mm.

Is the color of the forklift customizable?

Yes, the color of the forklift can be customized based on the specific demands or branding requirements of the customer.

What makes diesel forklifts more advantageous than electric ones for heavy duty?

Diesel forklifts offer stronger power, the convenience of quick refueling for continuous 24/7 operation, and higher durability in rough outdoor terrains.
