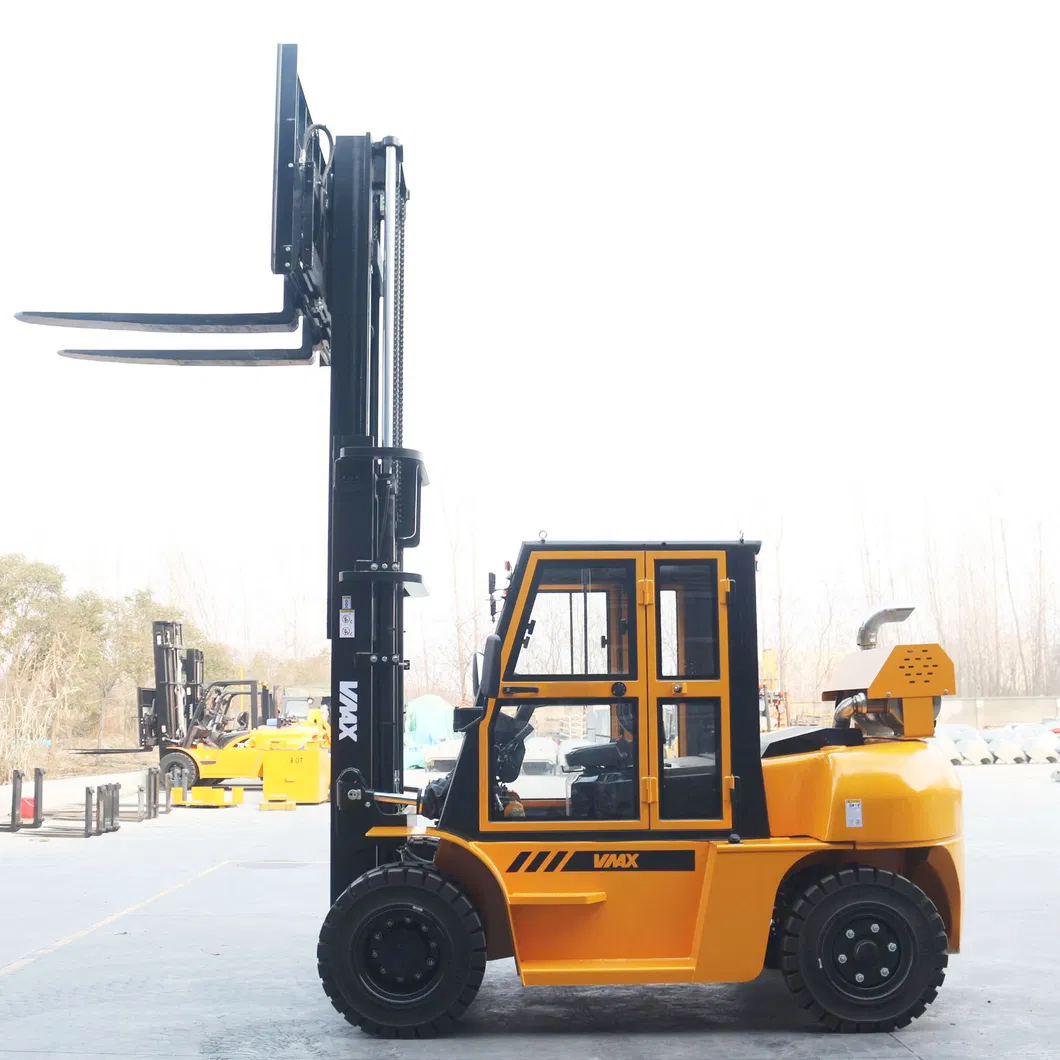

1. Versatile Operations: Diesel Forklift Trucks are widely utilized in ports, stations, airports, freight yards, and factory workshops. They are designed for high-efficiency loading, unloading, and handling operations, making them essential for container and pallet transportation.
2. Built for Harsh Environments: Ideally suited for outdoor use, these trucks can operate continuously for long durations due to convenient fuel replenishment. They are engineered to perform reliably in demanding conditions, including rain and high-intensity shifts.

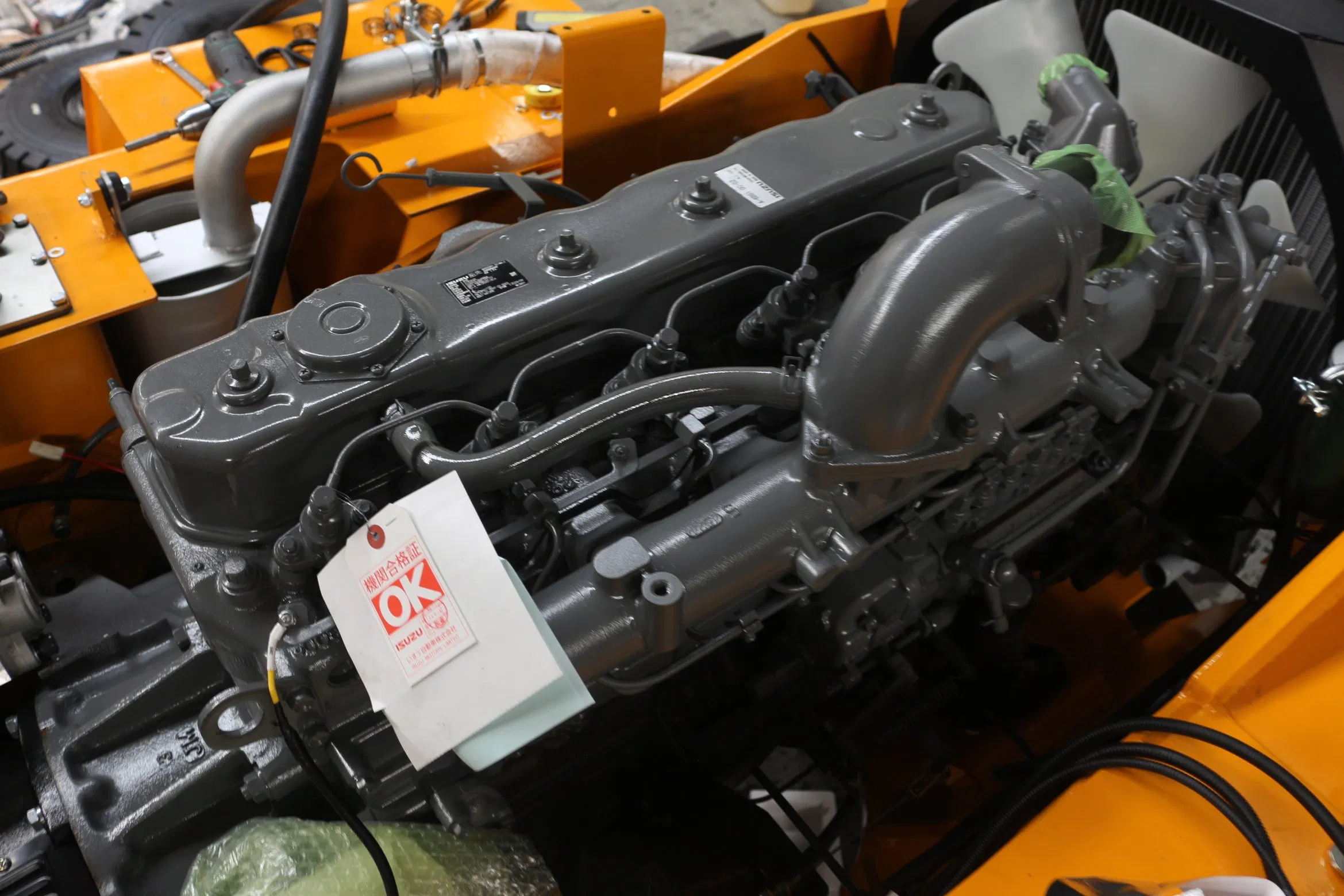

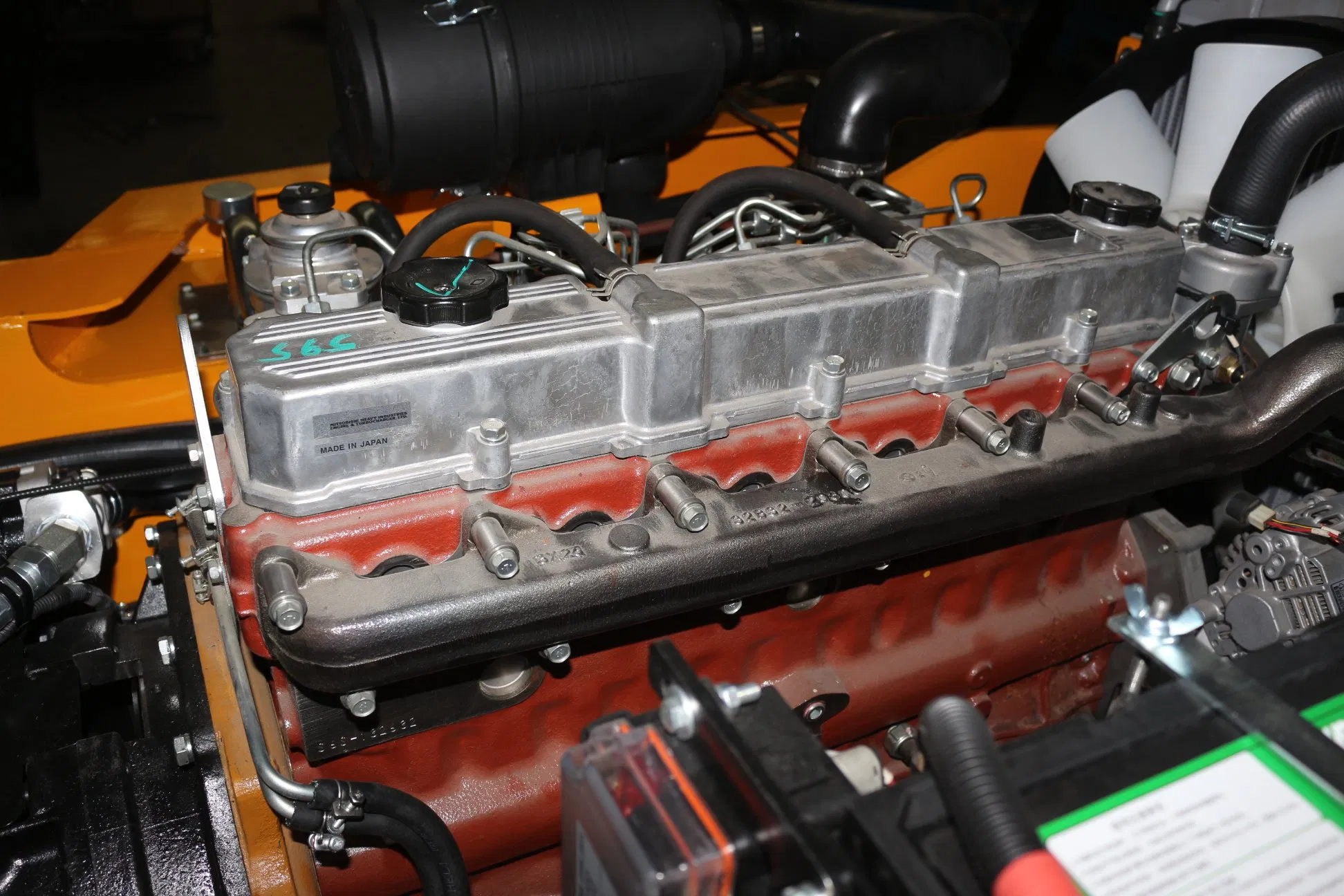

3. Robust Performance: Operating on a powerful diesel engine principle, the system delivers exceptional drawbar pull and lifting capacity. It combines high durability with economic practicality for industrial applications.
| Item | Characteristics | Unit | FD50 | FD60 | FD70 |
|---|---|---|---|---|---|
| 1 | Power type | - | Diesel | ||
| 2 | Rated capacity | kg | 5000 | 6000 | 7000 |
| 3 | Load centre | mm | 600 | ||
| 4 | Lift height | mm | 3000 | ||
| 5 | Free lift height | mm | 195 | 200 | 205 |
| 6 | Fork size (LxWxT) | mm | 1220x150x55 | 1220x150x60 | 1220x150x65 |
| 7 | Mast tilt angle (F/R) | deg | 6°/12° | ||
| 8 | Overall Length (to fork face) | mm | 3440 | 3515 | 3580 |
| 9 | Overall width | mm | 1995 | ||
| 10 | Mast lowered height | mm | 2500 | 2500 | 2625 |
| 11 | Travel Speed (Unladen) | km/h | 26/28 | ||
| 12 | Self weight | kg | 8080 | 8740 | 9450 |
