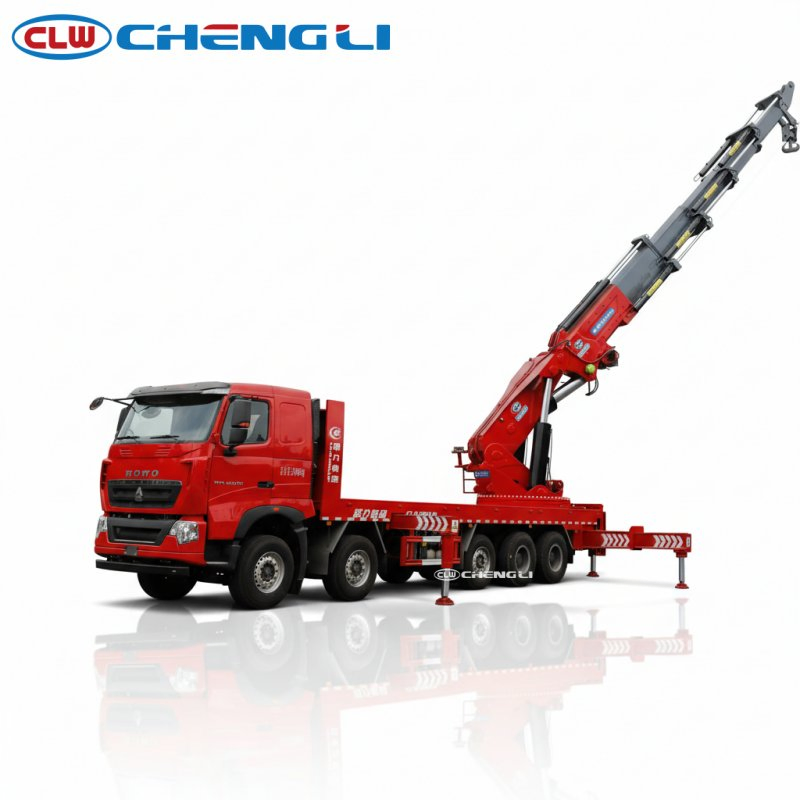

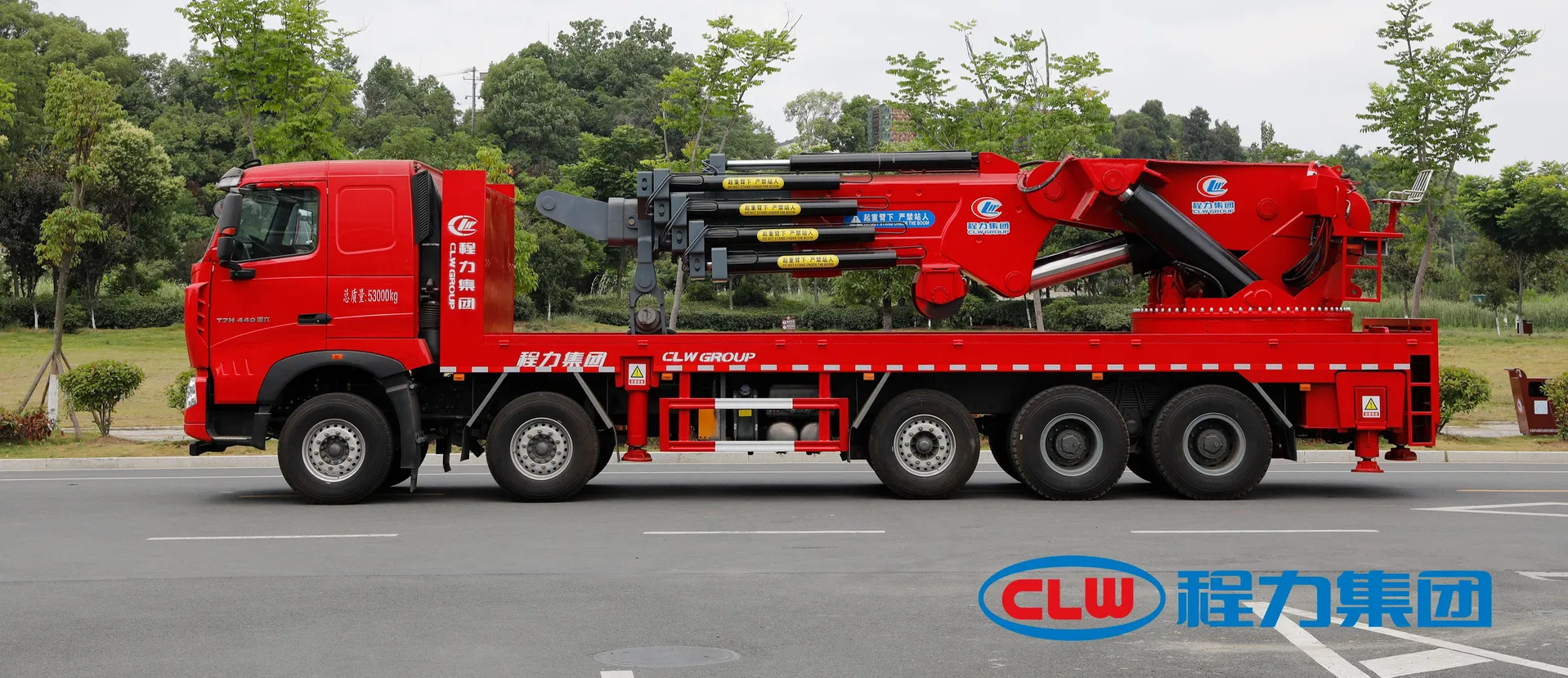

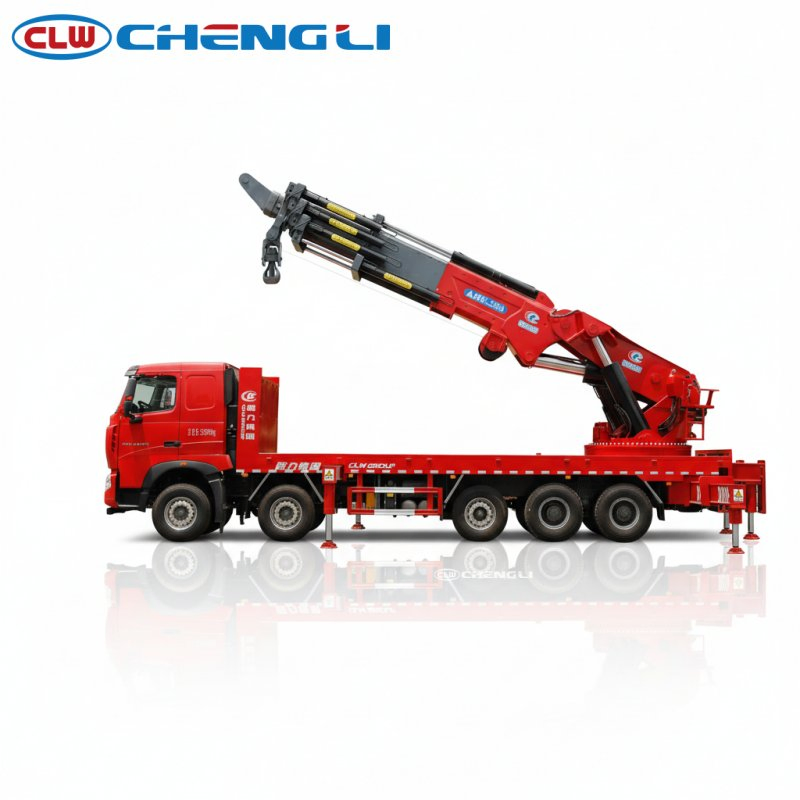

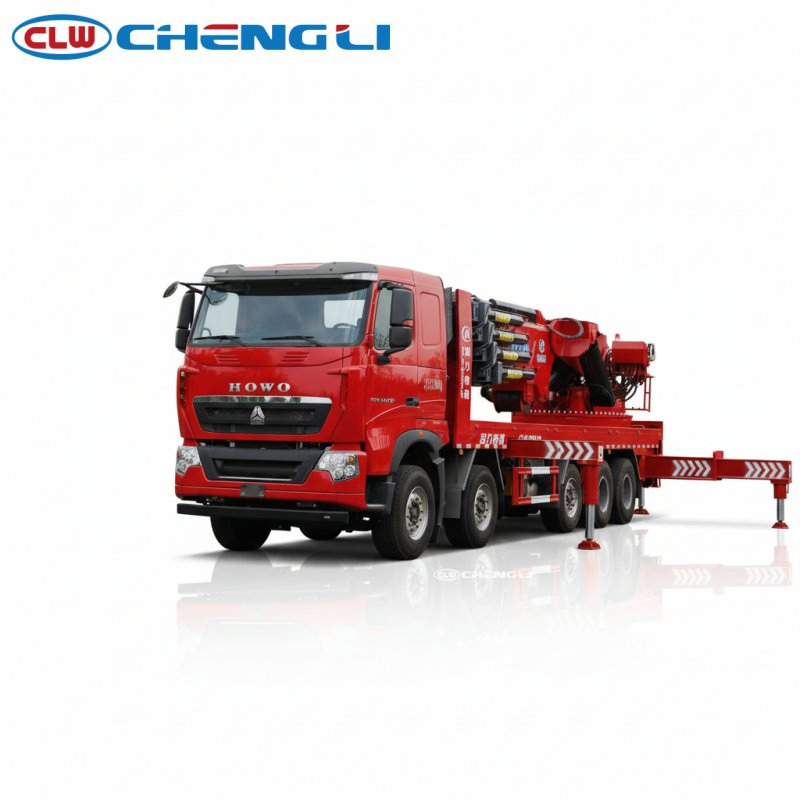

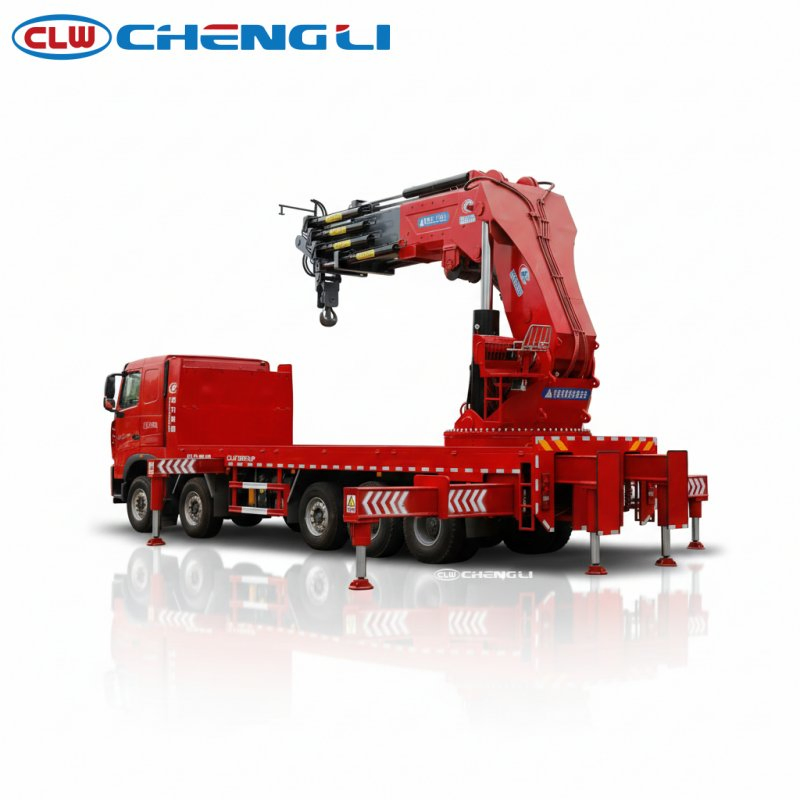

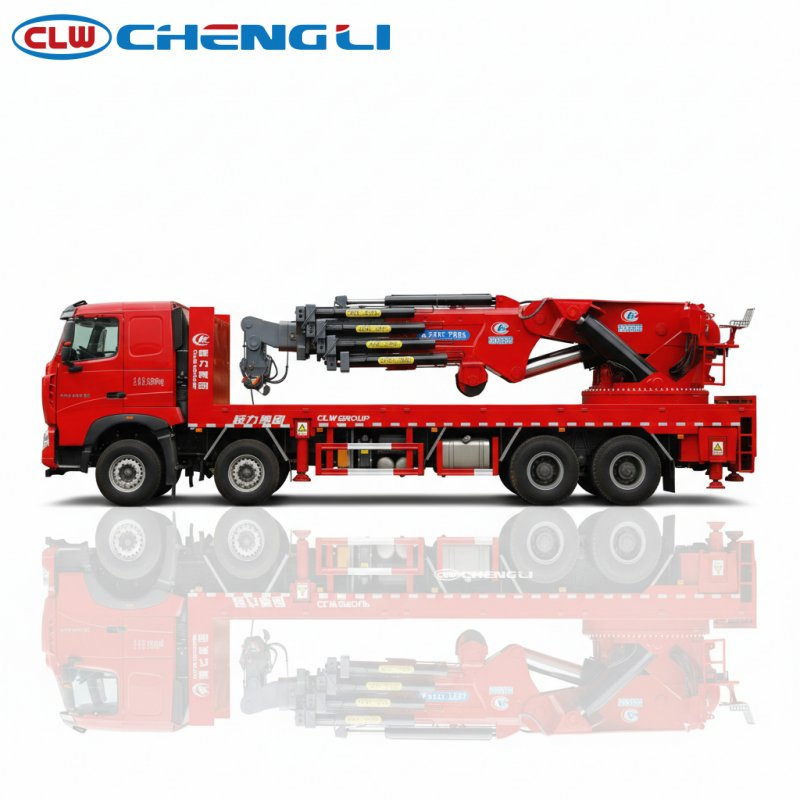

The 8x4 boom truck is a powerful and intelligent 100 Tons truck-mounted crane, designed for demanding hoisting and cargo transport duties. Built on a reliable chassis, it features a robust 100-ton crane for precision lifting and a spacious flatbed for material delivery. Its core advantage lies in its four-axle configuration (8x4), providing high-capacity lifting combined with economical over-the-road logistics.
| GENERAL INFORMATION | |
|---|---|
| Model NO. | 100 Tons Crane Truck |
| Fuel | Diesel |
| Certification | ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE |
| Emission Standard | Euro 2/3/4/5/6 |
| GVW | 53,000 Kg |
| Curb Weight | 35,300 Kg |
| Payload | 15,505 Kg |
| Wheelbase | 2100 + 4300 + 1350 mm |

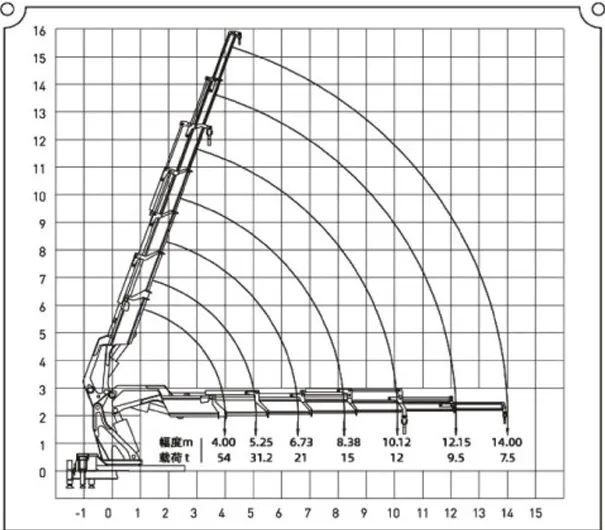

| Max. Lifting Height | 16 M |
| Max. Outreach | 14 M |
| Overall Dimension | 12,000 × 2,550 × 3,990 mm |

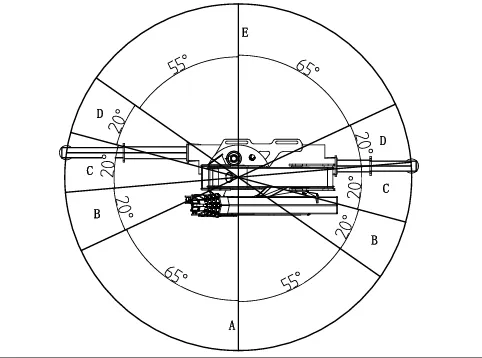

Zone A: 100% lifting performance capacity.
Zone B: 90% lifting performance capacity.
Zone C: 80% lifting performance capacity.
Zone D: 70% lifting performance capacity.
Zone E: 60% lifting performance capacity.
